Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM B151 C70600 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap/Woven Case |
| Delivery Time: | Depends on quantity |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000 tons per month |
| Specification: | ASTM B151 | Grade: | C70600 |
|---|---|---|---|
| Technics: | Forged | Size: | Customized |
| High Light: | Copper Nickel Threaded Forged Fitting,C70600 Threaded Forged Fitting,2.0872 Steel Pipe Fittings |
||

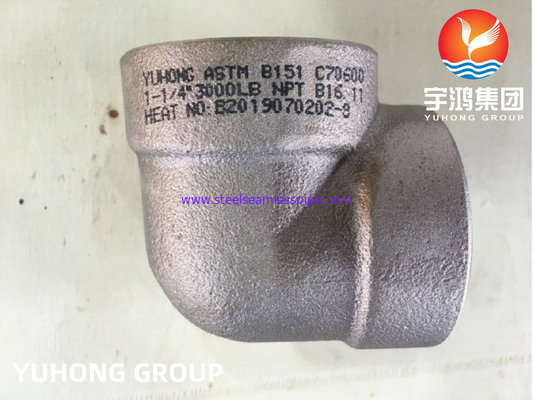

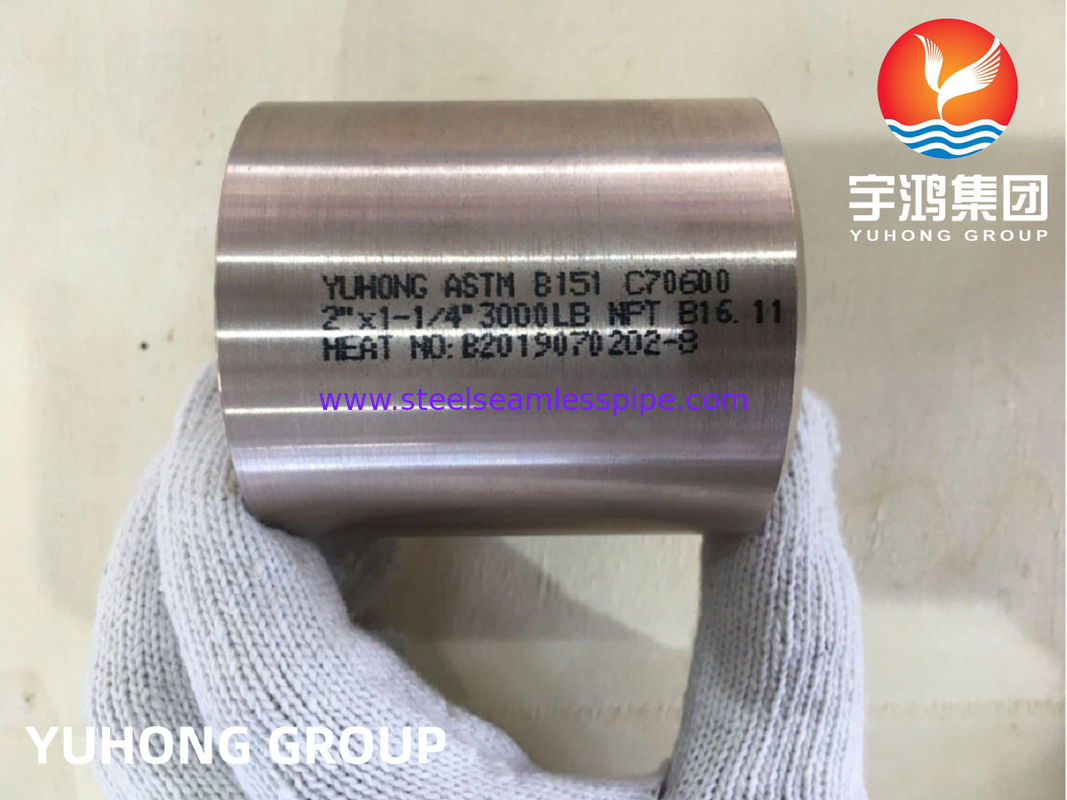

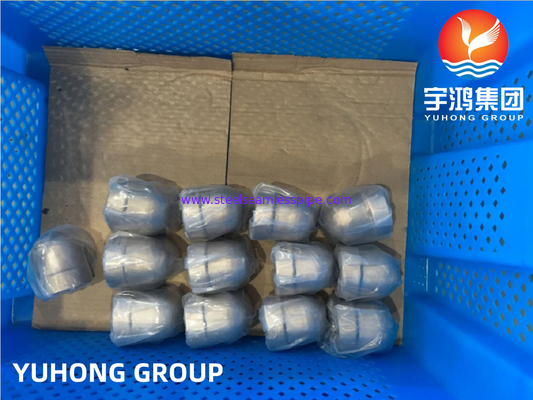

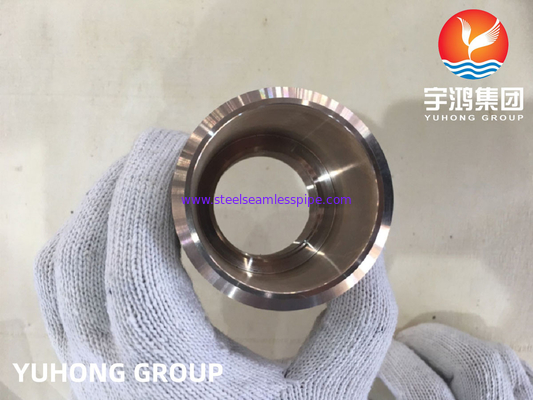

ASTM B151 C70600 Copper Nickel Threaded Forged Fitting B16.11
What is ASTM B151?
This specification establishes the requirements for copper-nickel-zinc and copper-nickel rod and bar for general application produced from Copper Alloy UNS Nos. C70600, C70620, C71500, C71520, C74500, C75200, C75700, C76400, C77000, and C79200.
What is UNS C70600?
UNS C70600 is one type of copper-nickel alloys, which has excellent corrosion resistance even in marine environments. This alloy possesses average high strength and good creep resistance at high temperatures, and costs more in comparison to copper-aluminum alloys and other alloys with similar mechanical properties.
C70600 Copper Nickel 10% Alloy is used in applications where resistance to corrosion and stress cracking is important. C70600 Copper Nickel 10% Alloy is known for its moderate strength, weldability and formability.
C70600 copper-nickel is an alloy of copper, further classified as a copper-nickel (cupronickel). CW352H is the EN numeric designation for this material.
Chemical Composition Of C70600
| Element | Content (%) |
|---|---|
| Cu | 88.7 |
| Fe | 1.3 |
| Ni | 10.0 |
Production & Supply Range of Copper Nickel Alloy 90/10 (C70600, 2.0872) Forged Fittings
| Grades | CU-NI-90/10 (UNS No C70600) |
| Specifications | ASTM B122, B171, B466, B467, B151 |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Size | 1/8" NB to 4" NB (Socketweld & Screwed - Threaded) |
| Forms | Socketweld Fttings, Screwed - Threaded Fitings |
| Production | Hot - Rolled (HR) / Cold- Rolled (CR) |
| Surface Finish | Pickled, Turned or Ground |
| Application | Chemicals & Fertilizers Indutries, Sugar Mils, Cement Industries, Ship Building, Paper Industries, Oil & Gas, Petrochemicals, etc. |
Chemical Analysis—In cases of disagreement, test methods for chemical analysis shall be subject to agreement between the manufacturer or supplier and the purchaser. The following table is a list of published test methods some of which are considered by ASTM as no longer viable. These, and others not listed, may be used subject to agreement.
Physical Properties of Copper UNS C70600 Forged Fittings
| Properties | Metric | Imperial |
| Density | 8.94 g/cm³ | 0.323 lb/in3 |
UNS C70600 Equivalent
| STANDARD | WERKSTOFF NR. | UNS |
| 90/10 Copper Nickel Flanges | 2.0872 | C70600 |
Copper Nickel Pipe Fittings Mechanical Strength
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Copper Nickel 90-10 | 0.323 lb/in3 at 68 F | 2260 F | 50000 psi | 20000 psi | 30 % |
Applications
Chemicals & Fertilizers Indutries, Sugar Mils, Cement Industries, Ship Building, Paper Industries, Oil & Gas, Petrochemicals, etc.
