| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | API , ABS, DNV, GL , LR, NK. |
| Model Number: | Alloy 600 |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | Depends on quantity |
| Payment Terms: | T/T, L/C AT SIGHT |
| Supply Ability: | 10000 tons per month |
| Product Name: | Stainless Steel BW Elbow | Specification: | ASTM B366 |
|---|---|---|---|
| Dimension Standard: | ASME/ANSI B16.9 | Material: | Alloy 600 |
| O.D.: | 1/2″ To 24″ | W.T.: | Sch5-Sch160,XS,XXS,STD |
| High Light: | Heat Exchanger Concentric Reducer,Alloy 600 Concentric Reducer,B366 Stainless Steel Pipe Fitting |
||

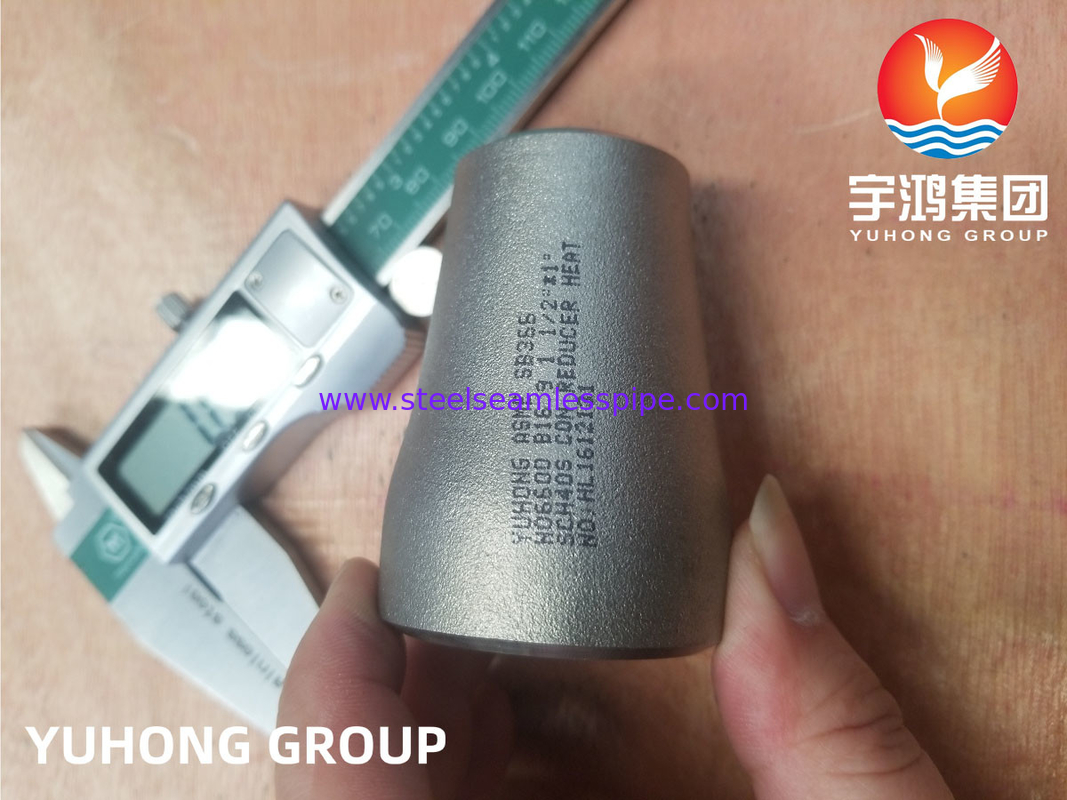

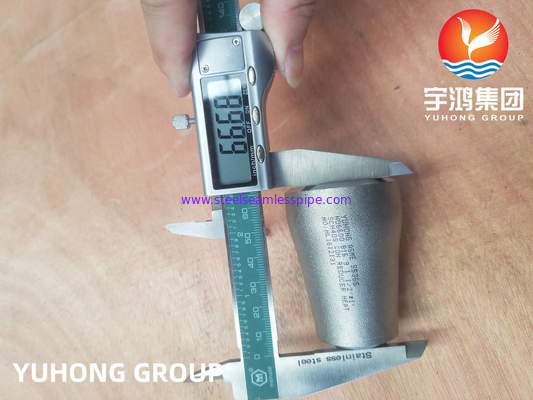

What is Concentric reducer
Concentric reducers is a type of slot machine that connects two tubes of different diameters. Concentric reducers are available in various models, depending on the application of the product, while concentric reducer tubes are manufactured in inches and meters. Concentric reducers and concentric reducers are designed in the following forms - DN (binomial gauge) O.D. (external gauge, end to end gauge 4) Stendrd.GB,HGC,HG.,9 H,SY.DLASME,AN,S JlS and DN When her joints are welded, the side members. In order to ensure the measurement of concentric and eccentric shaped straighteners, it is necessary to measure the outer dam (OD and diameter) and the total dimensions (T1, T2). Nominal pipe sizes are between M/M, from 32 mm to 400 mm. nominal pipe sizes are between inches, from 1%. inches to 16 inches.
ASTM B366 Alloy 600 Concentirc Reducer Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Alloy 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
ASTM B366 Alloy 600 Concentirc Reducer Chemical Composition
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 600 Pipe Fittings | 0.15 maximum | 1.00 maximum | 0.50 maximum | 0.015maximum | 0.50 maximum | 6.00 – 10.00 | 72.00 minimum | 14.00 – 17.00 |
ASTM B366 Alloy 600 Concentirc Reducer Pressure-Temperature ratings
| Pressure-Temperature ratings for Inconel 600 Pipe Fittings | |||||
|---|---|---|---|---|---|
| Temperature Ratings | Pressure Class | ||||
| 150 | 300 | ||||
| 1/4 - 1 inch. | 1 1/4 - 2 inch. | 2 1/2 - 3 inch. | |||
| (oF) | (oC) | ||||
| -20 to 150 | -29 to 66 | 300 | 2000 | 1500 | 1000 |
| 200 | 93 | 265 | 1785 | 1350 | 910 |
| 250 | 121 | 225 | 1575 | 1200 | 825 |
| 300 | 149 | 185 | 1360 | 1050 | 735 |
| 350 | 177 | 150 | 1150 | 900 | 650 |
| 400 | 204 | - | 935 | 750 | 560 |
| 450 | 232 | - | 725 | 600 | 475 |
| 500 | 260 | - | 510 | 450 | 385 |
| 550 | 288 | - | 300 | 300 | 300 |
Tolerance Chart
| Inconel 600 Pipe Fittings Tolerance | 90 Deg And 45 Deg Elbows And Pipe Tee |
Reducer (Concentric/ Eccentric) & Lap Joint Stub End (Long / Short) |
Pipe End Caps | |||
| Normal Pipe Size (NPS) Of ASME B16.9 | O. (Outside) D. (Daimeter) at Bevel |
I. (Inside) D.(Daimeter) at End |
Wall Thickness Of T | Center-to-End Dimension A ,C ,B |
Over-all Length Of H |
Over-all Length Of F |
| 1/2 to 2-1/2 | +0.06 | Not less than 87.5% of nominal thickness |
+/- 0.06 | +/- 0.06 | +/- 0.12 | |
| -0.03 | ||||||
| 3 to 3-1/2 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.12 | |
| 4 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.12 | |
| 5 to 8 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.25 | |
| 10 to 18 | +0.16 | +/- 0.12 | +/- 0.09 | +/- 0.09 | +/- 0.25 | |
| -0.12 | ||||||
| 20 to 24 | +0.25 | +/- 0.19 | +/- 0.09 | +/- 0.09 | +/- 0.25 | |
| -0.19 | ||||||
| 26 to 30 | +0.25 | +/- 0.19 | +/- 0.12 | +/- 0.19 | +/- 0.38 | |
| -0.19 | ||||||
| 32 to 48 | +0.25 | +/- 0.19 | +/- 0.19 | +/- 0.19 | +/- 0.38 | |
| -0.19 | ||||||
| STANDARD | WERKSTOFF NR. | UNS | AFNOR | EN | JIS | BS | GOST |
| Inconel 600 Pipe Fittings | 2.4816 | N06600 | NC15FE11M | NiCr15Fe | NCF 600 | NA 13 | МНЖМц 28-2,5-1,5 |
