Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | API, PED , ABS, DNV, BV, LR |
| Model Number: | ASME SB366 UNS NO6600 / ALLOY 600 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | PLY-WOODEN CASE OR PALLET |
| Delivery Time: | Depends on quantity |
| Payment Terms: | T/T, L/C AT SIGHT |
| Supply Ability: | 10000 pcs per month |
| Product Name: | Nikel Alloy Concentric Reducer | Standard: | ASTM B366 / ASME SB366 |
|---|---|---|---|
| O.D.: | AS PER CLIENT'S REQUEST | W.T.: | Schedule 10s To Schedule XXS |
| Type: | Seamless | Form: | Elbow |
| Certificates: | ISO TUV BV SGS, Etc. | Application: | Oil Gas Chemical,Marine Environments,etc. |
| High Light: | Inconel 600 Butt Weld Elbow,Nickel Alloy Butt Weld Elbow,Steel Pipe Weld Elbows |
||

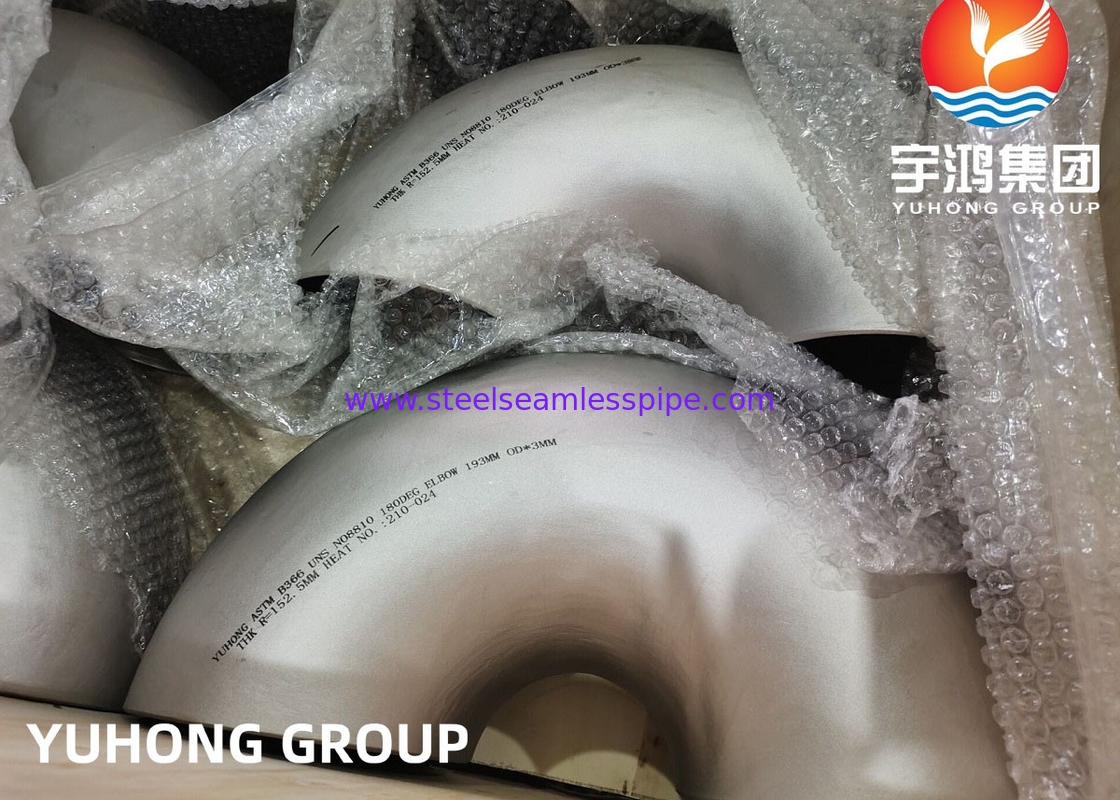

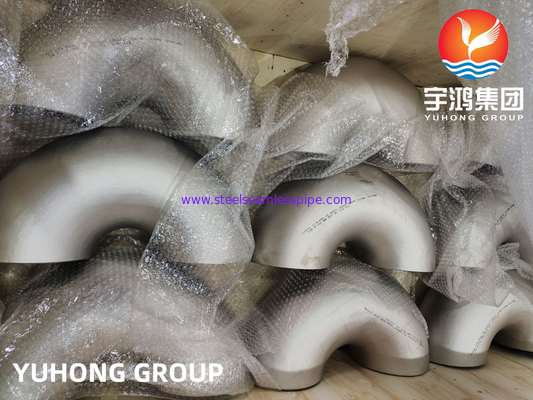

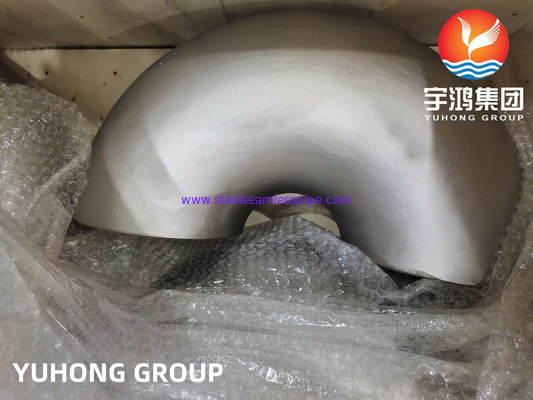

ASTM B366 / ASME SB366 Inconel 600 UNS N06600 Nickel Alloy Elbow for Nuclear Enigineering
YUHONG GROUP deal with stainless steel seamless pipe and tube already more than 33 years, every year sell more than 80000 tons of stainless steel seamless pipe and tube. Our client already cover more than 65 countries. Our stainless steel seamless pipe and tube was width used in Mining, Energy, Petrochemical, Chemical Industry, Food plant, Paper plant, Gas and Fluid Industry etc.
Decription
Fittings are devices used to connect pipes, valves and flanges in a piping system.Inconel 600 fittings are made with high concentrations of chromium, nickel and molybdenum. This chemical composition gives them excellent resistance to all forms of corrosion and oxidation. These fittings are not susceptible to deformation or dissociation under high pressures and temperatures. Alloy 600 fittings have exceptional strength and excellent mechanical properties. They have a minimum tensile strength of 655 MPa and a minimum yield strength of 310 MPa. Inconel tube fittings can easily be stretched by up to 40% and still have excellent machinability. These fittings have a melting point of approximately 1413 degrees Celsius and have a long service life. Inconel 600 butt weld fittings can be produced by hot or cold rolling. These fittings are easy to bend and weld. They are available in thicknesses from Sch 5 to Sch 160 and Sch XXS.
ASTM B366 UNS N06600 Elbows are used in multiple piping systems to change the direction of flow of fluids or gases. These elbows are generally available in 45, 90, and 180 degrees W. Nr. 2.4816 long radius elbows are the preferred elbows. These elbows are available in different sizes for various applications to ensure a tight seal and prevent any leakage. The price per kilogram for alloy 600 butt weld elbows depends on the shape, orientation and thickness of the elbow you select. Please visit our point of sale for a quote. All of our products, including Inconel 600 elbows, can be customised to different shapes and sizes to suit your requirements. If you have any questions or would like to know more about our products, please contact us for more information.
Inconel 600 Reducer Mechanical Properties
|
Element |
Density |
Melting Point |
Tensile Strength |
Yield Strength (0.2%Offset) |
Elongation |
|
Inconel 600 |
8.47 g/cm3 |
1413 °C (2580 °F) |
Psi – 95,000 , MPa – 655 |
Psi – 45,000 , MPa – 310 |
40 % |
Nickel Alloy 600 Pipe reducer Material Equivalent
|
STANDARD |
WERKSTOFF NR. |
UNS |
JIS |
BS |
GOST |
AFNOR |
EN |
|
Inconel 600 |
2.4816 |
N06600 |
NCF 600 |
NA 13 |
МНЖМц 28-2,5-1,5 |
NC15FE11M |
NiCr15Fe |
Composition Chart of W. Nr. 2.4816 Long Radius Elbow
|
Grade |
C |
Mn |
Si |
S |
Cu |
Fe |
Ni |
Cr |
|
Inconel 600 |
0.15 max |
1.00 max |
0.50 max |
0.015max |
0.50 max |
6.00 – 10.00 |
72.00 min |
14.00 – 17.00 |
Werkstoff No. 2.4816 Inconel 600 Elbow Chemical Composition
|
Grade |
C |
Mn |
Si |
S |
Cu |
Fe |
Ni |
Cr |
|
Inconel 600 |
0.15 max |
1.00 max |
0.50 max |
0.015max |
0.50 max |
6.00 – 10.00 |
72.00 min |
14.00 – 17.00 |
Applications
