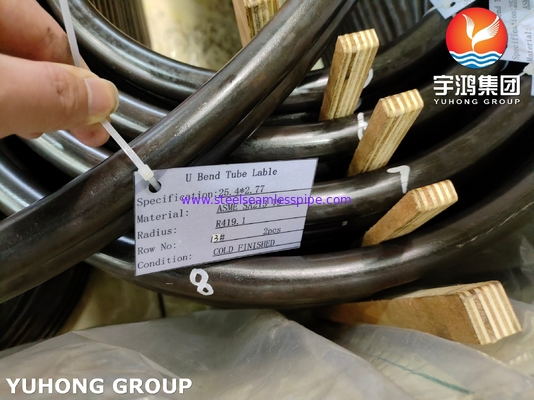

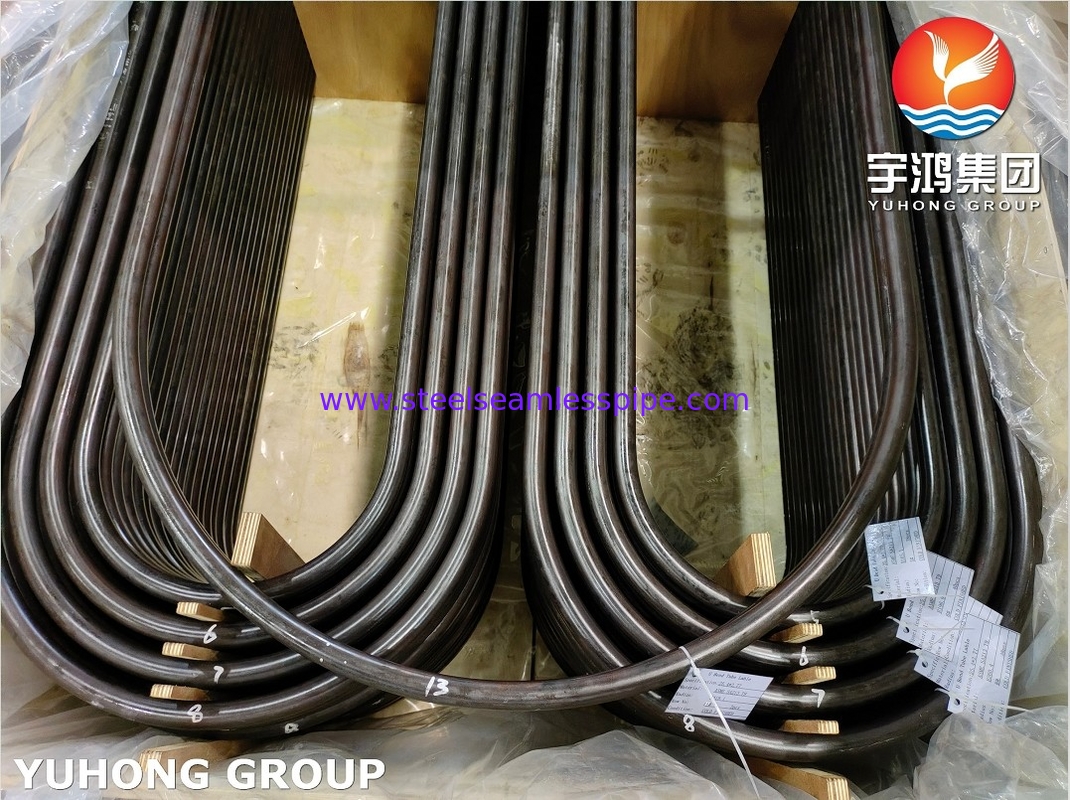

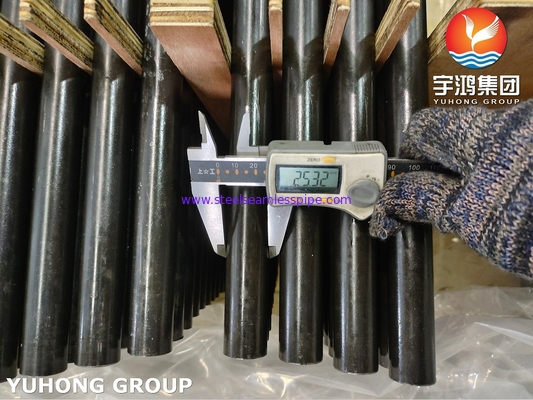

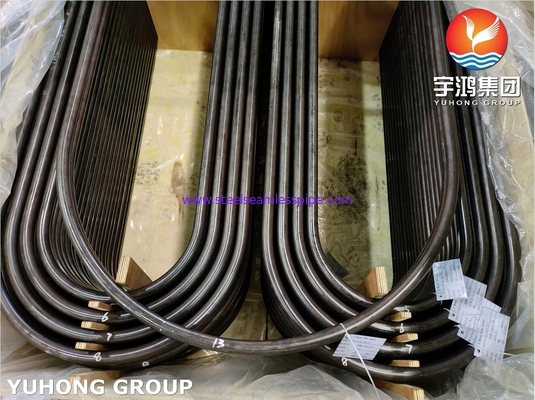

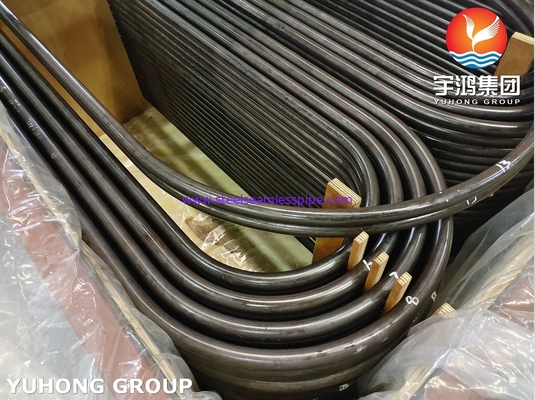

ASTM A179/ASME SA179-2021 Low Carbon Steel U Bending Tube Cold Drawn For Heat Exchanger
Yuhong Group has more than 10 years experience on exporting the SA179 smls tube. We can meet all kinds of Tecnical and Quality requirements. If you are looking for the quailty A179/SA179 seamless U bending Tube, welcome to YUHONG!
Description
ASTM A179 U-bends are used in heat exchangers and boilers. They are made from seamless cold-drawn mild steel tubing. These tubes are used in oil and gas plants, chemical and petrochemical plants, refineries, power plants and renewable energy plants. The wall thickness of the tubes is 1.65-2.77 mm.
ASTM A179 pipe shall be manufactured by the seamless process and shall be cold drawn. Thermal and product analyses shall be performed in which the steel shall conform to the required chemical composition of carbon, manganese, phosphorus, and sulfur. The steel shall also be hardness tested, flattened, flared, flanged, and hydrostatically tested.
Because of its good temperature resistance, ASTM A179 grade is suitable for steel tubing for tubular heat exchangers, condensers, and similar heat transfer equipment. Our ASTM A179 seamless steel tubes are suitable for use in sugar mills and distilleries, pumps and petrochemicals, cement and construction industries, and steel mills.
This specification covers cold-drawn, low-carbon, seamless steel tubes of minimum wall thickness for use in tubular heat exchangers, condensers, and similar heat-transfer equipment. The tubes shall be made by cold drawing using a seamless process. Thermal and product analyses shall be performed in which the steel material shall conform to the required chemical composition of carbon, manganese, phosphorus and sulphur. The steel shall also be hardness tested, flattened, flared, flanged and hydrostatically tested.
ASTM A179 Seamless Tube Chemical Composition
Chemical Composition |
C |
Mn |
P≤ |
S≤ |
Si≤ |
---|---|---|---|---|---|
0.06-0.18 |
0.27-0.63 |
0.035 |
0.035 |
0.25 |
ASTM A179 Seamless Tube Mechanical Property
Steel Grade |
Yield Strength (Mpa) |
Tensile Strength (Mpa) |
Elongation (%) |
---|---|---|---|
ASTM A179 |
≥180 |
≥325 |
≥35 |
ASTM A179 Seamless Tube Application
Seamless Cold Drawn Low Carbon Steel Heat Exchanger and Condenser Tubes |
|
---|---|
Applications: |
For tubular heat exchangers,condensers,and similar heat transfer services. |
Size (mm): |
O.D.: 6.0~114.0; W.T.: 1~15; L: max 12000 |
Test Methods
Hardness Test
Flattening Test
Flaring Test
Flange Test
Hydrostatic Test
....
Application
ASTM A179 seamless mild steel tubes are used in tube heat exchangers, condensers, and similar heat transfer equipment, as well as in boilers, superheaters, shell and tube heat exchangers, feedwater heaters, condensers, and evaporators. Low finned tubes in the form of U-bends are available.
