Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Model Number: | Titanium Gr2, UNS R50400, 3.7035 |
| Minimum Order Quantity: | 100 KGS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-Wooden Case / Pallet |
| Delivery Time: | 5 - 90 Work Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | According to Clients' Requirement |
| Certification: | ISO,SGS,BV,ISO; SGS | Standard: | ASTM B363, ASME SB363 |
|---|---|---|---|
| Material Grade: | Titanium Gr2, UNS R50400, 3.7035 | Type: | Butt Weld |
| Product Name: | Titanium Alloy Fitting | Application: | Decoration,Construction,boiler,oil And Gas, Etc. |
| High Light: | Grade 2 Butt Weld Fittings,Titanium Alloy Butt Weld Fittings,UNS R50400 Titanium Pipe Fittings |
||

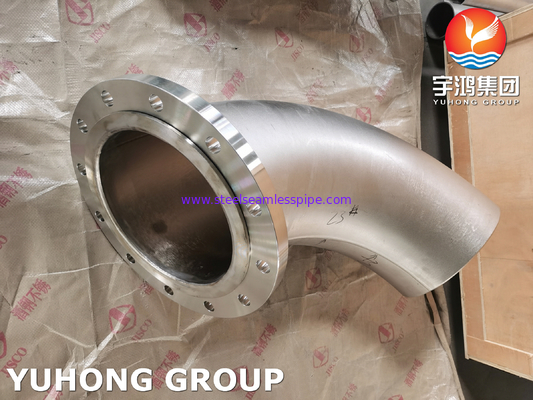

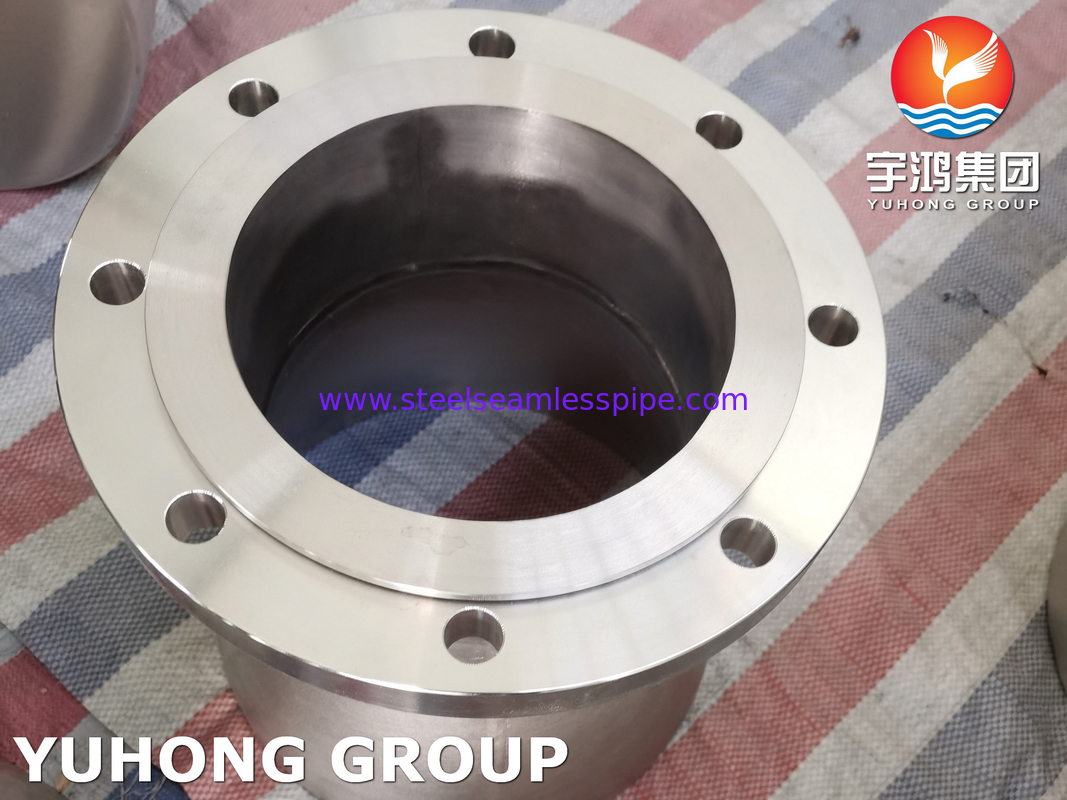

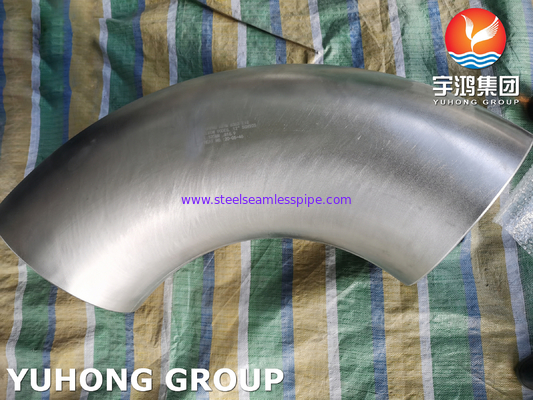

ASTM B363 Ti2, UNS R50400, 3.7035 Titanium Alloy Grade 2 Butt Weld Pipe Fittings
ASTM B363 Gr.2 Titanium Alloy Pipe Fittings have high strength, low weight, and exceptional corrosion resistance. Despite it's as strong as steel, titanium is about 40% lighter than steel in weight. Its most useful properties are its high tensile strength and its high density ratio. It is also formidable in its resistance to corrosion by both water and chemical media.
Specifications:
| Specification | ASTM B 363, ASME SB 363. |
| Dimensions | ASME B16.9, ANSI B16.9, ASME B16.28, ANSI B16.28, ANSI B16.25, MSS-SP-43 |
| Size | 1/2”NB to 24”NB |
| Schedule: | SCH 10, SCH20, SCH30, SCH40, Etc. |
| Types | Seamless / ERW / Welded / Fabricated |
| Grades | Titanium Gr1, Titanium Gr2, Titanium Gr5, Titanium Gr7 |
Equivalent Grades:
| STANDARD | UNS | WERKSTOFF NR. |
| Ti 2 | R50400 | 3.7035 |
Chemical Composition:
| Ti2 | C | Ti | N | Fe | H | O |
| 0.1 max | 99.2 min | 0.03 max | 0.3 max | 0.015 max | 0.25 max |
Mechanical Properties:
| Grade | Tensile Strength, Min | Yield Strength, 0.2% Offset | Elongation in 2 in. or 50mm Min, % | ||||
| Min | Max | ||||||
| Ksi | Mpa | Ksi | Mpa | Ksi | Mpa | ||
| Ti.2 | 50 | 345 | 40 | 275 | 65 | 450 | 20 |
Applications:
Heat Exchangers
Condensers
Power Generation
Gas Processing Industry
Pharmaceutical Equipment
Chemical & Petrochemicals Equipment
Sea Water Equipment
Pulp and Paper Industry
