Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | WP304L-S |
| Minimum Order Quantity: | 5 Pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case / Pallet |
| Delivery Time: | 5 - 90 Work Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | According To Customers' Request |
| Standard: | ASTM A403 ASME SA403 | Material Grade: | WP304L-S |
|---|---|---|---|
| Technics: | Butt Weld | Name: | Stainless Steel Pipe Fittings |
| Size: | Customized Size,1/2''-48''(DN15-DN1200) | Application: | Construction,gas And Oil Pipes,Petroleum Gas Water,etc. |
| High Light: | ASTM A403 Stainless Steel Fittings,Seamless Butt Weld Cap,WP304L Butt Weld Cap |
||

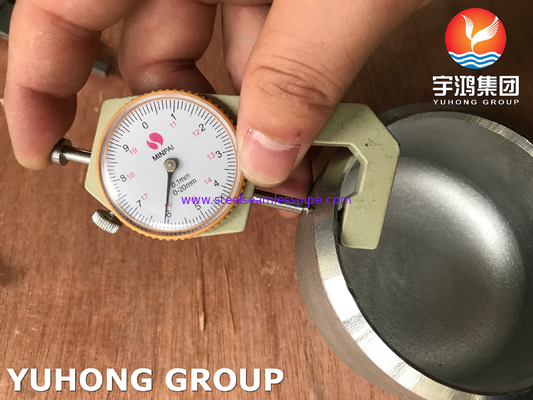

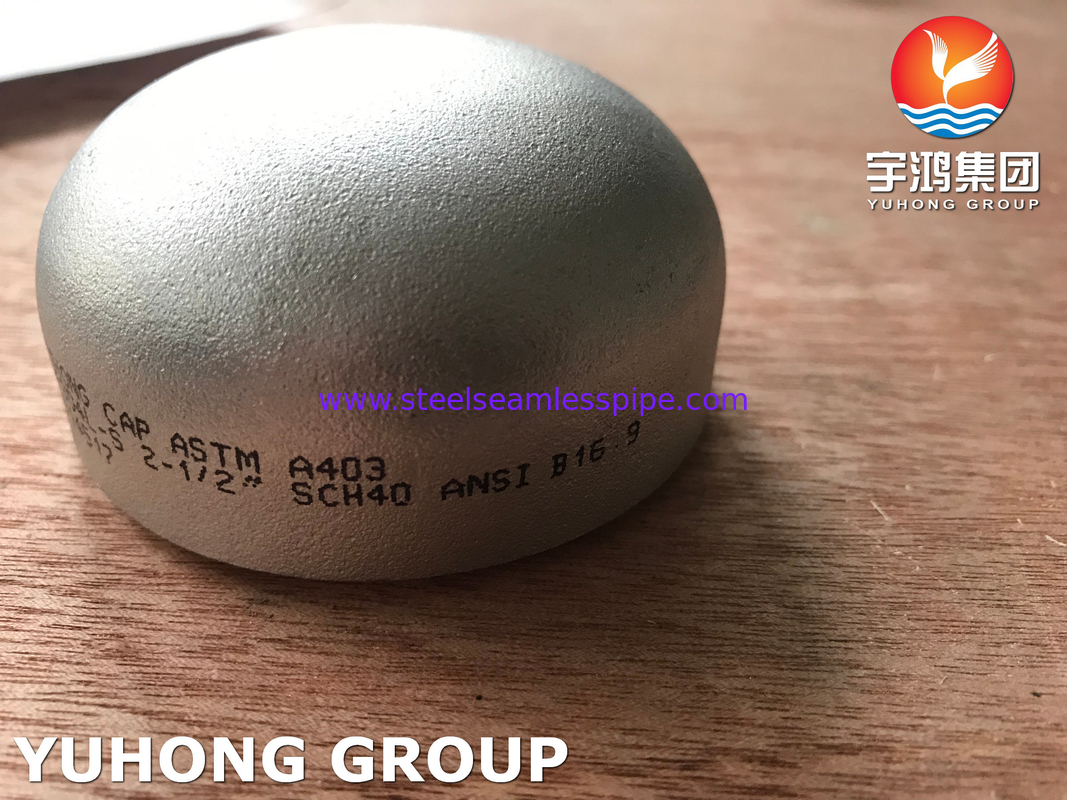

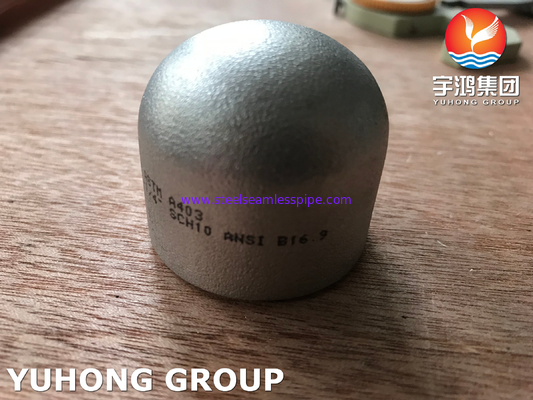

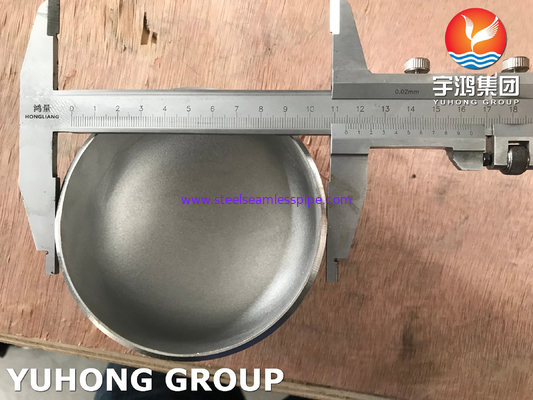

Stainless Steel Fittings ASTM A403 WP304L Seamless Butt Weld Cap B16.9
ASTM A403 WP304L Stainless Steel Butt Weld Pipe Fittings mean the pipe fittings which material is wrought austenitic stainless grade WP304L. They are usually used for the pressure piping systems of moderate and high temperature services. ASTM A403 indicates the materials properties of different kinds of stainless steel. WP304L is one of the steel grades of this standard. The corrosion resistance of WP304L and WP304 are similar. But after eliminating stress or welding, corrosion resistance of WP304L is more excellent. ASTM A403 WP304L is the most common stainless steel pipe fittings material.
| Specifications | ASTM A403 / ASME SA403 |
| Size | 1/8” NB To 48” NB |
| Standards | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Thickness | SCH5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS |
| Type | Seamless / Welded / Fabricated |
Equivalent Grades:
| Standard | SS 304L |
| WERKSTOFF NR. | 1.4306 / 1.4307 |
| UNS | S30403 |
| JIS | SUS 304L |
| BS | 3304S11 |
| GOST | 03Х18Н11 |
| AFNOR | Z3CN18‐10 |
| EN | X2CrNi18-9 / X2CrNi19-11 |
Chemical Composition:
| Grade | C | Mn | Si | P | S | Cr | Ni |
| WP304L | 0.035 max | 2 max | 1 max | 0.045 max | 0.03 max | 18 – 20 | 8 – 13 |
Mechanical Properties:
| Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | |||
| 485 | 170 | 40 | 92 | 201 |
Physical Properties:
| Density (g/Cm3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (μm/m/°C) | Thermal Conductivity (W/m.K) | Specific Heat 0-100°C (J/kg.K) | Electrical Resistivity (nΩ.m) | |||
| 0-100°C | 0-315°C | 0-538°C | 100°C | 500°C | ||||
| 8 | 193 | 17.2 | 17.8 | 18.4 | 16.2 | 21.5 | 500 | 720 |
Applications:
Power Generation
Pulp and Paper Plant
Pharmaceutical Industry
Condensers, Heat Exchangers
Oil and Gas Processing Plant
Petrochemicals & Chemical Equipment
