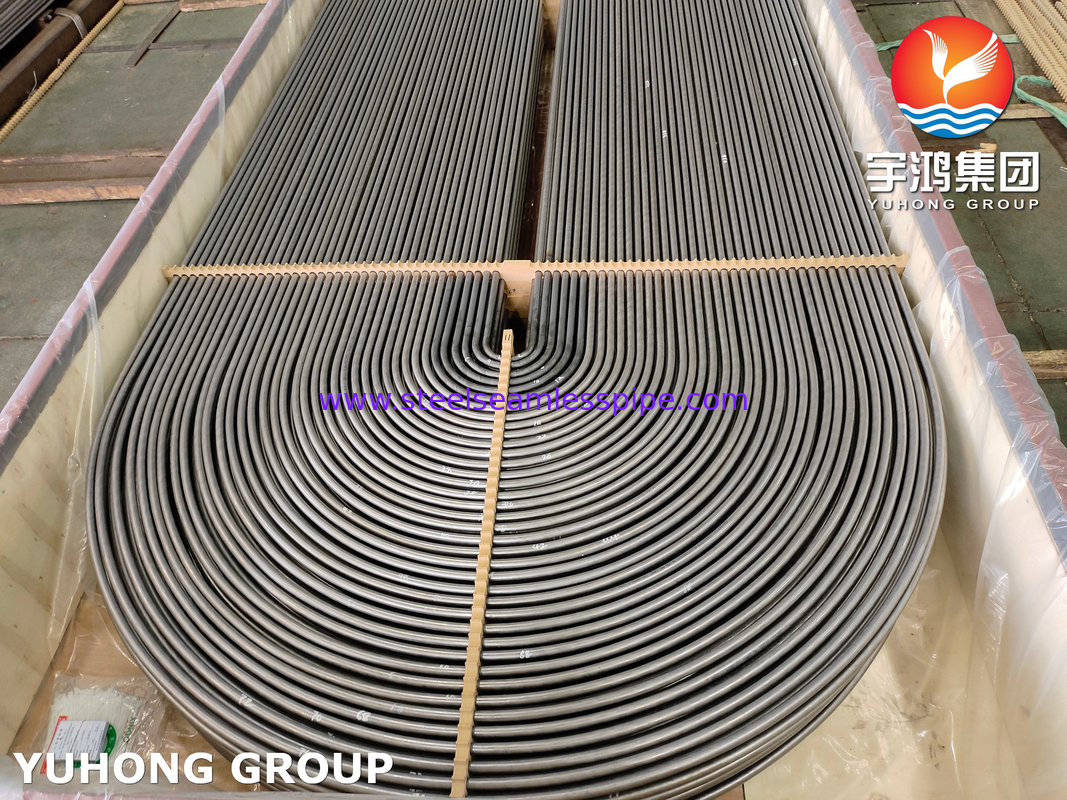

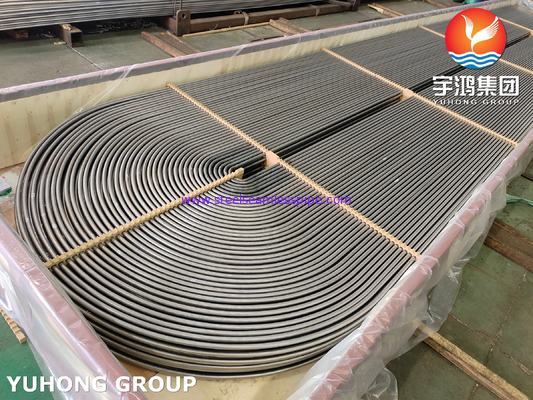

ASTM A179/ ASME SA179 CARBON STEEL SEAMLESS U BEND TUBE BLACK PAINTING / COLD DRAWN
Overview
The ASTM A179 / ASME SA179 Seamless Tubes has similar grades and standards like ASTM A179/ A179M. It is viable in types like seamless / cold drawn / hot drawn etc. This tube product is available in custom-made size, diameter, and thickness. The Carbon Steel A179 Heat-Exchanger Tubes is strictly subjected to various tests in order to ensure the quality of the product. This grade of the tube is packed in wooden box or case in order to avoid external damage during the last stage of production. What's more, these tubes are used in various industrial applications and are available in market leading prices.
Specification
ASTM A179/A179M Standard Specification for Seamless Cold-Drawn Low-Carbon Steel Heat-Exchanger and Condenser Tubes.
C, % | Mn, % | P, % | S, % |
0.06-0.18 | 0.27-0.63 | 0.035 max | 0.035 max |
Tensile Strength, MPa | Yield Strength, MPa | Elongation, % | Hardness, HRB |
325 min. | 180 min. | 35 min. | 72 max |
Outside Diameter, mm | Tolerance, mm |
3.2≤OD<25.4 | ±0.10 |
25.4≤OD≤38.1 | ±0.15 |
38.1<OD<50.8 | ±0.20 |
50.8≤OD<63.5 | ±0.25 |
63.5≤OD<76.2 | ±0.30 |
76.2 | ±0.38 |
Outside Diamter, mm | Tolerance, % |
3.2≤OD<38.1 | +20/-0 |
38.1≤OD≤76.2 | +22/-0 |
Applications:
