Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG GROUP |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | TP304/304L , 1.4301 , 1.4306, 1.4307 , SUS304 , SUS304L ,08X18H10 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | negotiable |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 5-60 Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1500 tons per month |
| Standard: | ASTM A312, ASME SA312, ASTM A376, ASTM A511 | Grade: | TP304/304L , 1.4301 , 1.4306, 1.4307 , SUS304 , SUS304L ,08X18H10 |
|---|---|---|---|
| NDT: | ET,UT HT, PT | ANSI: | B16.10 , B16.19 , B16.25 |
| Surface: | Pickled , Bright , Polished | Application: | Petrochemical , Paper Plant , Water Solution |
| High Light: | Petrochemical Stainless Steel Welded Pipe,304L Stainless Steel Welded Pipe,ASME SA312 Stainless Steel Seamless Pipe |
||

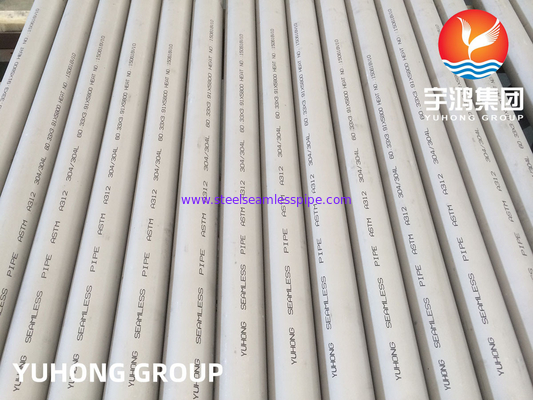

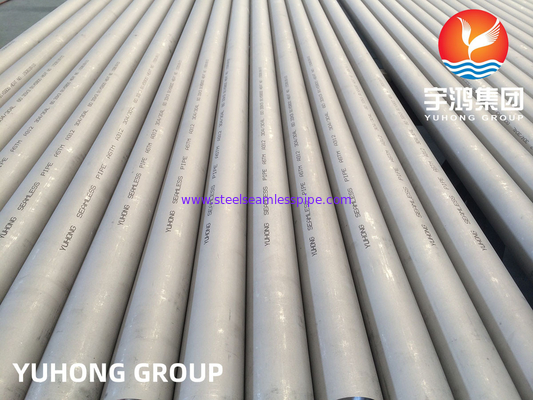

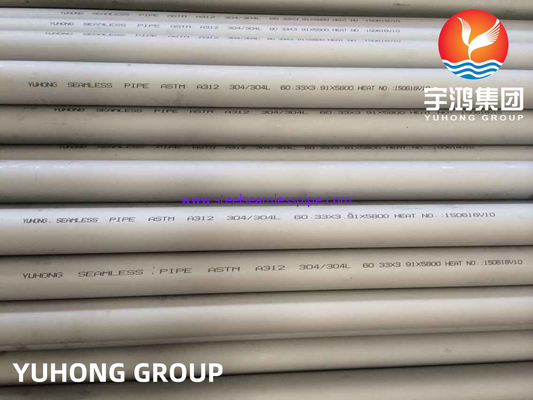

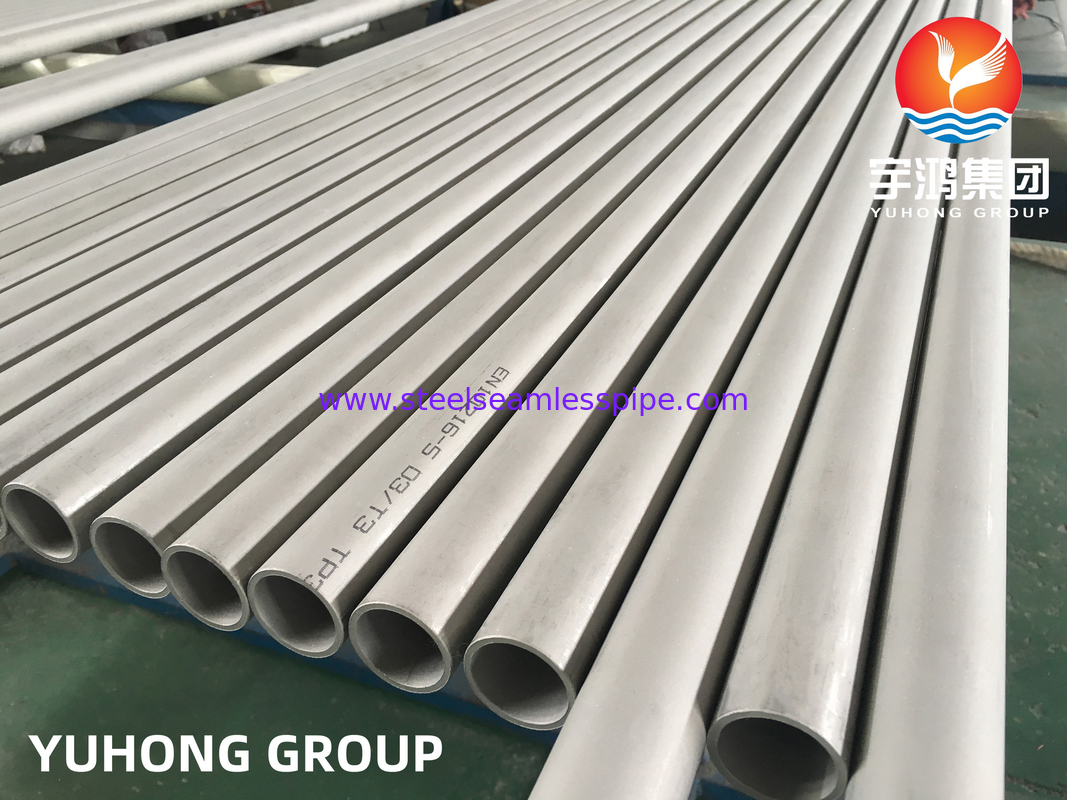

ASTM A312 / ASME SA312 TP304/304L Stainless Steel Welded or Seamless Pipe
Yuhong Group supply Boiler tube , Heat Exchange Tube, Air Cooling Tube , Condenser Tube more than 33 years , and our material grade contain Stainless Steel , Duplex Steel , Super Duplex Steel , Hastelloy , Monel , Inconel , Incoloy , Cr-Mo alloy , Copper alloy steel , and very year sell more than 80000 tons pipes and tubes to our client projects. And up to now we already export more than 55 countries. The pipe and tube was width used in Mining, Energy, Petrochemical, Chemical Industry, Food plant, Paper plant, Gas and Fluid Industry etc.
What is 304L stainless steel?
304L stainless steel, also known as ultra-low carbon stainless steel, is a versatile stainless steel material that is widely used to make equipment and parts that require good comprehensive performance (corrosion resistance and formability).
304L is a variant of 304 stainless steel with lower carbon content and is used where welding is required. The lower carbon content minimizes the precipitation of carbides in the heat-affected zone near the weld, and the precipitation of carbides may cause stainless steel to produce intergranular corrosion (welding erosion) in certain environments.
304L stainless steel has poor forging performance and difficult deformation.
Due to work hardening. So that the amount of deformation in the process of mandrel drawing can not be too large. And the heat loss is large. Therefore, it must be formed under many fires. If the high temperature holding stage is not handled well, it will cause coarse crystals.
Composition ranges for 304 grade stainless steel
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 304 | min. | - | - | - | - | - | 18.0 | - | 8.0 | - |
| max. | 0.08 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | 10.5 | 0.10 | ||
| 304L | min. | - | - | - | - | - | 18.0 | - | 8.0 | - |
| max. | 0.030 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | 12.0 | 0.10 | ||
| 304H | min. | 0.04 | - | - | - | - | 18.0 | - | 8.0 | - |
| max. | 0.10 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | 10.5 | |||
Mechanical properties of 304 grade stainless steel
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 304 | 515 | 205 | 40 | 92 | 201 |
| 304L | 485 | 170 | 40 | 92 | 201 |
| 304H | 515 | 205 | 40 | 92 | 201 |
Physical properties of 304 grade stainless steel in the annealed condition
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Thermal Conductivity (W/m.K) | Specific Heat 0-1000C (J/kg.K) | Electrical Resistivity (n.m) | |||
| 0-1000C | 0-3150C | 0-5380C | at 1000C | at 5000C | |||||
| 304/L/H | 8000 | 193 | 17.2 | 17.8 | 18.4 | 16.2 | 21.5 | 500 | 720 |
Grade specifications for 304 grade stainless steel
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
| BS | En | No | Name | ||||
| 304 | S30400 | 304S31 | 58E | 1.4301 | X5CrNi18-10 | 2332 | SUS 304 |
| 304L | S30403 | 304S11 | - | 1.4306 | X2CrNi19-11 | 2352 | SUS 304L |
| 304H | S30409 | 304S51 | - | 1.4948 | X6CrNi18-11 | - | - |
Applications
Sanitary
Dairy and food processing
Heat exchangers, evaporators
Feedwater heaters
