Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | WP904L-S |
| Minimum Order Quantity: | 5 Pieces |
|---|---|
| Price: | Negotiable |

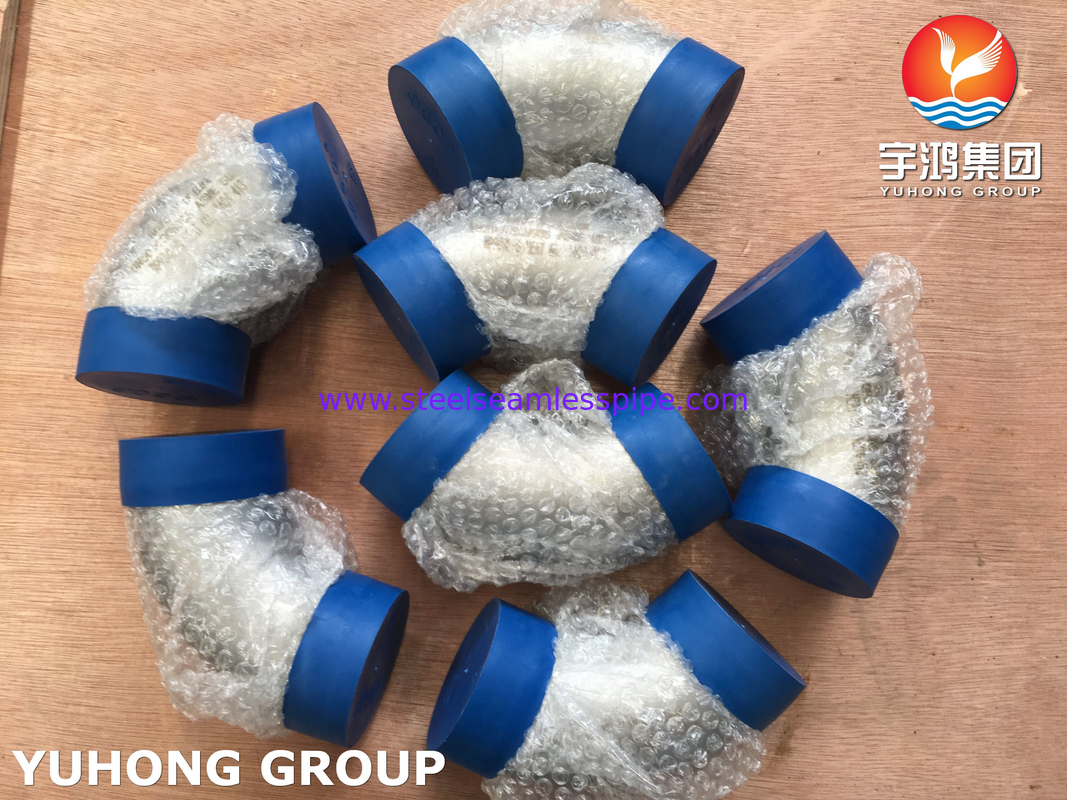

| Packaging Details: | Ply-Wooden Case / Pallet |
| Delivery Time: | 5 - 60 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | According to Clients' Requirement |
| Standard: | ASTM B366, ASME SB366 | Material Grade: | WP904L-S |
|---|---|---|---|
| Name: | Stainless Steel Pipe Fittings | Degree: | 45, 90, 180 Degree |
| Size: | 1/2''-48''(DN15-DN1200) | Technics: | Butt Weld |
| Connection: | Welding | Applications: | Construction,Gas And Oil Pipes,Steam,Petroleum Gas Water |
| High Light: | 90 Degree Elbow WP904L-S,ASTM B366 Stainless Steel Fittings,Stainless Steel Butt Weld Elbow |
||

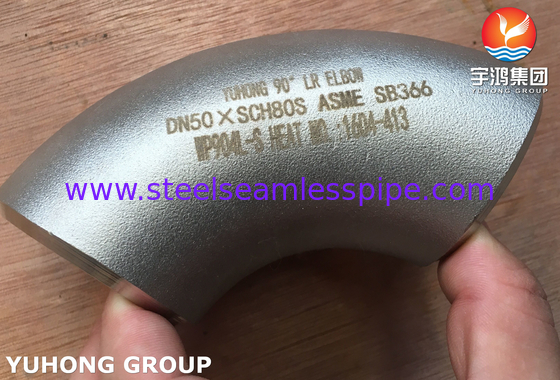

Stainless Steel Fittings ASME SB366 WP904L-S Butt Weld 90 Degree LR Elbow B16.9
What Is 904L Stainless Steel Buttweld Fittings ?
WP904L Stainless steel, also known as UNS N08904, is a high resistance corrosion steel and it’s an Austenitic Stainless Steel with superior resistance as compare to the type or WP316L and WP317L. Due to addition of some elements this material displays a brilliant corrosion resistance against reducing acids such as sulfuric acids.
With its highly alloyed chemistry and the addition of about 25% nickel and 4.5% molybdenum, 904L Stainless Steel Butt Weld Elbow provides excellent chloride ion stress related corrosion cracking resistance, pitting and general corrosion resistance. The corrosion resistance property of the SS WP904L Elbow is more superior in comparison to 316L and 317L molybdenum enhanced stainless steels.
| Specifications | ASTM B366 / ASME SB366 |
| Size | 1/8” NB To 48” NB |
| Standards | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Thickness | SCH5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS |
| Type | Seamless / Welded / Fabricated |
Equivalent Grades:
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | KS | AFNOR | EN |
| SS 904L | 1.4539 | N08904 | SUS 904L | 904S13 | STS 317J5L | Z2 NCDU 25-20 | X1NiCrMoCu25-20-5 |
Chemical Composition:
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| WP904L | min. | – | – | – | – | – | 19 | 4 | 23 | 0.1 |
| max. | 0.2 | 2 | 1 | 0.045 | 0.035 | 23 | 5 | 28 | 0.25 | |
Mechanical Properties:
| Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness |
| Rockwell B (HR B) max | |||
| 490 | 220 | 35 | 70-90 |
Physical Properties:
| Density (g/cm3) |
Elastic Modulus (GPa) |
Mean Co-eff of Thermal Expansion (µm/m/°C) | Thermal Conductivity (W/m.K) |
Specific Heat 0-100°C (J/kg.K) |
Elec Resistivity (nΩ.m) |
| 0-100°C | At 20°C | ||||
| 7.9 | 190 | 15 | 11.5 | 500 | 952 |
Applications:
Oil and Gas Pipeline
Chemical Industry
Water Supply Systems
Paper & Pulp Industry
Food Processing Industry
Fabrication Industry
