Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | API , ABS, DNV, GL , LR, NK. |
| Model Number: | ASTM B366 UNS N08367 90 degree LR Elbow |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Packaging Details: | PLWOOD CASE / PALLET |
| Delivery Time: | 7 DAYS |
| Payment Terms: | L/C, T/T |
| Product Name: | Nickel Alloy Elbow | Standard: | ASTM B366, ASME SB366 |
|---|---|---|---|
| Material Grade: | ALLOY 8020 , ALLOY 8028 , ALLOY 8367 | Form: | 45DEG., 90DEG. 180DEG. SR/LR |
| Type: | Seamless, Welded | W.T.: | SCH 10, SCH 20, SCH 30, SCH 40, SCH 60, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XS, XXS |
| Bending Radius: | R=1D, 2D, 3D, 5D, 6D, 8D, 10D | Application: | Seawater Heat Exchangers, Offshore Oil & Gas Rigs, FGD Scrubbers |
| High Light: | ASTM B366 UNS N08367 Super Alloy 90 DEG. LR Elbow | ||

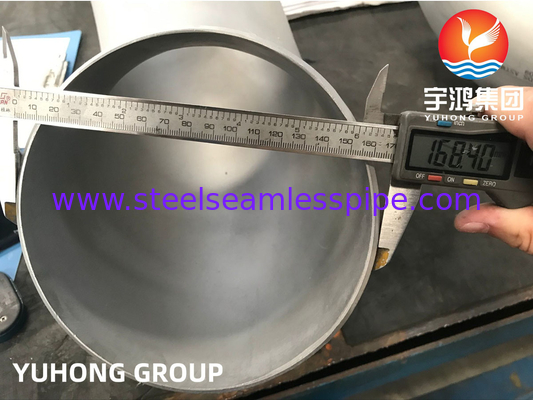

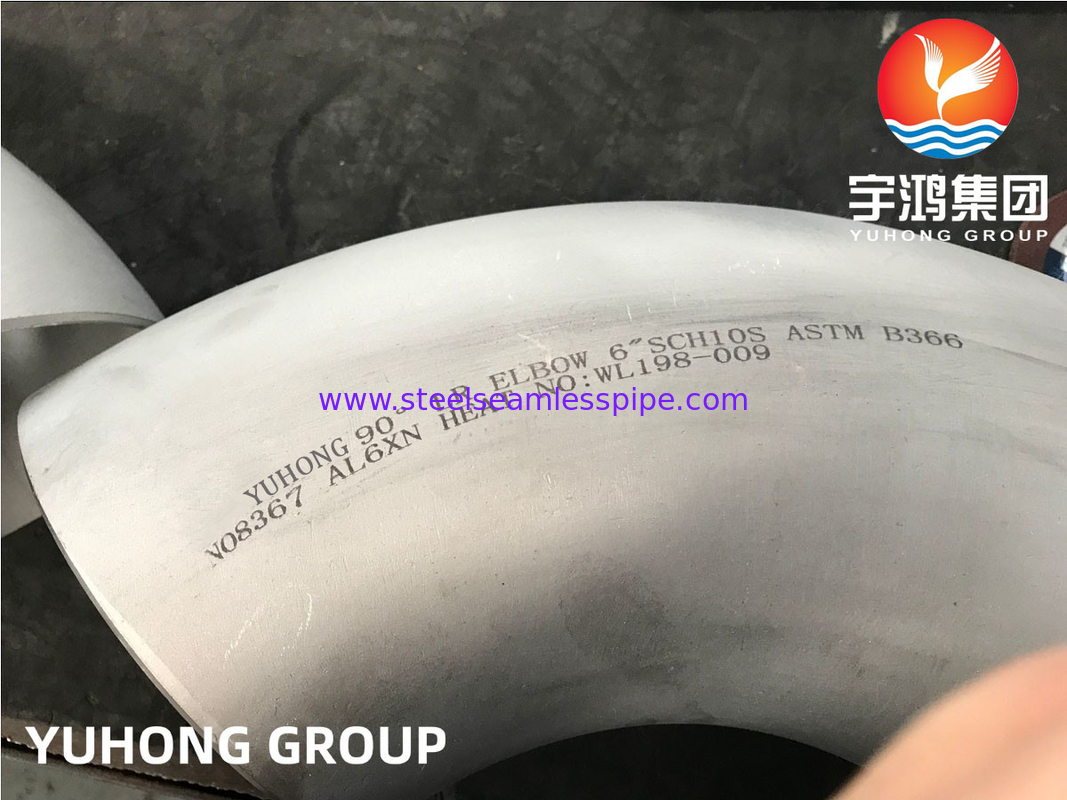

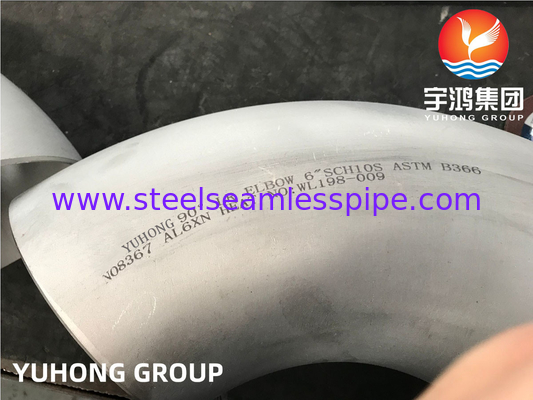

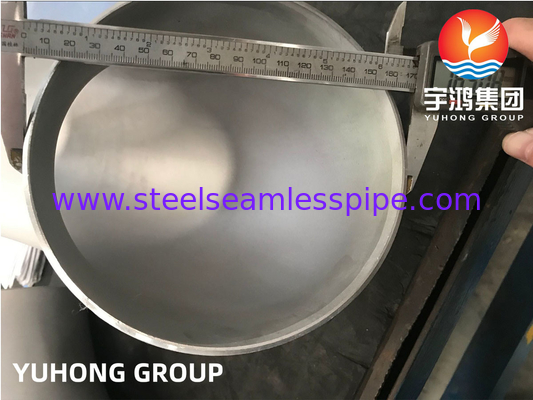

ASTM B366 Alloy AL6XN / UNS N08367 90 DEG. LR Elbow, Nickel Alloy Buttweld Pipe Fitting
AL-6XN (UNS N08367) provides a stable and reliable value that enables the owner to establish an accurate return on investment. Decreases in unplanned downtime, product loss, and maintenance costs with AL-6XN contribute to this value. It is identified by the Unified Numbering System (UNS) designation of N08367. It is an austenitic stainless steel alloy with high nickel (24%), chromium (22%), molybdenum (6%), and nitrogen (0.18%) content and is commonly known as superaustenitic stainless steel (alloys such as 254 SMO (UNS S31254) and 904L (UNS N08904) also fall under the superaustenitic designation) while 2205 (UNS S32305/ S31803) and 2507 (UNS S32750) are duplex and super duplex stainless steel, respectively.
AL6XN Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS |
|---|---|---|
| SSC-6MO / AL6XN | - | N08367 |

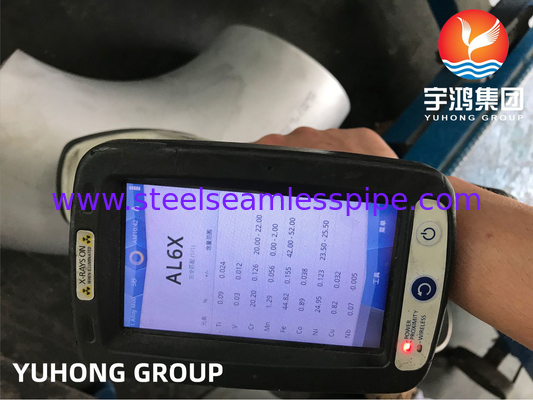

AL6XN Chemical Composition
| Grade | C | Mn | P | S | Si | Ni | Cr | Fe | N | Cu | Mo |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SSC-6MO / AL6XN | .03 max | 2.0 max | .04 max | .03 max | 1.0 max | 23.5 - 25.5 | 20.0 -22.0 | Bal | .18 - .25 | .75 max | 6.0 - 7.0 |
| Metric | English | |
|---|---|---|
| Melting Point | 1320 - 1400 °C | 2410 - 2550 °F |
Pipe & Pipe Fittings
Seamless Pipe in Titanium Grades 1, 2, 5, 7, 9 and 12
Seamless Pipe in Duplex UNS S31803 & S32205
Seamless Pipe in Super Duplex UNS S32750 & S32760
Seamless Pipe in 6 Moly UNS S31254, N08925 & N08926
Seamless Pipe in Copper Nickel UNS C70600 C70620 C7060X C7150 C71520 C71640
Welded Pipe in Duplex UNS S31803 & S32205
Welded Pipe in Super Duplex UNS S32750 & S32760
Welded Pipe in 6 Moly UNS S31254, N08926 & N08925
Welded Pipe in Copper Nickel UNS C70600 C70620 C7060X C7150 C71520 C71640
Seamless & Welded Butt-weld fittings in Titanium Grades 1, 2, 5, 7, 9 and 12
Seamless & Welded Butt-weld fittings in Duplex UNS S31803 & S32205
Seamless & Welded Butt-weld fittings in Super Duplex UNS S32750 & S32760
Seamless & Welded Butt-weld fittings in 6 Moly UNS S31254, N08925 & N08926
Seamless & Welded Butt-weld fittings in Copper Nickel UNS C70600 C70620 C7060X C7150 C71520 C71640
| Butt Weld Fittings | Long & Short Radius Elbows |
| Long & Short Radius Return Elbow | |
| Concentric & Eccentric Tees | |
| Equal & Reducing Tees | |
| Stub Ends | |
| End Caps |
| ANSI B.31.10 | Code for Pressure Piping | ANSI B.31.8 | Gas Transmission/Distribution Piping |
| ANSI B.31.3 | Petroleum Refinery Piping | ANSI B.36.10 | Standard for Wrought Steel Pipe |
| ANSI B.31.4 | Oil Transportation Piping | ANSI B.36.19 | Standard for Stainless Steel Pipe |
| ANSI B.31.5 | Refrigeration Piping Systems | ANSI B.16.10 | Valve Dimension Face & Ends |
| ANSI B.31.7 | Nuclear Power Piping | ANSI B.16.11 | Forged Fittings Socket Weld & Threaded |
AL6XN vs Hastelloy C276 is that AL6XN has a UNS Number N08367 and Hastelloy C276 has a UNS Number N10276. AL6XN is a superaustenitic stainless. Hastelloy C276 is a superalloy that contains chromium, molybdenum and nickel and to this has been added tungsten. AL6XN has a high content of nitrogen in it, giving it a tensile strength that is greater than common austentitic stainless steels. Due to its high content of molybdenum and nickel, Hastelloy C276 is very highly resistant to crevice corrosion and pitting. The Density of AL6XN is 8.06 g/cm3 (0.291lb/in3). The Density of Hastelloy C276 is 8.89 g/cm³ (0.321 lb/in³).
AL-6XN is an upgrade to 300 series alloys such as 316L/1.4435 and 304 when high concentration of chlorides, high temperature, acidic pH levels, and time of contact are introduced to the process. This alloy is recognized by the ASME BPE standard, which identifies several specifications in Part MM (Metallic Materials) and by U. S. Food and Drug Administration (FDA).
Alloy AL6XN is used for a wide range of applications, including:
1. Seawater Heat Exchangers
2. Offshore Oil & Gas Rigs
3. FGD Scrubbers
4. Reverse Osmosis Equipment
5. Distillation Columns
