Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | UNS S31803 |
| Minimum Order Quantity: | 5 Pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case / Pallet |
| Delivery Time: | 5 - 60 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | According To Customers' Request |
| Standard: | ASTM A815, ASME SA815 | Material Grade: | UNS S31803 |
|---|---|---|---|
| Technics: | Butt Weld | Type: | Seamless |
| Size: | 1/2''-48''(DN15-DN1200) | Schedule: | SCH10-SCHXXS |
| Product Name: | Duplex Stainless Steel Reducing Tee | Applications: | Construction,Gas And Oil Pipes,Steam,Petroleum Gas Water |

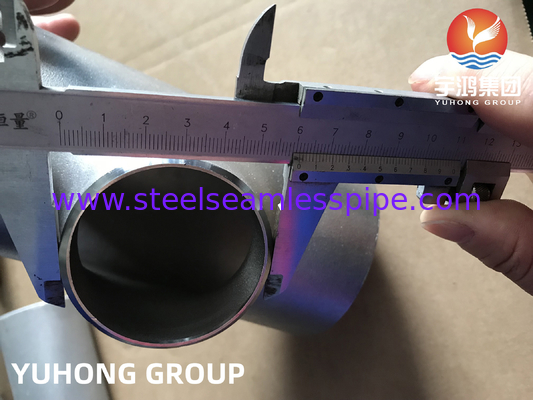

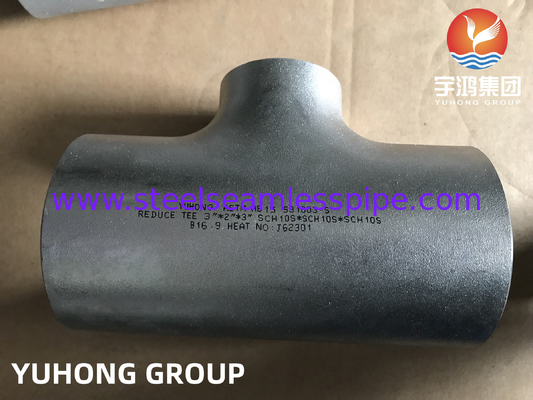

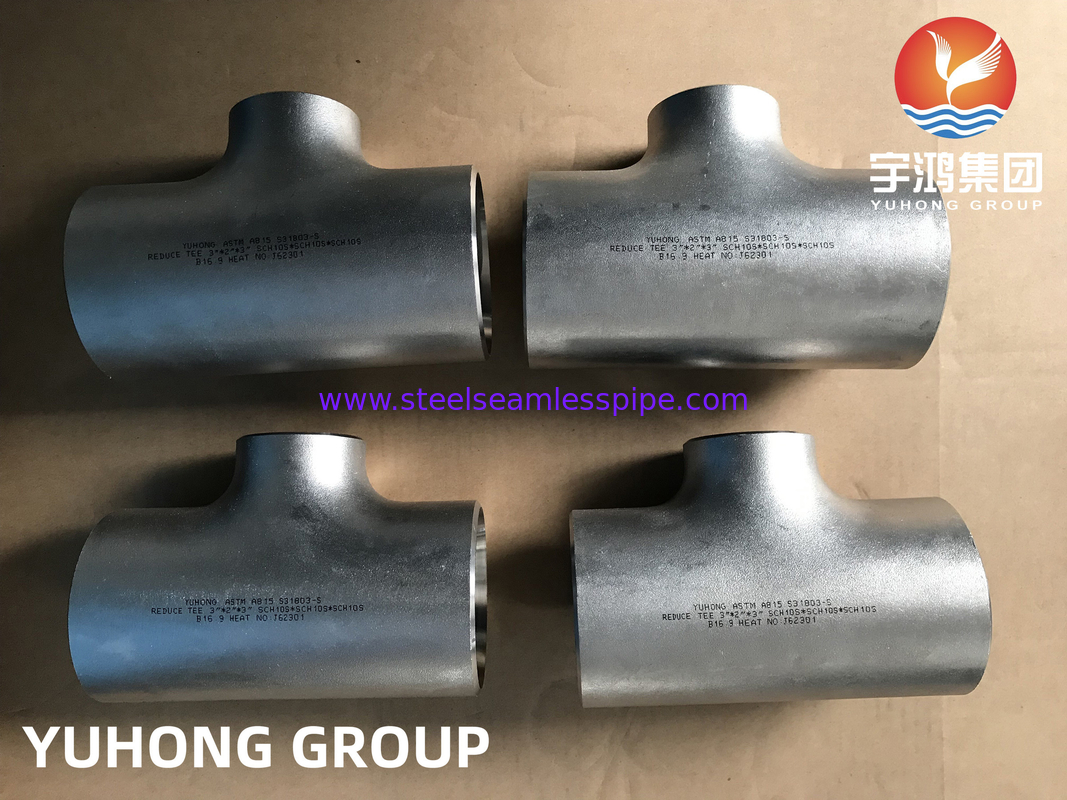

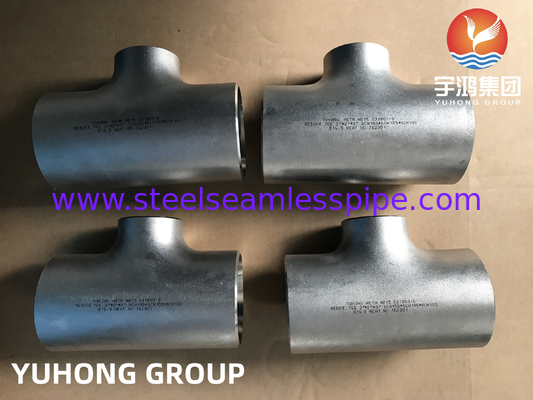

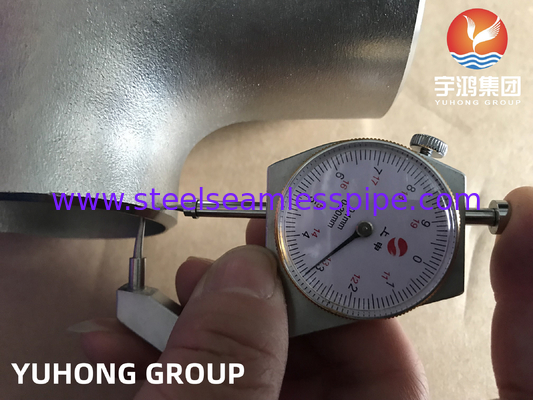

ASTM A815 UNS S31803-S Duplex Stainless Steel Reducing Tee B16.9 For Desalination
A pipe fitting is used to change the direction of the pipe. The simplest way to do is to bend the pipe. However, it will stretch and thin out the outer walls of the pipe. It will also thicken the inner wall of the pipe. UNS S31803 duplex stainless steel fittings are wellknowned for having austenitic and ferritic microstructures. They display the properties of both classes. Improved localized corrosion resistance is displayed by ASME SA815 Duplex Steel Butt Weld Pipe Fittings.
The ASTM A815 UNS S31803 butt weld pipe fittings consist of duplex stainless steel, with equal portions of austenite and ferrite microstructure. The UNS S31803 Pipe Fittings has two phases and comprises ferritic, austenitic, 22 % chromium, 3 % molybdenum, 5 to 6 % nickel alloyed stainless steel. ASTM A815 UNS S31803 Duplex Stainless Steel Reducing Tee is said to have amazing toxic resistance and elasticity due to which they are used in the gas desulfurization industry.
| Specifications | ANSI/ASME B16.9, B16.28, MSS-SP-43 |
| Designation | ASTM A815, ASME SA815 |
| Size | 1/8” – 48” |
| Type | Seamless / Welded |
| Schedules | SCH10, 20, 30, 40, 80, 120, 160, STD, XS, XXS |
Equivalent Grades:
| STANDARD | UNS | WERKSTOFF NR. |
| Duplex 2205 | S31803 | 1.4462 |
Chemical Composition:
| C | Mn | Si | P | S | Cr | Mo | Ni | N | |
|
Min Max |
- 0.03 |
- 2 |
- 1 |
- 0.03 |
- 0.02 |
21 23 |
2.5 3.5 |
4.5 6.5 |
0.08 0.2 |
Mechanical Strength:
| Density (g/cm 3) | Density (lb/in 3) | Melting Point (°C) | Melting Point (°F) |
| 7.805 | 0.285 | 1420 – 1465 | 2588 – 2669 |
Physical Properties:
| Modulus of Elasticity (GPa) | Poisson’s Ratio | Thermal Conductivity (W/moC) | Thermal Capacity (I/KgoC) | Electrical Resistivity |
| 200 | 0.3 | 15 | 500 | 0.8 |
Applications:
Sugar Industries
Fertilizers Industries
Water Supply Systems
Oil and Gas Pipeline
Fabrication Industry
Power Generation Industries
Food Processing Industries
Chemical&Petrochemical Industries
