Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM A182 F321H |
| Minimum Order Quantity: | 2 PC |
|---|---|
| Price: | 1-100000 USD |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 10-50days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000 tons/month |
| Product: | Flanges | Standard: | ASTM A182 |
|---|---|---|---|
| Material: | Stainless Steel | Grade: | F321H |
| Type: | Blind/ Threaded /Slip On /Socket Welded/ Welding Neck/ Lap Joint Flange | Process: | Forged, Drilling/Bending/Stamping, Casting, Heating Treament |

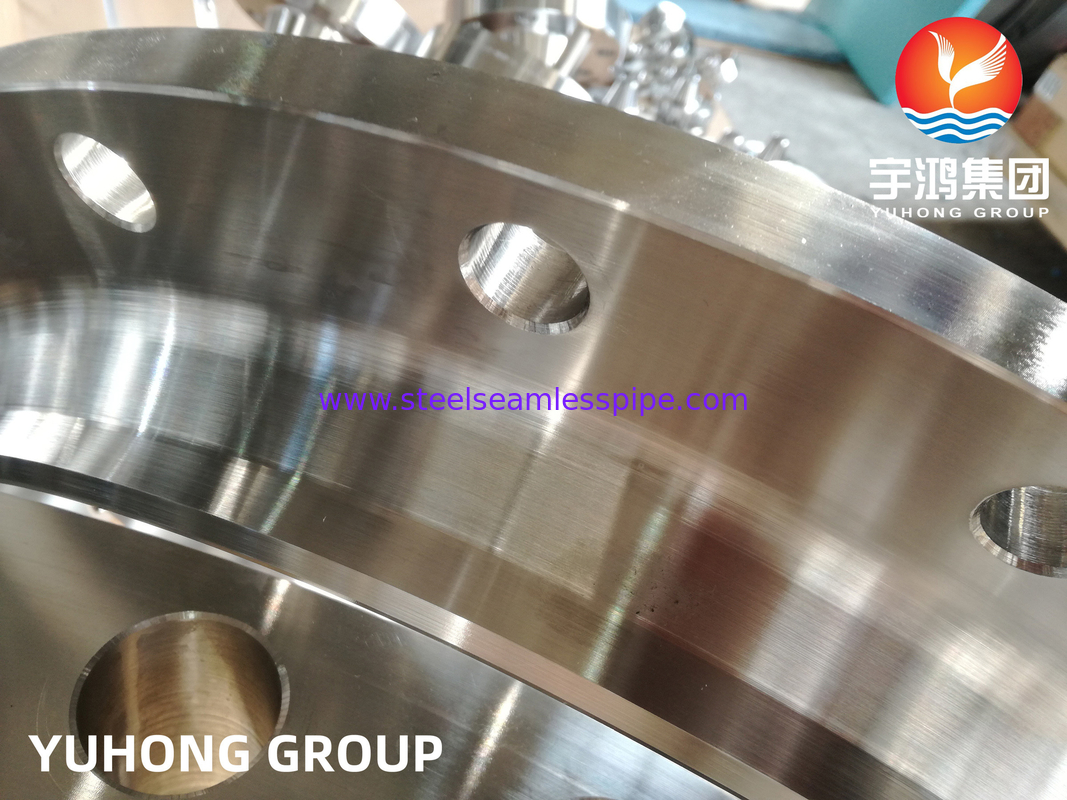

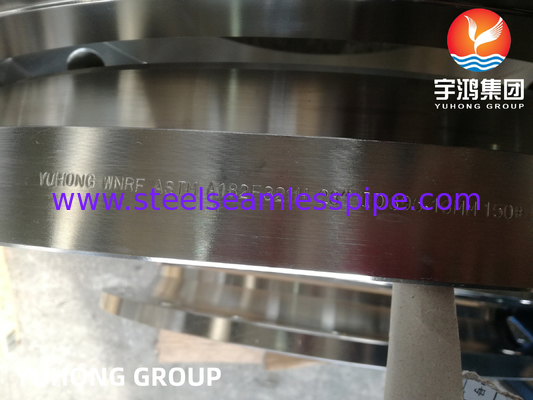

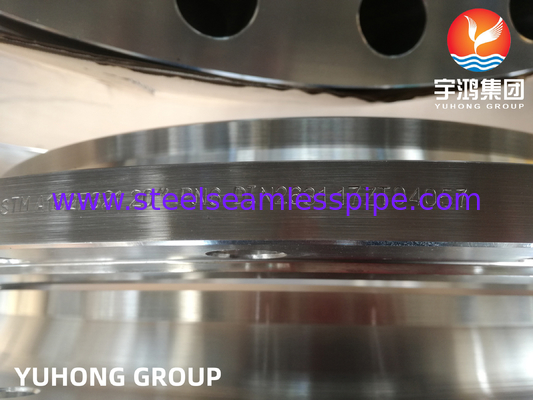

STM A182 F321H WNRF Stainless Steel Flanges Bridas
YUHONG supplies ASTM A182 F321H Stainless Steel Flanges.
ASTM A182 this specification covers forged low alloy and stainless steel piping components for use in pressure systems.
ASTM A182 F321H Flanges are made by bolting together two flanges with a gasket between them to provide a seal. It is an austenitic material which can be stabilized by the addition of Titanium and can be usually utilized for applications in temperatures up to 1,650 ℉. Also, F321 WN Flanges is an excellent choice for various applications ranging from oil refinery equipment to automative exhaust systems.
Specification Of ASTM A182 F321H
|
Technique Use in Forging |
Forged, Machined and Heat Treated |
|
Types |
WN Flange / SW Flange / Blind Flange / SO Flange / Plate Flange,etc |
|
Size |
1/2″ to 48″NB |
|
Class / Pressure |
150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
|
Flange Face Type |
Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
|
Flange Delivery Condition |
As Rolled, Normalizing Rolled, Thermomechanical Rolled / Formed, Normalizing Formed, Normalized and Tempered / Quenched and Tempered - BR / N / Q /T, Machined |
|
Flange Dimension Standard |
Standard - ANSI - ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, and ANSI B16.48 |
|
Other Testing |
Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS, Bureau of Indian Standards BIS Approved ETC |
|
Coating Flanges Face |
Zinc Plated, Yellow Transparent, Anti-rust Paint, Cold and Hot Dip Galvanized, Oil Black Paint |
|
Flange Packaging |
Ply-wooden Case /Iron Case/ Bundle with plastic Cap |

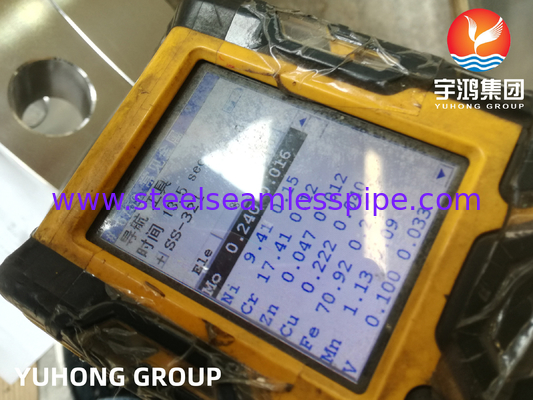

Chemical Composition Of ASTM A182 F321H
| ELEMENT | COMPOSITION (%) |
| Carbon | 0.04-0.10 |
| Manganese | 2.00 max |
| Phosphorus | 0.045 max |
| Sulfur | 0.03 max |
| Silicon | 1.00 max |
| Nickel | 9.0-12.0 |
| Chromium | 17.0-19.0 |
Mechanical Properties Of ASTM A182 F321H
| Grade | Density | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| F321H | 7.9 g/cm3 | MPa – 515 | MPa – 205 | 30% |
Applications
Food processing & Manufacturing
Petrochemical industry
Power generation
Natural gas Industry
Oil and gas industry
Waterworks & Manufacturing
