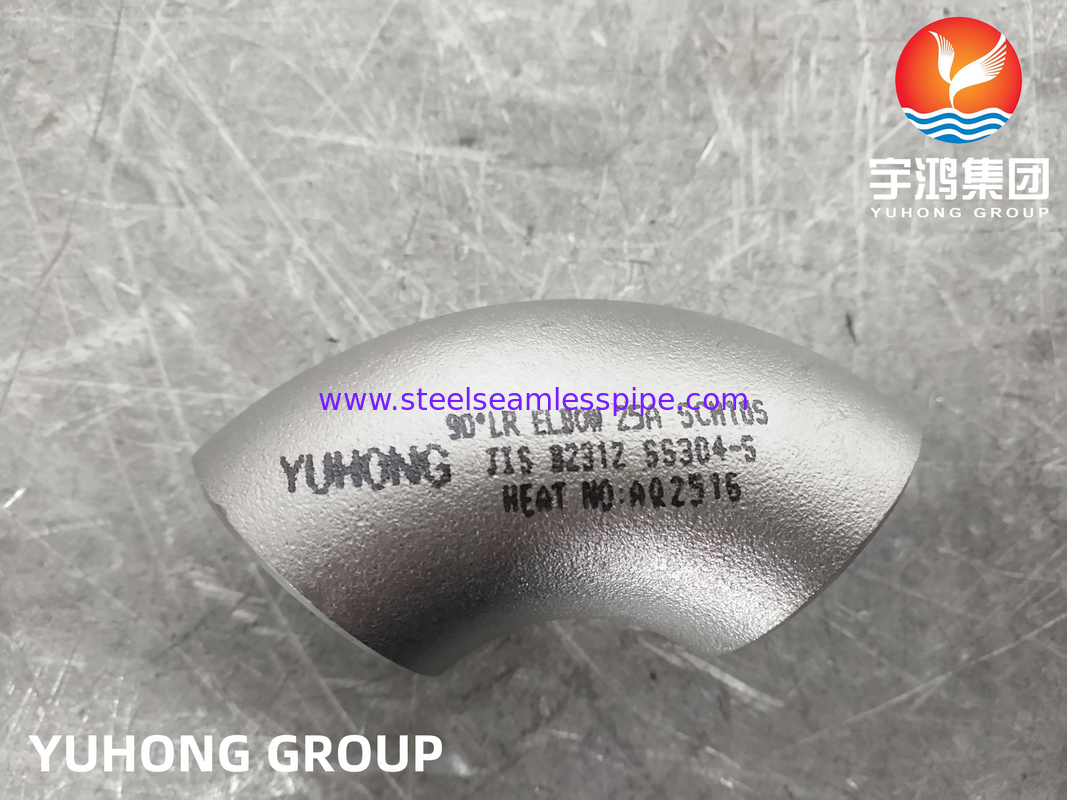

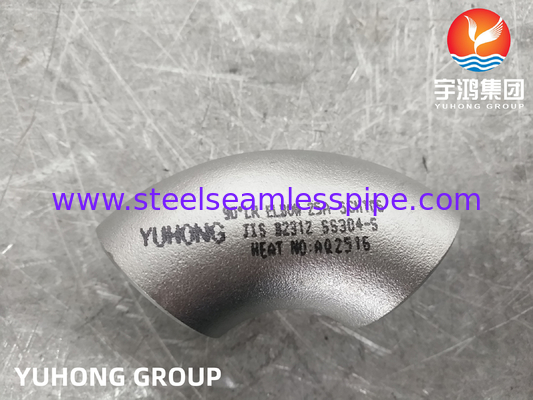

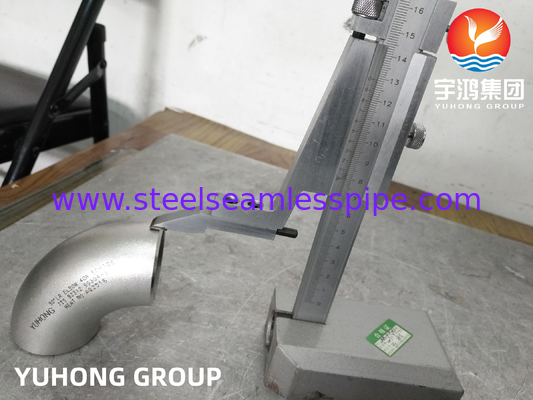

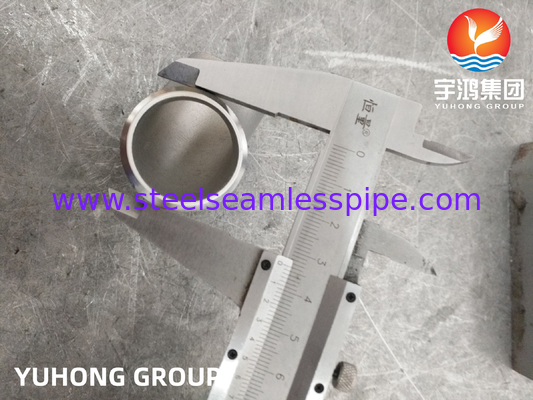

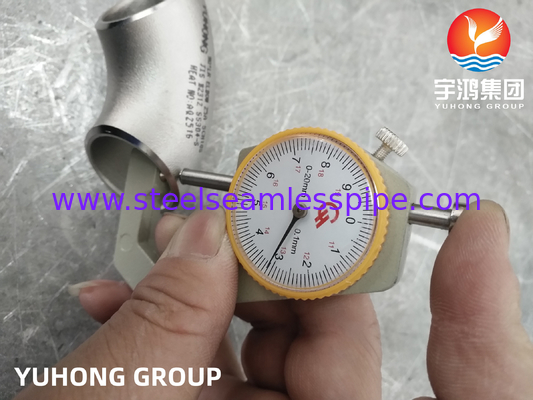

SS Pipe Fitting JIS B2312 SUS304 90 Degree LR Elbow For Petrochemical
YUHONG GROUP is engaged in manufacturing of a wide range of Butt Weld Fitting that is available in varied types such as L/R & S/R elbow, tee, concentric and eccentric reducers, reducing elbow & tee, cross and caps.
What is a 90 degree elbow?
A 90° elbow attaches readily to pipes of various materials like plastic, copper, cast iron, steel, lead, rubber etc. In other words, the 90° elbows are used to provide a joint between two pipes at right angles to each other. They are used as railing ends or corners on a level installation.
What is JIS B2312?
This standard specifies the steel and nickel chromium ferro alloy seamless pipe fittings to be fitted by butt welding,mainly to pressure service pipings 1), high pressure service pipings 2), high temperature service pipings 3), alloy steel pipings 4) stainless steel pipings 5) low temperature service pipings 6) and steel pipes for fired heaters 7) (hereafter referred to as “pipe fittings”).
Standard Dimensions Of JIS B2312 90 DEG Elbow
| NPS Of JIS B2312 Elbows | O.D. | Center to End | 90 Degree elbows Weight In KG | |||
| Normal Size Of Pipe | 90 Degree (A) | Kilogram/PC | ||||
| (A) | (B) | (D) | (Long) | (Short) | (Long) | (Short) |
| 15 | ½ | 21.7 | 38.1 | - | 0.08 | 0.05 |
| 20 | ¾ | 27.2 | 38.1 | - | 0.1 | 0.07 |
| 25 | 1 | 34 | 38.1 | 25.4 | 0.15 | 0.1 |
| 32 | 1¼ | 42.7 | 47.6 | 31.8 | 0.26 | 0.17 |
| 40 | 1½ | 48.6 | 57.2 | 38.1 | 0.35 | 0.24 |
| 50 | 2 | 60.5 | 76.2 | 50.8 | 0.64 | 0.43 |
| 65 | 2½ | 76.3 | 95.3 | 63.5 | 1.12 | 0.75 |
| 80 | 3 | 89.1 | 114.3 | 76.2 | 1.58 | 1.05 |
| 90 | 3½ | 101.6 | 133.4 | 88.9 | 2.17 | 1.45 |
| 100 | 4 | 114.3 | 152.4 | 101.6 | 2.91 | 1.94 |
| 125 | 5 | 139.8 | 190.5 | 127 | 4.49 | 2.99 |
| 150 | 6 | 165.2 | 228.6 | 152.4 | 7.09 | 4.73 |
| 200 | 8 | 216.3 | 304.8 | 203.2 | 14.4 | 9.61 |
| 250 | 10 | 267.4 | 381 | 254 | 25.4 | 16.9 |
| 300 | 12 | 318.5 | 457.2 | 304.8 | 38.1 | 25.4 |
| 350 | 14 | 355.6 | 533.4 | 355.6 | 56.7 | 37.8 |
| 400 | 16 | 406.4 | 609.6 | 406.4 | 74.3 | 49.5 |
| 450 | 18 | 457.2 | 685.8 | 457.2 | 94.2 | 62.8 |
| 500 | 20 | 508 | 762 | 508 | 116 | 77.7 |
| 550 | 22 | 558.8 | 838.2 | 558.8 | 141 | 94.1 |
| 600 | 24 | 609.6 | 914.4 | 609.6 | 168 | 112 |
| 650 | 26 | 660.4 | 990.6 | 660.4 | 198 | 132 |
| 700 | 28 | 711.2 | 1066.8 | 711.2 | 230 | 154 |
| 750 | 30 | 762 | 1143 | 762 | 264 | 176 |
| 800 | 32 | 812.8 | 1219.2 | 812.8 | 301 | 201 |
| 850 | 34 | 863.6 | 1295.4 | 863.6 | 340 | 227 |
| 900 | 36 | 914.4 | 1371.6 | 914.4 | 380 | 253 |
| 950 | 38 | 965.2 | 1447.8 | 965.2 | 425 | 283 |
| 1000 | 40 | 1016 | 1524 | 1016 | 471 | 314 |
| 1050 | 42 | 1066.8 | 1600.2 | 1066.8 | 518 | 346 |
| 1100 | 44 | 1117.6 | 1676.4 | 1117.6 | 570 | 380 |
| 1150 | 46 | 1168.4 | 1752.6 | 1168.4 | 623 | 415 |
| 1200 | 48 | 1219.2 | 1828.8 | 1219.2 | 677 | 452 |
Chemical Composition and Mechanical Property for 304
| Steel Grade | Chemical Composition | Mechanical Performance | |||||||||
| C(Max) | Si(Max) | Mn(Max) | P(Max) | S(Max) | Ni | Cr | N | Mo | Tensile Strength (Min) |
Yield Strength (Min) |
|
| Mpa | Mpa | ||||||||||
| 304 | 0.08 | 0.75 | 2.00 | 0.045 | 0.03 | 8.0–10.5 | 18.0–20.0 | 0.1 | / | 515 | 205 |
Stainless Steel 304 Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS304 | 1.4301 | S30400 | SUS 304 | 304S31 | 08Х18Н10 | Z7CN18‐09 | X5CrNi18-10 |
Applications
-Ship building
-Petrochemical
-Steel plant
-Refineries
-Chemical
-Fertilizers
-Power plant
-Oil & gas
-Offshore
