Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | JIS B2312 SUS304 Concentric Reducer |
| Minimum Order Quantity: | 10PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap/Woven Case |
| Delivery Time: | Depends on quantity |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000 tons per month |
| Specification: | JIS B2312 | Grade: | SUS304 |
|---|---|---|---|
| Color: | Silver | Type: | Buttweld |
| W.T.: | Sch 10S- XXS | Application: | Petroleum, Power, Chemical, Construction, Gas |
| High Light: | Stainless Steel Pipe Fitting JIS B2312,SUS304 Concentric Reducer,Stainless Steel Pipe Concentric Reducer |
||

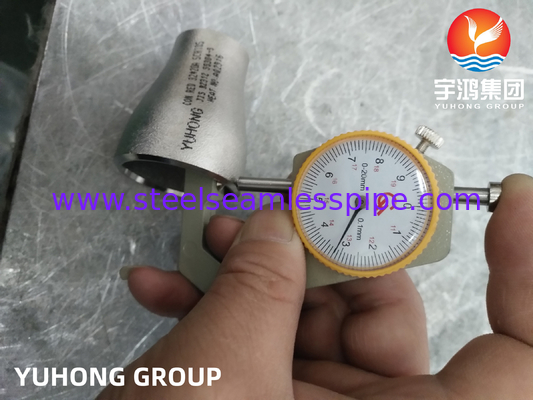

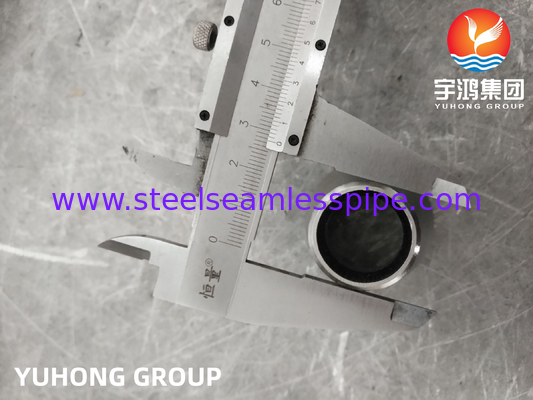

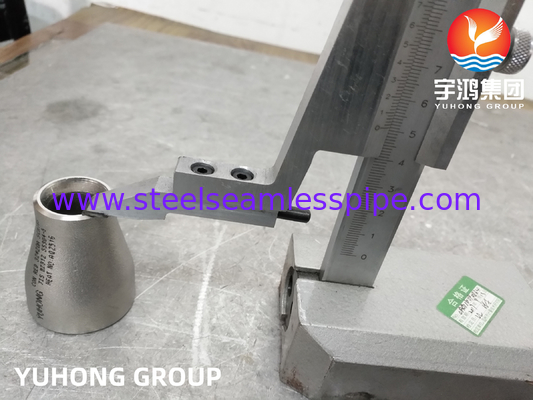

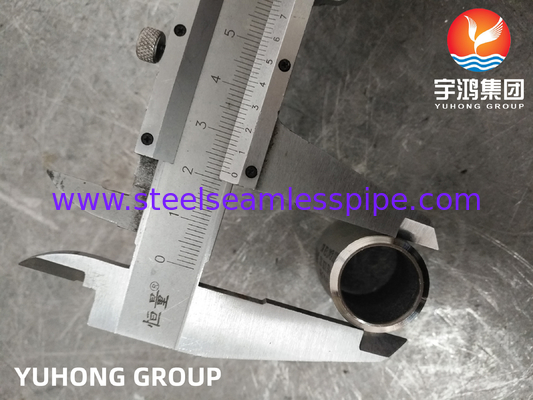

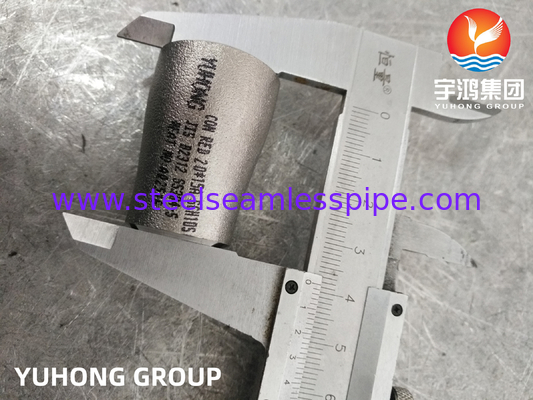

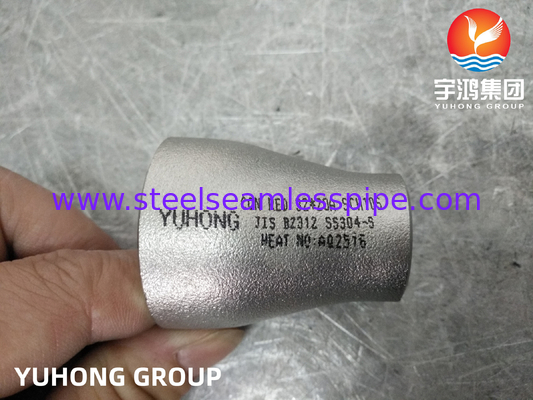

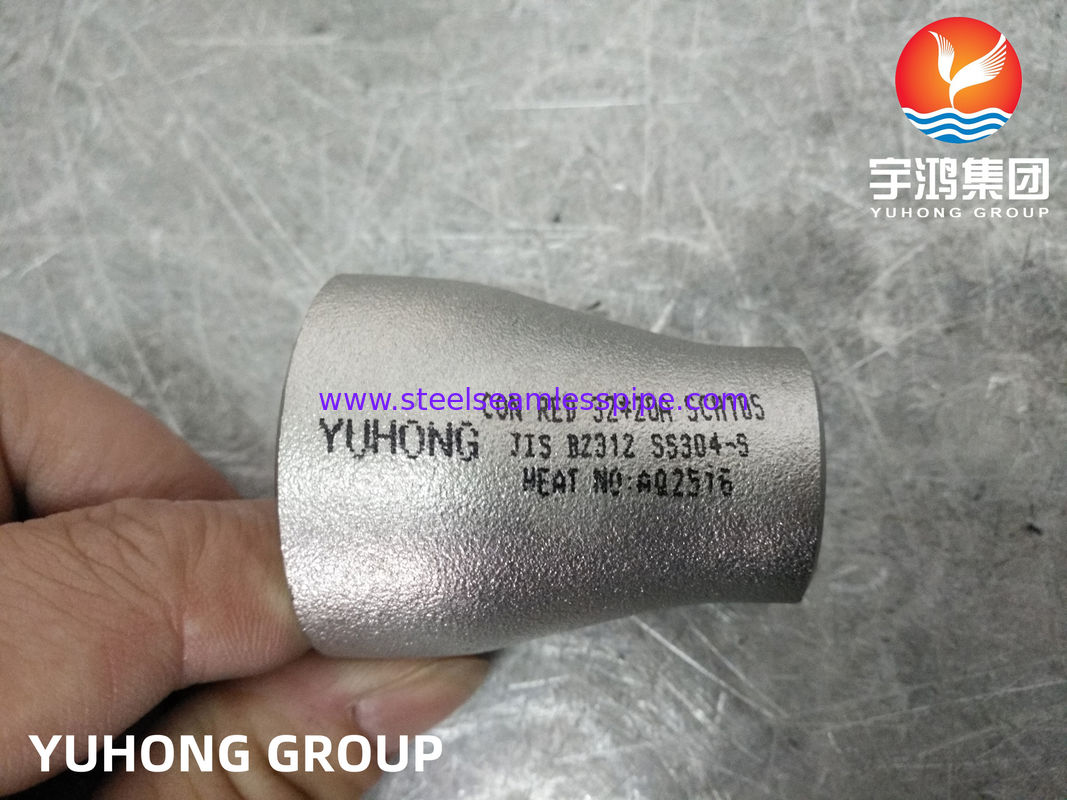

Stainless Steel Pipe Fitting JIS B2312 SUS304 1.4301 Concentric Reducer
Stainless steel 304 is one among the foremost suitable and demanded grade on Buttweld Fittings. We are using the very best quality material and modern technology for the assembly of those 304 Pipe Fittings.
We deliver the quality to our esteem client and hence referred to as the reliable vendor of SS 304 Pipe Fittings possess excellent mechanical properties,
It’s utilized in under temperature and possesses high corrosion resistant. It’s widely used for various applications. Thanks to its unique feature of corrosion-resistant, it contains 18% Chromium and 8 of Nickel content in it. SS 304 Pipe Fittings has excellent chemical properties, higher flexibility, spinning, forming, and have a broader finish.
Chemical Composition of SS 304
|
Grade |
C |
Mn |
Si |
P |
S |
Cr |
Ni |
|---|---|---|---|---|---|---|---|
|
SS 304 |
0.08 max |
2 max |
0.75 max |
0.045 max |
0.030 max |
18 – 20 |
8 – 11 |
Mechanical Properties
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|---|
| 304 | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Buttweld Concentric Reducer Specifications
| Outside Diameter (OD) | Seamless Pipe Concentric Reducer ( 1/2″～24″), ERW / Welded / Fabricated Pipe Concentric Reducer (1/2″～48″) |
|---|---|
| Dimensions | ASME/ANSI B16.9, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313, ASME B16.28 |
| Wall Thickness | SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS / 3mm – 40mm |
| Bending Radius | R=1D – 10D, 15D, 20D |
| Product’s Angle | Concentric Reducer |
| Important Grades | ASTM A403 WP 304 / 304L / 304H / 316 / 316L / 317 / 317L / 321 / 310 / 347 / 904L |
| Production Materials | Stainless Steel, Alloy Steel, Carbon Steel, Duplex, Nickel Alloys, Cupro Nickel, Low Temperature Steel |
| SS Melting Points | 1400-1450°C (WP304, WP304L), 1390-1440 °C (WP316L), 1370 – 1400 °C (WP316) |
Applications:
-Refineries
-Food Processing & Dairy
-Oil and Gas Industry
-Off-Shore Oil Drilling Companies
-Pharmaceutical Equipment
-Pulp & Paper Industry
-Power Generation
-Specialty Chemicals
-Sea Water Equipment
-Gas Processing
-Chemical Equipment
-Heat Exchangers
-Petrochemicals
-Pharmaceuticals
