Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM B466 UNS C70600 Copper Nickel Seamless Tube |
| Minimum Order Quantity: | 100KGS |
|---|---|
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 7days |
| Payment Terms: | L/C, T/T |
| Product Name: | Copper Nickel Alloy Seamless Tube | Standard: | ASTM, JIS, BS EN, GB/T |
|---|---|---|---|
| Material: | C12000, C44300, C68700, C70600, C71500, C71520, C71640 | O.D.: | 1/4" , 3/8", 1/2", 5/8", 3/4", 1", 1.1/4", Etc. |
| W.T.: | BWG 25,22,20,28,26,24,12,10 | Length: | Single Random, Double Random & Cut Length |
| Temper: | Soft Annealed (O60), Light Drawn (H55), Hard Drawn (H80), And Hard Drawn And End Annealed (HE80) | End: | Plain End, Beveled End |
| Application: | Condensers, Heat Exchangers, Power Plants, Shipbuilding And Repairs, Etc. | ||
| High Light: | Copper Alloy Seamless Tube,Cu90Ni10 Heat Exchanger Tube,ASTM B466 Copper Alloy Tube |
||

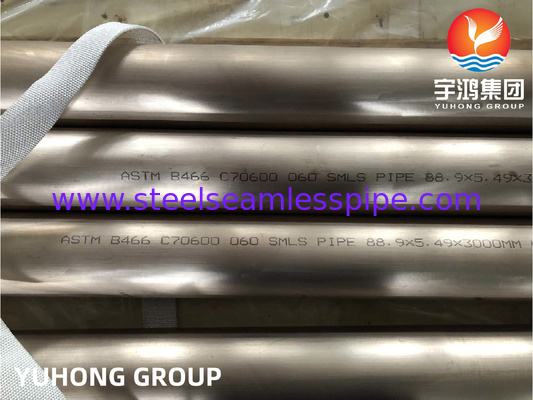

ASTM B466 UNS C70600 Copper Nickel Alloy Seamless Tube for Heat Exchanger and Condenser
ASTM B466 C70600 is a specification for seamless copper-nickel pipes and tubes.This specification covers seamless copper-nickel pipes and tubes in nominal pipe sizes ranging from 1/2 inch to 6 inches. The material is composed of copper alloy C70600, which has a chemical composition of approximately 90% copper, 10% nickel, and trace amounts of iron and manganese.
Copper-nickel alloys are known for their excellent resistance to corrosion and erosion in seawater and other harsh environments. They are also known for their good thermal conductivity and resistance to biofouling. ASTM B466 C70600 pipes and tubes are commonly used in a variety of marine applications, including shipbuilding, offshore oil and gas production, and desalination plants. They are also used in heat exchangers, condensers, and other applications where corrosion resistance is important.
Specification
| ASTM B466 C70600 Copper Nickel Seamless Pipe & Tubes Specification and Grade |
ASTM B111/ASME SB111, ASTM B466/ASME SB466 C10100, C10200, C10300, C10800, C12000, C12200, C14200, C19200, C23000, C28000, C44300, C44400, C44500, C60800, C61300, C61400, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, And C72200 |
| ASTM B466 C70600 Copper Nickel Seamless Pipe & Tubes Application |
|
| ASTM B466 C70600 Copper Nickel Seamless Pipe & Tubes Type | Seamless |

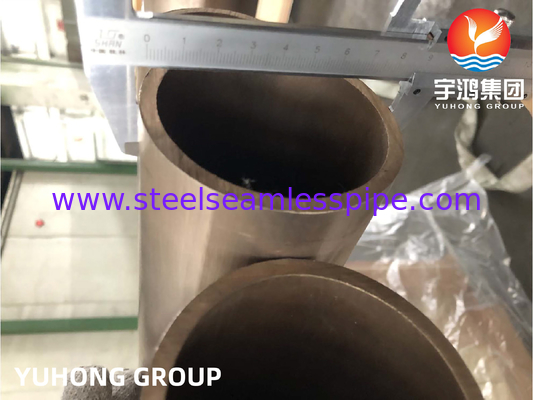

| ASTM B466 C70600 Copper Nickel Seamless Pipe & Tubes Outer Diameter Size | 1/4" TO 1 1/4" 6.35 MM OD TO 114.3 MM OD |

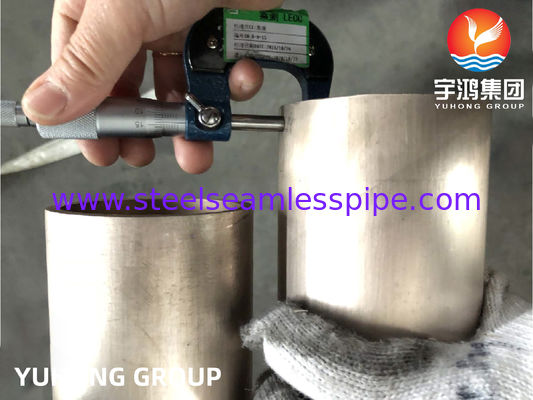

| ASTM B466 C70600 Copper Nickel Seamless Pipe & Tubes Wall Thickness | BWG 25,22,20,28,26,24,12,10 |
| ASTM B466 C70600 Copper Nickel Seamless Nickel Seamless Pipe & Tubes Length | Single Random Length, Double Random Length And Customize Size |
| ASTM B466 C70600 Copper Nickel Seamless Nickel Seamless Pipe & Tubes Pipe Ends | Plain Ends / Beveled Ends |
| ASTM B466 C70600 Copper Nickel Seamless Pipe & Tubes Delivery Conditions | As Rolled, Cold Drawn, Hot Finish, Stress Relieved, Annealed, Hardened, Tempered |
| ASTM B466 C70600 Copper Nickel Seamless Pipe & Tubes Other Testing | NACE MRO175, Hardness Test, Flare, Hydrostatic Test, Eddy Current test, Grain Size Test, Eddy Current, Annealed, Tempered, Stress Relieved etc. |
| ASTM B466 C70600 Copper Nickel Seamless Pipe & Tubes Dimension | All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM and ASME |
| ASTM B466 C70600 Copper Nickel Seamless Pipe & Tubes Packaging | Loose / Bundle / Wooden Pallet / Wooden box-a / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
| ASTM B466 C70600 Copper Nickel Seamless Pipe & Tubes Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS etc. |
Copper Nickel Pipe Standards and Composition
Material Grades
| Material Designation | Corresponding Material Symbol | ||||
| ASTM B111 | BS2871 | JIS H3300 | DIN1785 | GB/T 8890 | |
| Copper Nickel | C70600 | CN102 | C7060 | CuNi10Fe1Mn | BFe10-1-1 |
| C71500 | CN107 | C7150 | CuNi30Mn1Fe | BFe30-1-1 | |
| C71640 | CN108 | C7164 | CuNi30Fe2Mn2 | BFe30-2-2 | |
| C70400 | — | — | — | BFe5-1.5-0.5 | |
| — | — | — | — | B7 | |
| Aluminium Brass | C68700 | CZ110 | C6870 | CuZn20AL2 | HAL77-2 |
| Admiralty Brass | C44300 | CZ111 | C4430 | CuZn28Sn1 | HSn70-1 |
| Boric Brass | — | — | — | — | Hsn70-1B |
| — | — | — | — | Hsn70-1 AB | |
| Arsenical Brass | — | CZ126 | — | — | H68A |
| Brass Tube | C28000/C27200 | CZ108 | C2800/C2700 | CuZn36/CuZn37 | H65/H63 |
Standard: ASTM B111, B466
Chemical Composition & Mechanical Properties
| Steel Grade | Cu | Sn | Al | As | Ni | Fe | Mn | Pb | Zn |
| C70400 | Remain | - | - | - | 4.8-6.2 | 1.3-1.7 | 0.3-0.8 | 0.05 max | 1.0 max |
| C70600 | Remain | - | - | - | 9.0-11.0 | 1.0-1.8 | 1.0 max | 0.05 max | 1.0 max |
| C71500 | Remain | - | - | - | 29.0-33.0 | 0.4-1.0 | 1.0 max | 0.05 max | 1.0 max |
| C71640 | Remain | - | - | - | 29.0-32.0 | 1.7-2.3 | 1.5-2.5 | 0.05 max | 1.0 max |
Applications
Copper Nickel tubes ASTM B111 C70600 are widely used in below fields:
Steam Turbines
Seawater Desalination Equipments
Petrochemical Plants
Power Plants
Coolers
Boiler & shell tubes heat exchnager
Oil Refineries
Shipbuilding&repair
offshore engineering
Marine air cooler.
