Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ISO9001 |
| Model Number: | ASTM A516 / ASME SA516 Gr.70 Carbon Steel Elliptical Head |
| Minimum Order Quantity: | 500kgs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Iron / Wooden Case |
| Delivery Time: | Depends on quantity |
| Payment Terms: | T/T, L/C at sight |
| Supply Ability: | 10000 tons per month |
| Product Name: | Elliptical Head | Standard: | ASTM A516 / ASME SA516 |
|---|---|---|---|
| Base Material: | Carbon Steel Gr. 70 | O.D.: | 89mm To 10000mm |
| W.T.: | 2mm To 300mm | Type: | Cap |
| Technics: | Forged | Connection: | Welding |
| Process: | Hot Form | Applications: | Oil, Chemical Industry/Petrochemicals /Tank /Food |
| High Light: | Carbon Steel Elliptical Head,ASTM A516 Heat Exchanger Parts,Petrochemicals Tank Elliptical Head |
||

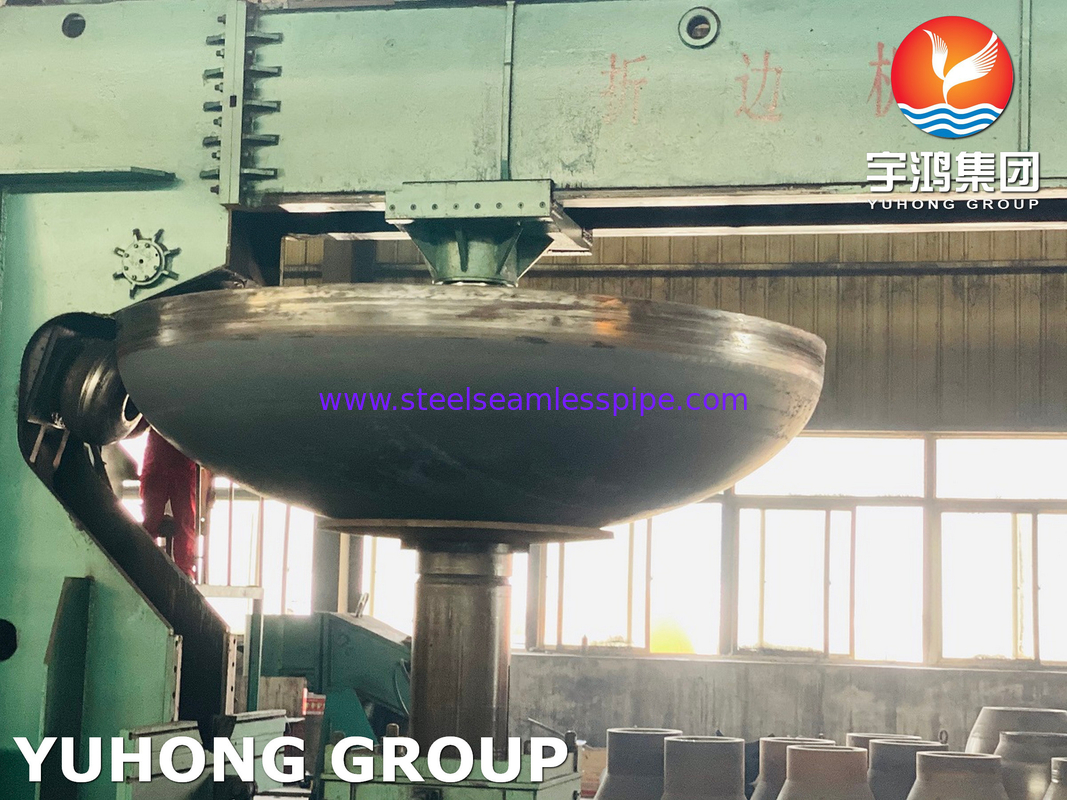

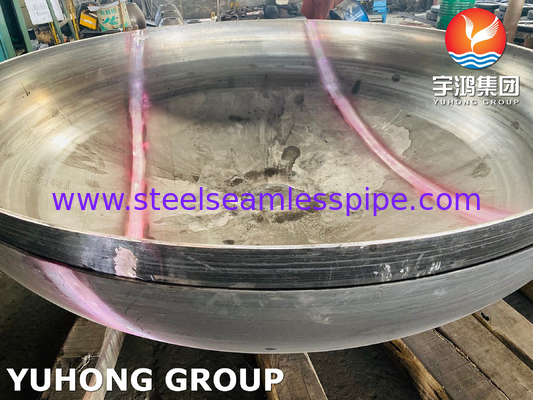

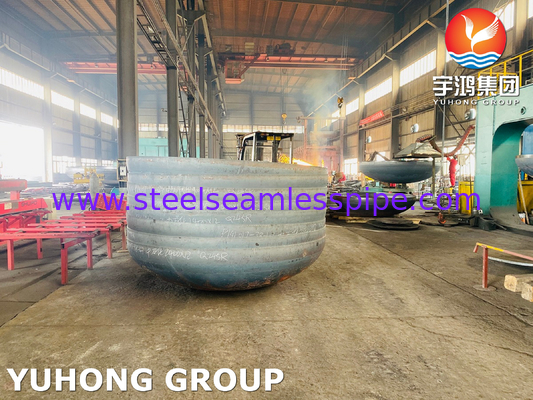

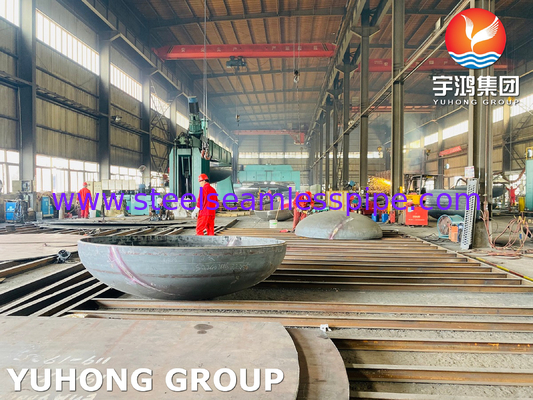

ASTM A516 Gr.70 Carbon Steel Elliptical Head Food Oil Gas Petrochemicals Tank
What is Head?
Head, also called end cap, is a component used to close the end of a vessel to isolate its internal and external media. According to the shape of head surface, it can be divided into convex, conical, flat and combined shapes. According to different geometric shapes, it can be divided into spherical, elliptical, disc, spherical crown, conical shell and flat cap, etc. Among them, spherical, elliptical, disc and spherical crown type heads are also collectively called convex heads. Materials include carbon steel, stainless steel, alloy steel, aluminum, titanium, copper, nickel alloy, etc. The executive standards of heads are GBT25198, GBT12459, GBT13401, DLT695, GD87 for electric power and SH3408, SH3409 for petrochemical.
Chemical Composition of ASTM A516 Grade 70
| Composition | Percentage % | Composition | Percentage % |
| C | 0.10/ 0.22 | Cu | 0.3 |
| Si | 0.6 | Ni | 0.3 |
| Mn | 1/ 1.7 | Mo | 0.08 |
| P | 0.03 | Nb | 0.01 |
| S | 0.03 | Ti | 0.03 |
| Al | 0.02 | V | 0.02 |
| Cr | 0.3 |
Mechanical properties of ASTM A516 Grade 70
| Properties | Value |
| Tensile Strength (N/mm2) | 510/ 650 |
| Yield stress/ min (N/mm2) | 335 |
Equivalent of ASTM A516 Grade 70
| Standard | ASTM A516 Grade 70 |
| ASME | ASME SA516 Grade 70 |
| DIN Standard | - |
| British Standard | BS1501-224-490A/B |
| European Norm | EN10028 P355GH |
Applications
Oil
Gas
Chemical
Petrochemicals
Tank
Heat exchanger
