Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | ASTM A213, ASME SA213 TP444 |
| Minimum Order Quantity: | 100 KGS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-Wooden Case /Iron Case/ Bundle With Plastic Cap |
| Delivery Time: | 5 - 90 Work Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | According to Clients' Requirement |
| Standard: | ASTM A213, ASME SA213 | Material Grade: | TP444 |
|---|---|---|---|
| Product Name: | Stainless Steel U Bend Tube | Type: | Seamless |
| NDT: | HT, ET, UT , PT | Applications: | Boiler, Superheater, Heat-Exchanger, And Condenser Tubes |
| High Light: | TP444 U Bend Tube,ASTM A213 Stainless Steel U Tube,Stainless Steel Seamless U Bend Tube |
||
Heat Exchanger Tube, ASTM A213 TP444, 1.4521 Stainless Steel Seamless U Bend Tube
As a ferritic stainless steel, TP444 isn't susceptible to stress corrosion cracking. Annealed stainless steel TP444 is ductile and non-heat treatable and can be readily deep drawn and spin formed, provides excellent formability and stretch forming. TP444 doesn't harden excessively during cold working. This steel is usually used in food processing, automotive components and hot-water tanks and heat exchanger tubes, etc.
TP444 Stainless Steel U Bend Tubes have an excellent chemical composition making them suitable for a wide range of applications and environments. These tubes have high levels of chromium, molybdenum, and nitrogen which provide the strength, formability, and corrosion protection.
Equivalent Grades:
| Grade | WERKSTOFF NR. | UNS | GB | JIS |
| SS 444 | 1.4521 | S44400 | 019Cr19Mo2NbTi | SUS444 |
Processing:

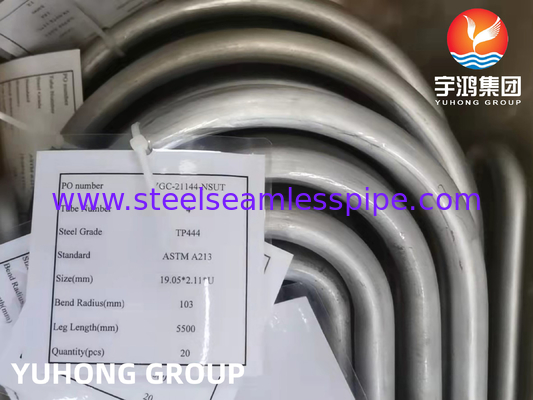

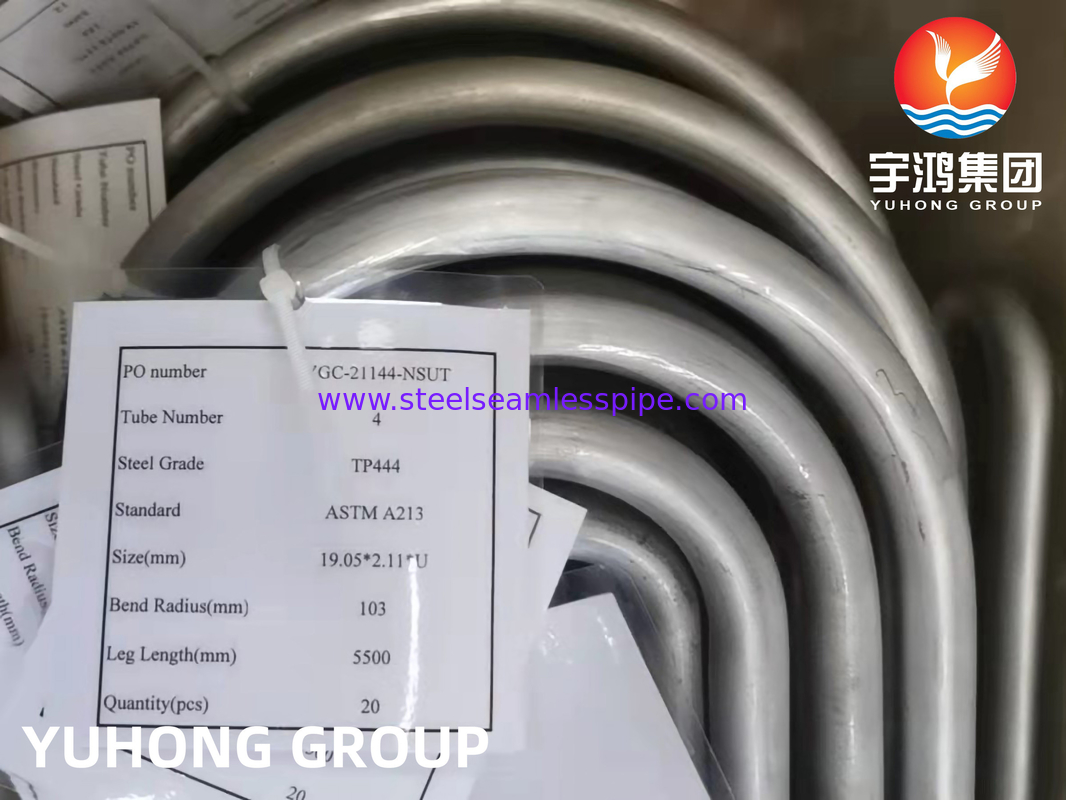

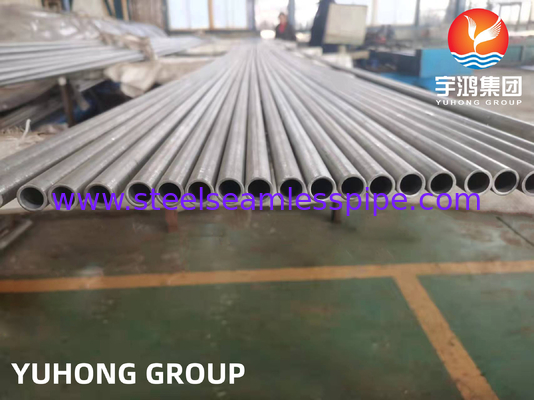

straight tubes - bending before 100% flaw detection - reliable bending machine and precision bending mould - bending after the U-shaped part of the electric heating stress relief annealing - bending after 100% water pressure
Chemical Composition:
| C | Si | Mn | P | S | Cr | Mo | Ti | Nb |
| 0-0.025 | 0-1.0 | 0-1.0 | 0-0.04 | 0-0.015 | 17.5-18.5 | 1.8-2.0 | 0.12-0.4 | 0.25-0.5 |
Mechanical properties:
| Tensile strength | 415 MPa--60200 psi |
| Yield strength ( 0.2%) | 275 MPa--39900 psi |
| Elastic modulus | 200 GPa--29000 ksi |
| Shear modulus | 80-83 GPa (11600-12000 ksi) |
| Poisson’s ratio | 0.27-0.3 |
| Elongation | 20% |
| Hardness, Rockwell B | 95 |
Applications:
Boilers & Heat Exchangers
Power Generation Plant
Renewable Energy Systems
Pulp and Paper Plants
Process Piping Equipments
Pharmaceutical Industries
Food and Beverage Equipments
Oil and Gas Plants
Water/waste Equipments
Marine Plants
