Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | ASTM A182 F44 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap/Woven Case |
| Delivery Time: | Depends on quantity |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000 tons per month |
| Specification: | ASTM A182, ASME SA182 | Grade: | F44 |
|---|---|---|---|
| Pressure: | Class 150 To Class 15000 | Flange Type: | WN, SO , BL , SW, SPECTACLE, LJP , ORINFICE |
| Non Destructive Test: | Ultrsonic Test -ASTM E213, MT, PT | Size: | 1/4" NPS TO 48" NPS |
| High Light: | Welding Neck RF Forged Flange,SMO254 Forged Flange,S31254 FF Steel Flanges |
||

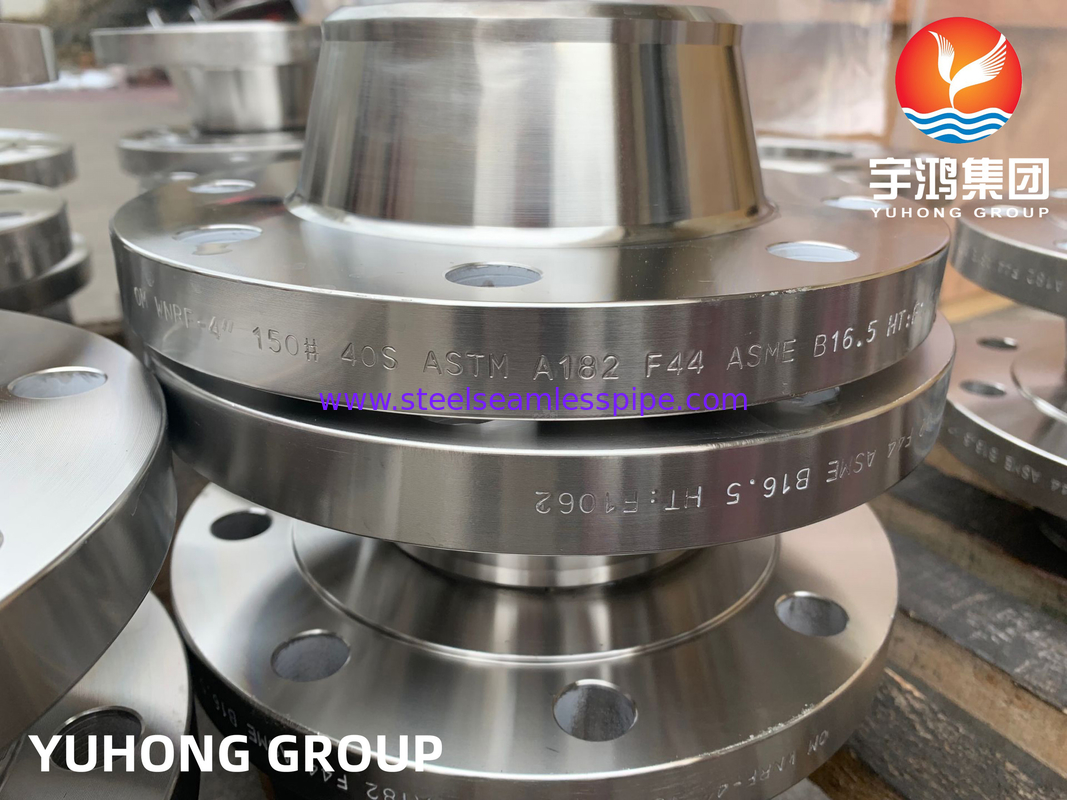

B16.5 Forged Flange ASTM A182 F44 S31254 SMO254 Welding Neck RF FF
ASTM A182 F44 Flange is described as a 6% Mo Flanges. The steel combines moderate mechanical strength (typically over 300 MPa yield strength) and high ductility with excellent corrosion resistance in seawater and a variety of industrial environments. Typically the alloy has a PREn(Pitting Resistance Equivalent) of 42-44 which ensures that the resistance to pitting corrosion is high.
F44 Chemical Composition %
| C | Si | Mn | P | S | Cr |
| ≤0.020 | ≤0.80 | ≤1.00 | ≤0.03 | ≤0.010 | 19.5~20.5 |
| Ni | Mo | N | Cu | Fe | Nb |
| 17.5~18.5 | 6~6.5 | 0.18~0.22 | 0.50~1.00 | / | / |
ASTM A182 F44 Flange Range
|
ASTM A182 F44 Flange Specification |
ASTM A182 / ASME SA182 |
|
ASTM A182 F44 Flange Manufacturing Process |
Hot Forging / Rolling / Machining |
|
ASTM A182 F44 Flange Other Grades |
202 / 304 / 304L / 304H / 309S / 310S / 316 / 316L / 316Ti / 317L / 321 / 321H / 347 / 347H / 904L etc. |
|
ASTM A182 F44 Flange Outer Diameter |
1/2" NB TO 64" NB |
|
ASTM A182 F44 Flange Pressure Class |
Class 150#, Class 300#, Class 400#, Class 600#, Class 900#, Class 1500#, Class 2500# or As Per Custom Requirement |
|
ASTM A182 F44 Flange Schedule |
Sch 10s TO Sch XXS or As Per Custom Requirement |
|
ASTM A182 F44 Flange Facing |
Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
ANSI Flanges or ASME Flanges?
Some customers call us asking for ANSI Flanges and others call us asking for ASME Flanges. We even have customers calling us to ask if there is a difference between ANSI and ASME Flanges. In reality there is no difference. ASME is ‘The American Society Of Mechanical Engineers’ and ANSI is the ‘American National Standards Institute’. The ANSI standards (i.e. ANSI B16.5 or ANSI B16.47) are developed by ASME working under procedures accredited by ANSI and hence these standards are adopted by ANSI to become the standards for ANSI Flanges.
PT:
Mechanical Properties:
|
Density
|
Melting Point
|
Tensile Strength
|
Yield Strength (0.2%Offset)
|
Elongation
|
|
8 g/cm3
|
1320-1390 ℃
|
650
|
300
|
35 %
|
Equivalent Material:
|
STANDARD
|
WERKSTOFF NR.
|
UNS
|
SIS
|
AFNOR
|
EN
|
|
SMO 254
|
1.4547
|
S31254
|
2378
|
Z1 CNDU 20.18.06Az
|
X1CrNiMoCuN20-18-7
|
Applications:
-Oil and Gas Industries
-Food Processing Industries
-Equipments
-Pipeline
-Power Industries
-Ship Building Industries
-Paper Industries
-Cement Industries
-Chemical Industries
