Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | TP316L / 1.4404 |
| Minimum Order Quantity: | 100 KGS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-Wooden Case /Iron Case/ Bundle With Plastic Cap |
| Delivery Time: | 7 - 90 Work Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | According To Customers' Request |
| Standard: | ASTM A213 / ASME SA213 | Material Grade: | TP316L / 1.4404 |
|---|---|---|---|
| Type: | Seamless | Length: | 6m Or As Your Requirements |
| Surface: | Annealing,Pickling | Application: | Construction,Decoration,Industry,boiler,Chemical |
| High Light: | ASTM A213 Stainless Steel Round Tube,TP316L Stainless Steel Seamless Boiler Tube,Heat Exchangers Seamless Tube |
||

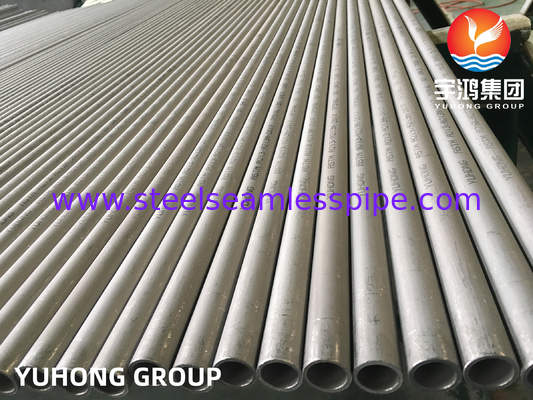

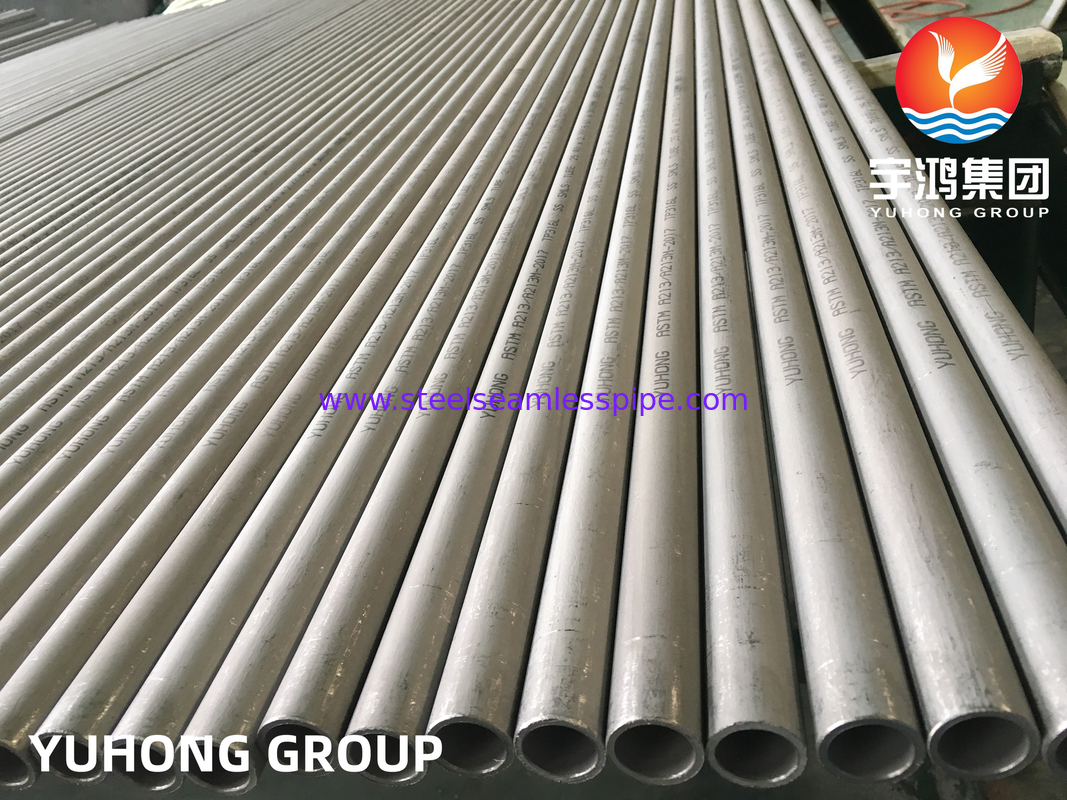

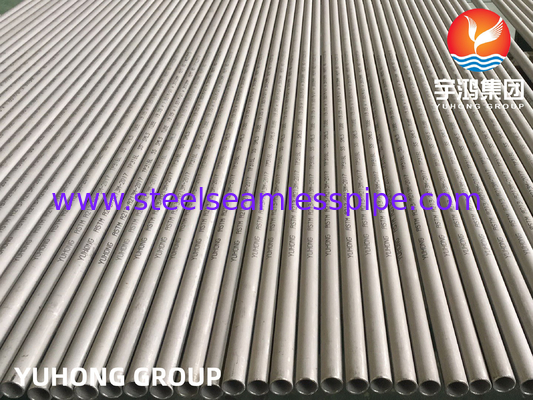

ASTM A213 TP316L Stainless Steel Seamless Tube For Heat Exchangers And Boilers
ASTM A213 TP316L Stainless Steel Seamless Tubes is an 18/8 austenitic steel which is improved by means of an adding up of 2.5% Molybdenum in order to offer higher corrosion resistance. These ASTM A213 TP316L Seamless Tubes are used for different applications such as in Process engineering, Medical implants, Condensers, Heat exchangers, Semiconductors, etc.. These Stainless Steel Seamless Tubes are also used in varied industries like in Commercial, Chemical Processing, Oil & Gas, and other high performance related industries.
| Specification | ASTM A213 / ASME SA213 |
| Size | 1 / 8" NB - 24" NB |
| Types | Seamless - Hot Rolled / Cold Drawn |
| Length | Single Random, Double Random & Required Length |
| OD | 6 mm up to 914.4 mm OD |
| Schedule | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Form | Round Tubes, Square Tubes, Rectangular Tube, Coiled Tubes, “U” Shape,Etc. |
| End | Plain End, Beveled End, Treaded |
Equivalent Material:
| MATERIAL | UNS NO | OLD BRITISH | EN/ EURONORM | SS | JIS | |
| BS | NO | NAME | ||||
| TP316L | S31603 | 316S11 | 1.4404 | X2CrNiMo17-12-2 | 2348 | SUS 316L |
Chemical Composition:
| C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| 0.035 max | 2 max | 1 max | 0.045 max | 0.03 max | 16 - 18 | 2 - 3 | 10 - 14 | 68.89 min |
Mechanical Properties:
| Tensile & Hardness Tests | Requirements |
| Tensile Strength min. MPa [ksi] |
485 [70] |
| Yield Strength min. MPa [ksi] |
170 [25] |
| Elongation in 2", min. % |
35 |
| Brinell Hardness max. HBW |
192 |
| Vickers Hardness max. HV |
200 |
| Rockwell Hardness max. HRB |
90 |
Applications:
Plumbing
Water Supply Systems
Power Plant
Paper & Pulp Industry
Fabrication Industry
Food Processing Industry
Oil and Gas Tubeline
Chemical Industry
