Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | TUV, API, PED, ISO, BV, SGS, GL, DNV |
| Model Number: | ASTM B564 Inconel 625 / 2.4856 / UNS N06625 WNRF Flange |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | PLY-WOODEN CASE OR PALLET |
| Delivery Time: | 7 DAYS |
| Payment Terms: | L/C,T/T |
| Product Name: | Stainless Steel Flange | Standard: | ASTM A182, ASME SA182 |
|---|---|---|---|
| Dimension: | ASME/ANSI B16.5, B16.47 | Material: | Stainless Steel 304 / 304L / 316L / 310S / 321 / 904L |
| Flange Type: | WN, SO, BL, LWN, LJ | Flange Surface: | FF, RF, RTJ |
| Class: | 150#, 300#, 600#, 900#, 1500#, 2000#, 3000#, 6000#, 9000# | Packing: | Plywood Case Or Pallet |
| Manufacturing Way: | Forging | ||
| High Light: | Forging Stainless Steel Flanges,F316L Weld Neck Flange,ASTM A182 Weld Neck Flange |
||

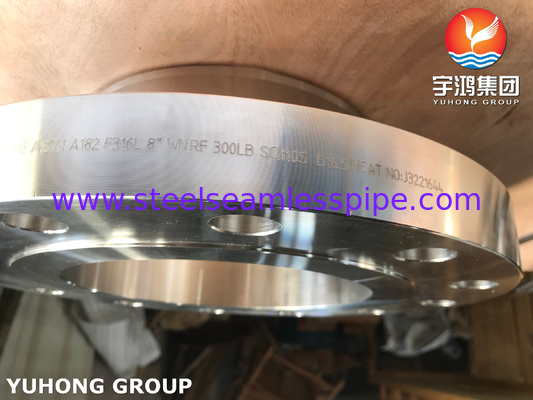

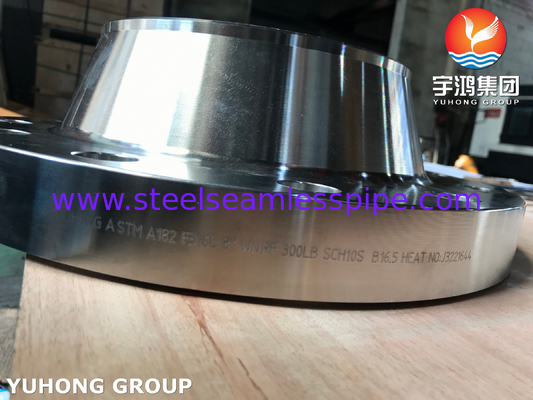

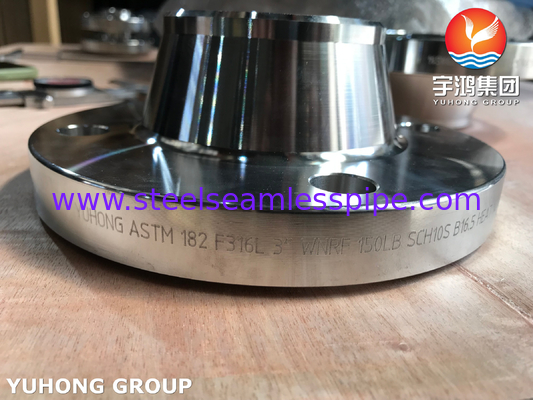

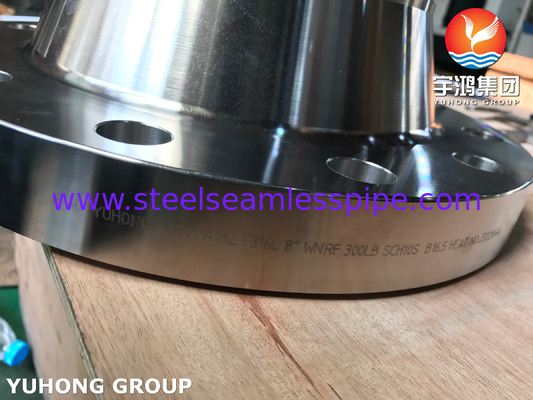

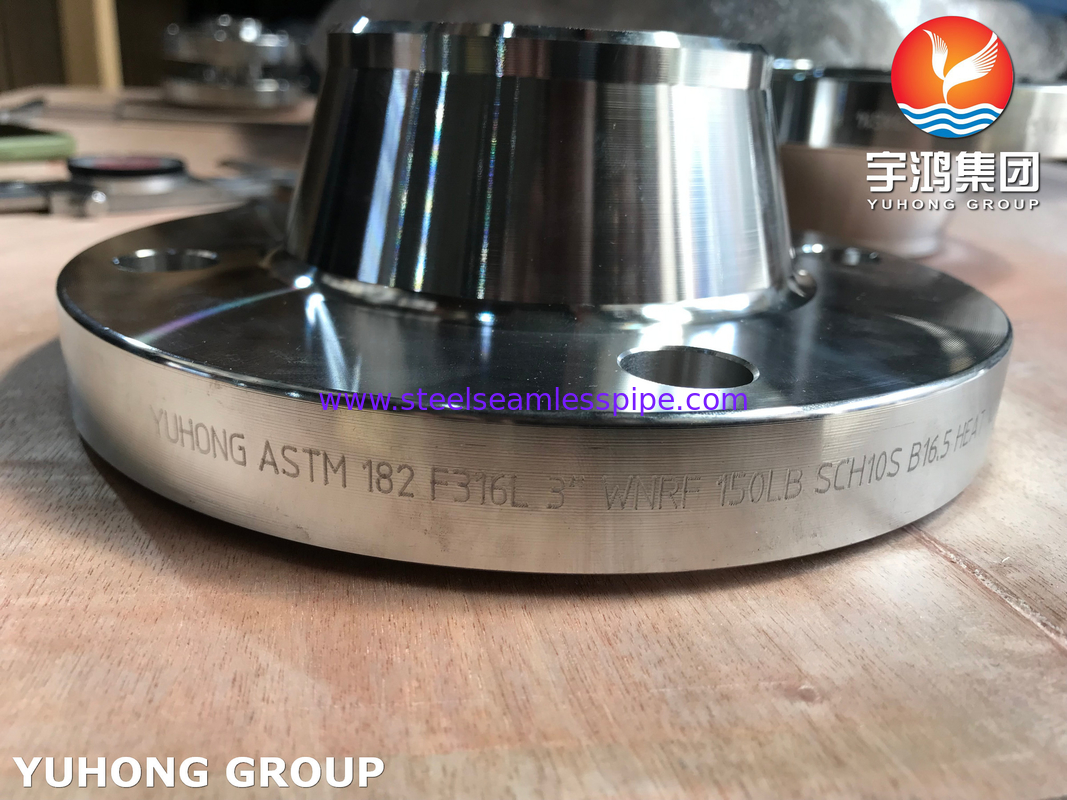

Stainless Steel Flanges , ANSI / ASME B16.5 ASTM A182 F316L Weld Neck Flange
ASTM A182 F316L WNRF Flange is a type of flange made from stainless steel grade 316L. The letters "WNRF" stand for "Weld Neck Raised Face," which is a common type of flange connection. This type of flange is designed to be welded to a pipe or fitting and is commonly used in high-pressure applications.
The ASTM A182 specification covers forged or rolled alloy and stainless steel pipe flanges, forged fittings, and valves and parts for high-temperature service. The F316L designation indicates that the flange is made from the 316L grade of stainless steel, which is a low-carbon, molybdenum-bearing austenitic stainless steel with improved corrosion resistance.
Equivalent Grades for ASTM A182 F316L Flange
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316L | 1.4404 /1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
Forged and Plate Flanges
| Products | |
| ASTM A182 SS 316L Slip-On Flanges | ASTM A182 SS 316L Threaded Flanges |
| ASTM A182 SS 316L Weld Neck Flanges | ASTM A182 SS 316L Socket Weld Flanges |
| ASTM A182 SS 316L Blind Flanges | ASTM A182 SS 316L Reducing Flanges |
| ASTM A182 SS 316L Lap Joint Flanges | ASTM A182 SS 316L Plate Flanges |
| ASTM A182 SS 316L Orifice Flanges | ASTM A182 SS 316L Forged Flanges |
| ASTM A182 SS 316L Ring Type Joint Flanges | ASTM A182 SS 316L Square Flanges |
| ASTM Standard Stainless Steel 316L Flange | 150# Stainless Steel 316L Flange, Class 300 Lbs SS 316L Flange, 600# Stainless Steel S31603 Flange, ANSI B16.5 Stainless Steel 316L Class 900 Lbs Flange, SS 316L 1500# Flange, Stainless Steel 316L 2500 Lbs Flange, ANSI B16.47 Series A or MSS SP-44 SS 316L Flange, ANSI B16.47 series B or API-605 Stainless Steel 316L Flange, ANSI B16.48 Stainless 316L Flange, ANSI B16.36 Steel 316L Flange |
| DIN Standard Stainless Steel 316L Flange | Stainless Steel 316L DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638, DIN 2673 Flange |
| JIS Stainless Steel 316L Flange | Stainless Steel 316L JIS Flange, JIS B2220 5K / JIS B2220 10K / JIS B2220 16K / JIS B2220 20K SS 316L Flange |
| EN Stainless Steel 316L Flange | Stainless Steel 316L EN Flange, EN 1092-1 SS 316L Flange |
| BS 4504 Stainless Steel 316L Flange | BS4504 PN 6, BS 4504 PN 10, BS4504 PN 16, BS4504 PN 25, BS4504 PN 40, BS 4504 PN 64, BS 4504 PN 100, BS 4504 PN 160, BS 4504 PN 250 Stainless Steel 316L Flange |
| BS Stainless Steel 316L Flange | BS 10 Stainless Steel 316L Flange, SS 316L BS Table D Flange, 316L Steel BS Table E Flange, Stainless Steel S31603 BS Table F Flange, Stainless 316L BS Table H Flange |
ASTM A182 F316L Flange Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 - 18.00 | 2.00 - 3.00 | 10.00 - 14.00 | 68.89 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Applications
1. Reverse osmosis desalination equipment and pumps
2. FGD Scrubbers
3. Chemical process tanks and pipelines
4. Seawater heat exchangers
5. Tall oil distillation columns and packing
6. Offshore oil and gas production equipment
7. Pulp bleaching plant washers, vats, press rolls and pipelines
