| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | ASTM B111 UNS C12200 |
| Minimum Order Quantity: | 100 KGS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-Wooden Case /Iron Case/ Bundle with Plastic Cap |
| Delivery Time: | 5 - 90 Work Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | According to Clients' Requirement |
| Standard: | ASTM B111, ASME SB111 | Material Grade: | UNS C12200 |
|---|---|---|---|
| Product Name: | Copper Alloy Seamless Tube | Outside Diameter: | 2mm~914mm |
| Thickness: | 0.5mm-80mm | Length: | 1-12m,or As Required |
| Technique: | Cold Drawn | Shape: | Round |
| NDT: | ET, UT,HT, PT | Applications: | Heat Exchanger, Boiler, Petroleum, Condenser, Etc. |
| High Light: | Copper Alloy Seamless Heat Exchanger Tube,UNS C12200 Copper Alloy Seamless Tube,Copper Alloy Tube ASTM B111 |
||

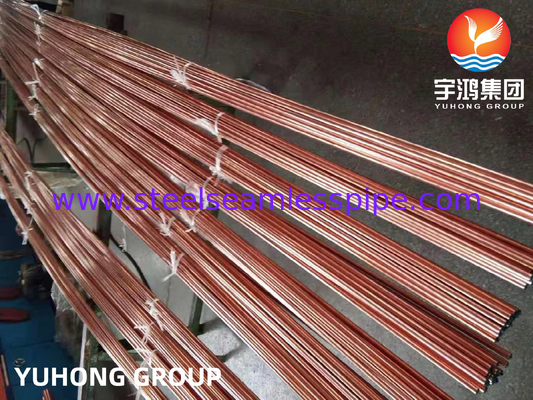

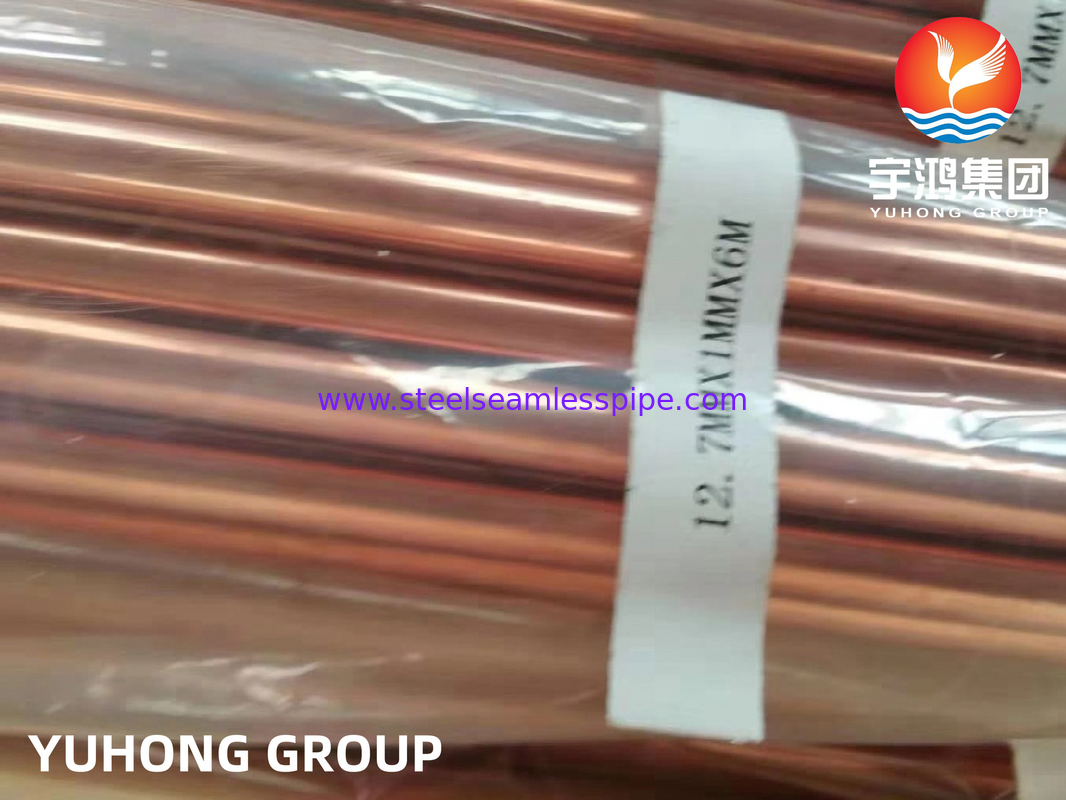

ASTM B111 UNS C12200 Copper Alloy Seamless Tube Heat Exchanger Tube
ASTM B111 UNS C12200 Copper Alloy Seamless Tubes have excellent hot and cold working properties. UNS C12200 Copper Alloy Tube is performed at a hot working temperature ranging from 760 to 871 degrees C (1400 to 1600 degrees F). It has excellent deep drawing characteristics and resistance to pitting corrosion when exposed to severe weather and water environments.
The copper tube is a silenced and drawn seamless tube. It has many features such as Light weight, good thermal conductivity, high temperature,etc.. And it's used to make heat transfer equipment (such as condenser, etc.). It is also used in oxygen - making equipment to assemble cryogenic piping. Small diameter copper tubes are usually used to transport pressurized liquids (such as oil pressure systems, etc.) and pressure gauges.
| Standard | ASTM B111, ASME SB111 |
| Material | Copper |
| Outer Diameter(OD) | 2mm-914mm |
| Wall Thickness : | 0.5mm-80mm |
| Length | 1 m - 12 m or as client required |
| Types | Seamless Tube / Light Drawn Tube / Light Annealed Tube / Bright Tube / Annealed Tube, Annealed Tube, Full Annealed Tube, Hard Drawn Tubes |
Equivalent Grades:
| Specification | Designation |
| UNS | C12200 |
| BSI | C106 |
| ISO | Cu-DHP |
| JIS | C1220 |
Chemical Composition:
| Copper | Phosphorus |
| > 99.9% | 0.015 – 0.04% |
Mechanical Properties:
| Density | 8.94 g/cm³ |
| Tensile Strength | 221 ~ 379 MPa (32 ~ 55 ksi) |
| Yield Strength | 69 ~ 345 MPa (10 ~ 50 ksi) |
| Melting Point | 1083 °C (1981 °F) |
Applications:
Plumbing Sanitary Ware Industry
Constructions Industry
Automobiles Industry
Water & Gas Industry
Electrical Engineering Industry
Marine Engineering Industry
Earthing Systems Industry
