Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | F304 |
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply- Wooden Case/Plastic Bag / Plastic Cap |
| Delivery Time: | 5 - 90 Work Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | According To Clients' Request |
| Standard: | ASTM A182, ASME SA182 | Material Grade: | F304 |
|---|---|---|---|
| Size: | 1/2''-48''(DN15-DN1200) | Class: | Class1500/3000/9000 |
| Technics: | Forged | Type: | Elbow,Nipple,Pipe Threaded,Reducer |
| Connection: | Welding,Female,Male | Application: | Construction,gas And Oil Pipes,air,Steam,Petroleum Gas Water |

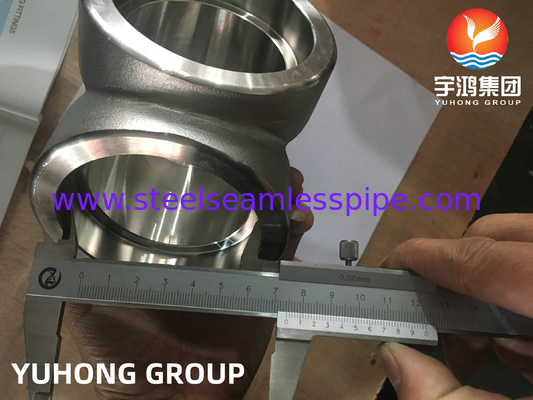

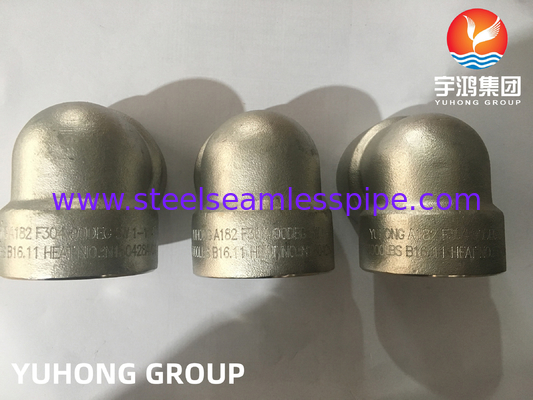

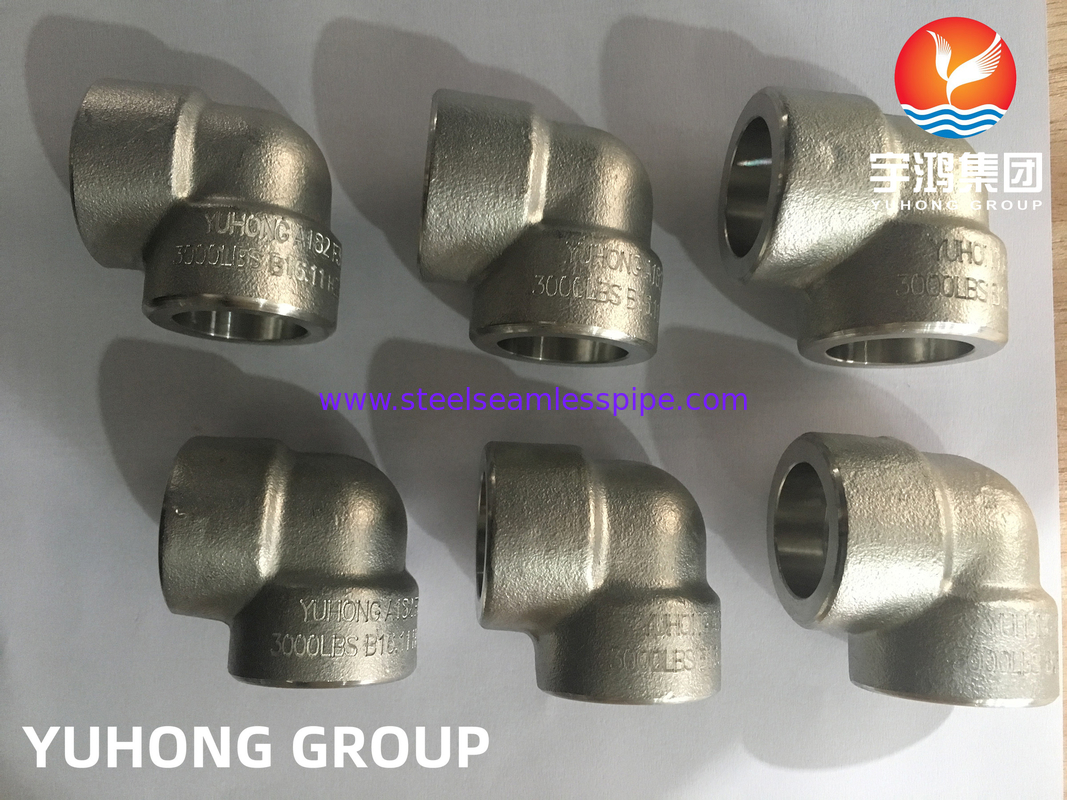

Stainless Steel Fittings, ASTM A182 F304 Socket Weld Forged Elbow ASME B16.11
A182 F304 is a type of stainless steel that is resistant to corrosion and rusting. ASTM A182 F304 Stainless Steel Forged Fittings are widely used to connect two pipes and can be made from a variety of metals, including copper, brass, aluminum, or stainless steel. It is also resistant to heat and has a high level of ductility. F304 Stainless Steel Forged Fitting is one of the most popular industrial products available in the market. SS 304 Forged Fittings and SS 304L Forged Fittings products are ideal for various industrial applications, such as gas pipelines, condensers, and nuclear applications. F304 Stainless Steel Forged Fittings have excellent mechanical properties.
Equivalent Grades:
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 304 | 1.4301 | S30400 | SUS 304 | 304S31 | 08Х18Н10 | Z7CN18‐09 | X5CrNi18-10 |
| Specifications | ASTM A182, ASME SA182 |
| Dimension | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| End | Threaded, Welding, JIC |
| Pressure Rating | Threaded end-2000lb/ 3000lb/ 6000lbs Pipe Fittings Socket-weld end-3000/ 6000/ 9000lbs Pipe Fittings |
| Connection | Welding |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom Pipe Fittings |
| Size Range | ½” NB to 24″ NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) |
| Manufacturing process | Push, Press, Forge, Cast, etc. |
| Types | 90º Elbows, 45º Elbows, Tees, Crosses, Couplings, Reducers, Inserts, Caps, Nipples, and Unions, Forged Pipe Fittings, Socket Weld & Threaded, Equal Tees & Reducing Tees, 90° & 45° Elbows – Female-Female, Male-Female, Male-Male, Union, Nipples, Couplings, Plugs Fittings |

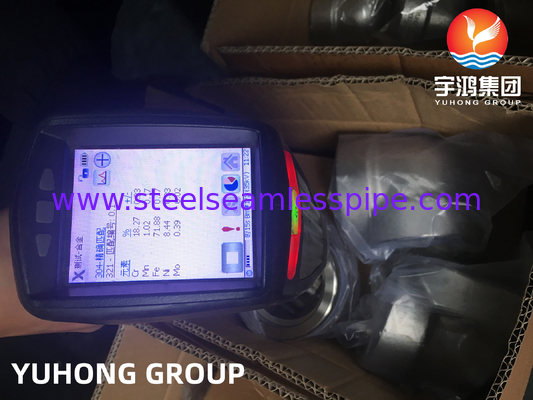

Chemical Composition:
| C | 0.08 max |
| Mn | 2 max |
| Si | 0.75 max |
| P | 0.045 max |
| S | 0.03 max |
| Cr | 18 – 20 |
| Ni | 8 – 11 |
Mechanical Properties:
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Application:
Plumbing
Petroleum Industry
Chemical Industries
Oil & Gas Industry
Fabrication Industry
Power Plants
Modern Architecture
Food Processing Industries
Fertilizers Industries
