Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | F304, F304L |
| Minimum Order Quantity: | 500KGS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | According to Client Requirements/Wooden Case/Woven Bag/Pallet |
| Delivery Time: | Depends on quantity |
| Payment Terms: | T/T, L/C at sight |
| Supply Ability: | According to Client's Requirements |
| Standard: | ASTM A182 / ASME SA182 | Material: | F304, F304L |
|---|---|---|---|
| Product Name: | Stainless Steel Pipe Fittings | Technics: | Forged,Butt Weld,Welding |
| Size: | Customized Size,1/2''-48''(DN15-DN1200) | Packing: | Plywood Case Or Pallet |

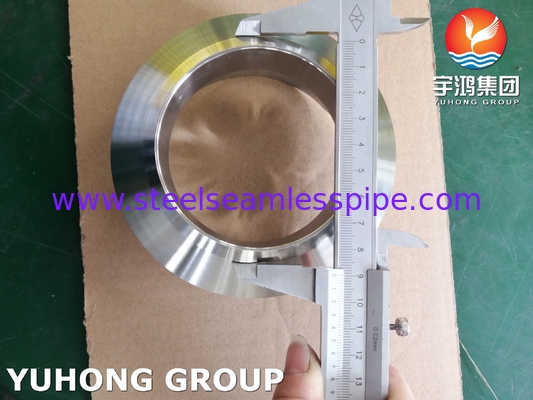

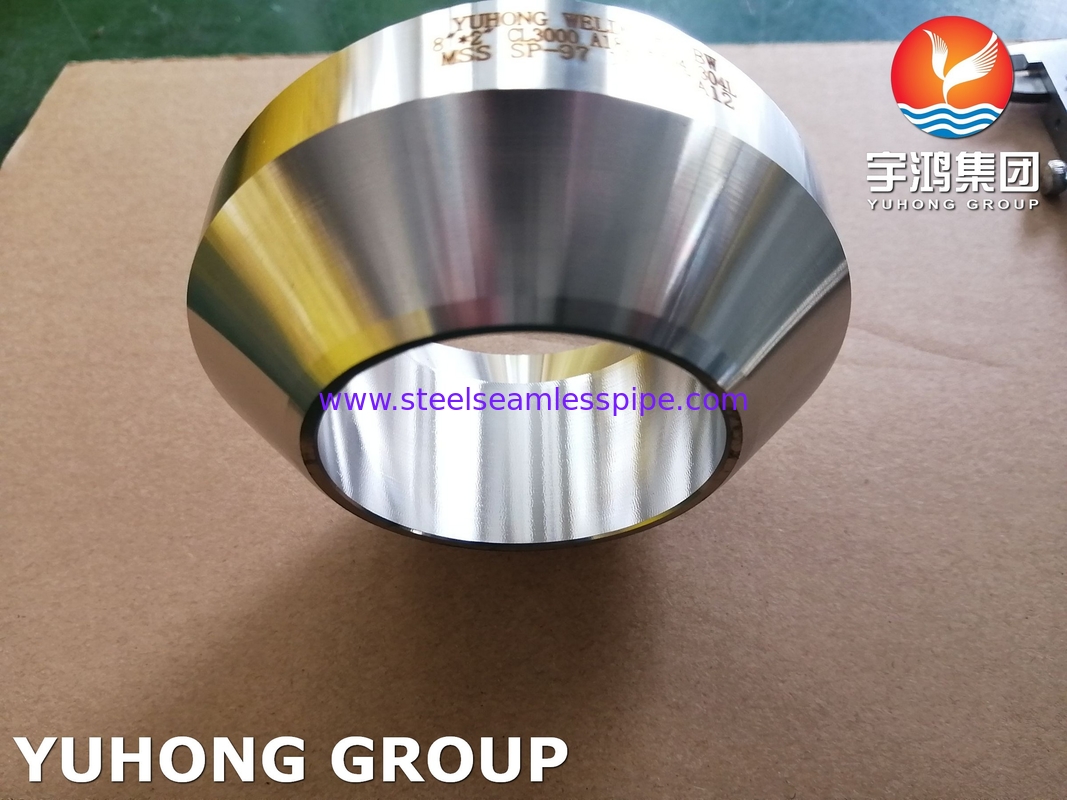

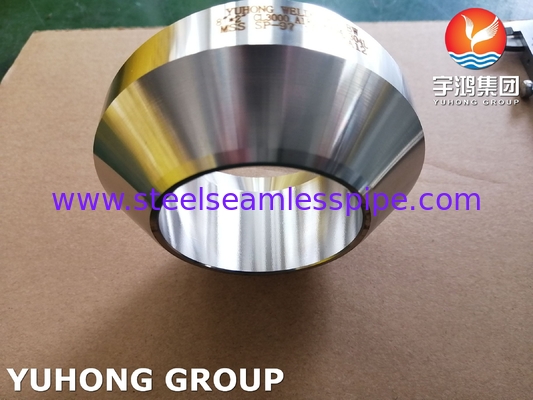

ASTM A182 F304 F304L MSS SP-97 Stainless Steel Weldolet valve Instruments Pipeline

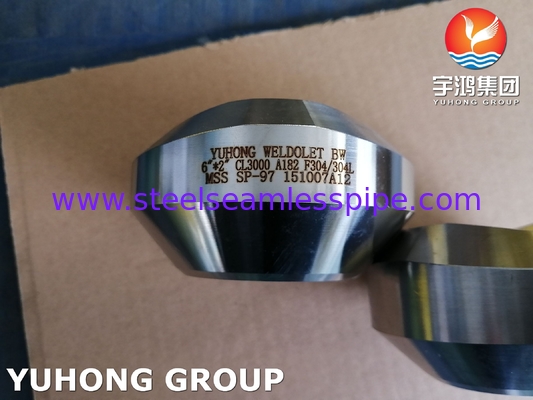

What is Weldolet?

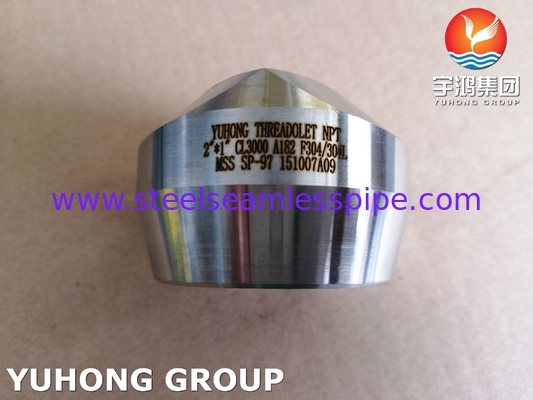

Weldolet is also called branch pipe seat, saddle seat, saddle type pipe joint. Mainly used for branch connection reinforcement type pipe fittings, instead of using reducer tee, reinforcement plate, reinforced pipe section and other branch connection type, with safe and reliable, reduce the cost, simple construction, improve the media flow channel, series standardization, design and selection of convenient and other outstanding advantages, especially in high pressure, high temperature, large diameter, thick wall pipeline is increasingly used, replacing the traditional branch connection method. The body of the branch pipe table is made of high-quality forgings, and the materials used are the same as those of the pipe, such as carbon steel, alloy steel and stainless steel. The branch pipe seat and the main pipe are welded, and the branch pipe or other pipes (such as short pipes, silk plug, etc.), instruments, valves are connected with butt welding connection, socket welding connection, threaded connection three types. The common manufacturing execution standards of branch pipe table are MSS SP-97, GB/T19326 and other standards.
Characteristics:
Safety and reliability
cost reduction
simple construction
improved media flow path
series standardization
easy design selection
Chemical Composition:
Grade | C ≤ | Si ≤ | Mn ≤ | P ≤ | S ≤ | Ni ≤ | Cr ≤ |
201 | 0.12 | 0.75 | 7.00 | 0.045 | 0.045 | 1.00-1.28 | 13.70-15.70 |
202 | 0.15 | 1.00 | 2.25 | 0.045 | 0.045 | 4.07-4.17 | 14.00-16.00 |
304 | 0.08 | 0.75 | 2.00 | 0.045 | 0.03 | 8.00-11.00 | 18.00-20.00 |
304L | 0.035 | 0.75 | 2.00 | 0.045 | 0.03 | 8.00-13.00 | 18.00-20.00 |
Mechanical Properties:
| Tensile Strength(Mpa) | Yield Strength(Mpa) | Elongation(%) |
| 515 | 205 | 40 |
Applications:
Power Plant
Fertilizers Equipment
Shipbuilding Equipment
Oil and Gas Pipeline
Water Supply Systems
valve
Instruments
Food Processing Industry
Chemical&Petrochemical Industry
