Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASME SA249 / ASTM A249 |
| Minimum Order Quantity: | 20 PC |
|---|---|
| Price: | 1-150000 USD |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle With Plastic Cap |
| Delivery Time: | 5-65 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1500tons/month |
| Materialrd: | Stainless Steel | Product: | Welded Tube |
|---|---|---|---|
| Standard: | ASME SA249 / ASTM A249 | Grade: | TP316L |
| Application: | For Boiler, Heat Exchanger, SuperHeater | Length: | Or As Required |
| Certificate: | ISO9001-2008, API 5L, API 5CT, Etc. | Packing Details: | Ply-wooden Case /Iron Case/ Bundle With Plastic Cap |

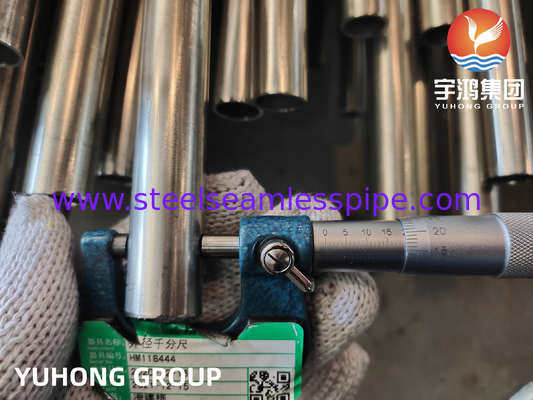

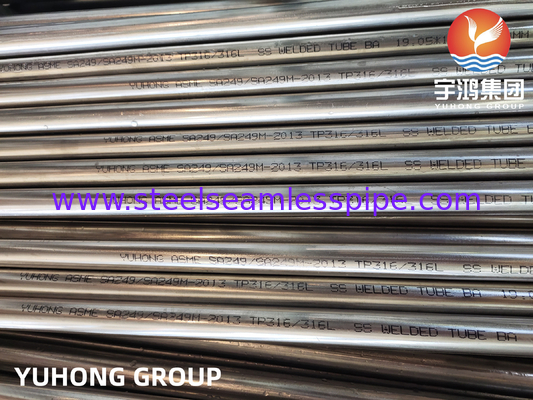

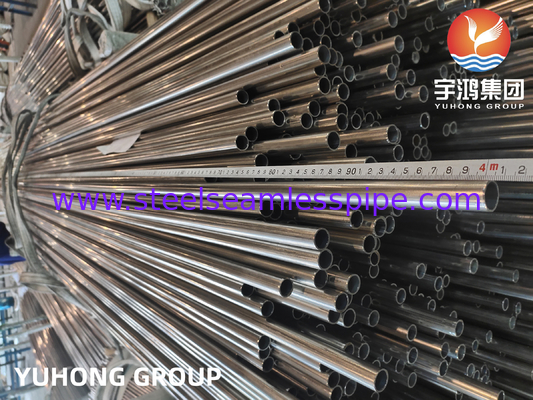

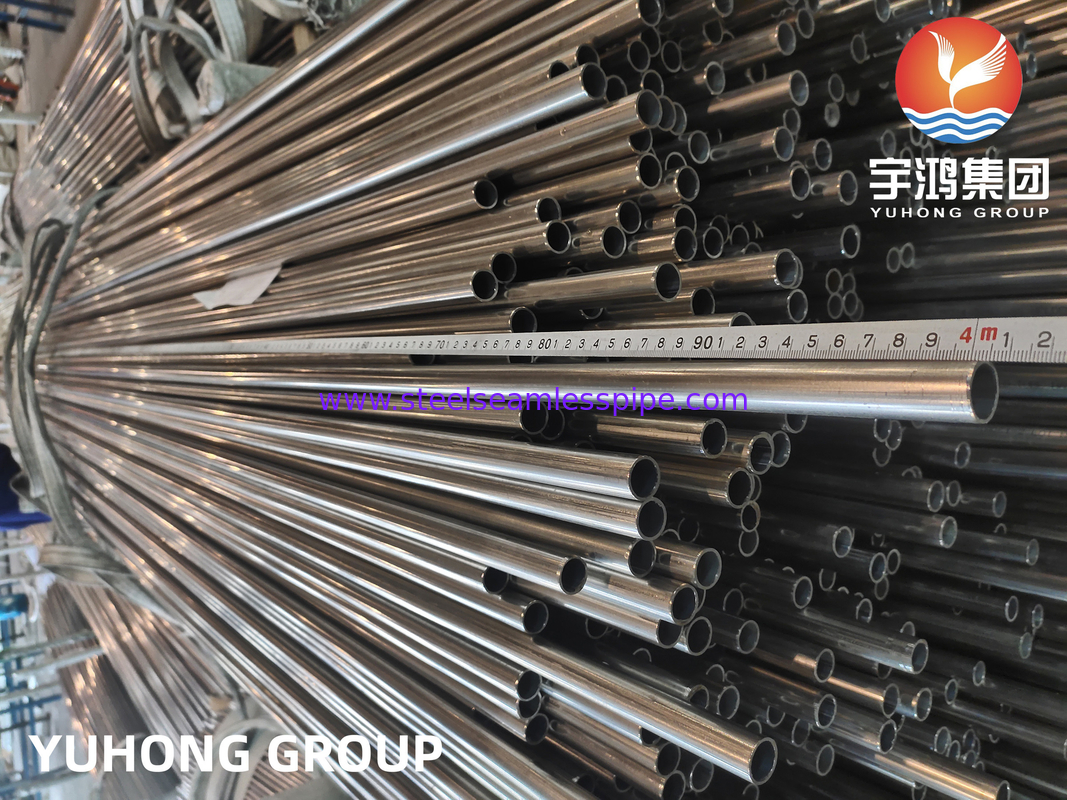

ASTM A249 TP316L Welded Tubes For Heat Exchanger
YUHONG Group offers ASME SA249 / ASTM A249 TP316L welded stainless steel tubes and we sell these tubes in more than 70 countries up to now. This specification covers nominal-wall-thickness welded tubes and heavily cold worked welded tubes made from the austenitic steels, with various grades intended for such use as boiler, superheater, heat exchanger, or condenser tubes.
The carbon content of TP316L stainless steel pipe is 0.03, which can be used for applications that cannot be annealed after welding and require corrosion resistance. TP316 stainless steel pipe also has good resistance to chloride corrosion, so it is usually used in marine environments. The corrosion resistance of TP316 stainless steel pipe is better than that of 304 stainless steel, and it has good corrosion resistance in the production process of pulp and paper.
Specifications of TP316L
| Standard |
ASME SA249 / ASTM A249 |
| Name of Material | Stainless Steel Tubes----Welded |
| Keywordas | Austentic stainless steel; welded steel tube;boiler / condenser / heat exchanger tube;high temperature applications; etc. |
| Size and Thickness | Usually furnished to this specification are 1 ⁄ 8 in. [3.2 mm] in inside diameter to 12 in. [304.8 mm] in outside diameter and 0.015 to 0.320 in. [0.4 to 8.1 mm], inclusive, in wall thickness. |
| Condition | Annealed |
| Quantity | Feet,metres,or number of lengths |
| Length | Specific or random |
Test Required
Chemical Analysis/ Mechanical Properties/ Hardness Test/ Flattening Test/ Tension Test/ FlaringTest

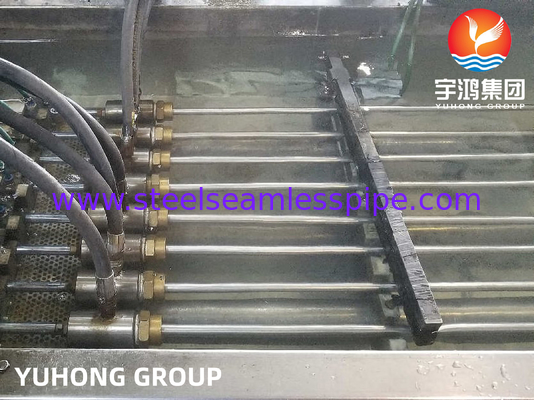

Reverse-Bend Test/ Intergranular Corrosion Test/ Hydrostatic or Nondestructive Electric Test/ Grain Size
Chemical Composition % TP316L
| C | Mn | P | S | Si | Cr | Ni | Mo |
| 0.03max | 2.00max | 0.045max | 0.03max | 1.00max | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
Tensile And Hardness Requirements
| Grade | Yield Strength (Mpa) | Tensile Strength (Mpa) | Elongation (%) | Rockwell Hardness |
| TP316L | 170 | 485 | 35 min | B90max |
Applications Industries
Food Processing
Pulp and Paper Industry
Condensers & Boiler & Heat Exchangers
Sea Water Equipment
Oil Waste Gas Combustion Pipeline
Engine Exhaust Pipe
Petrochemicals- Oil Refining Chemical,etc.
Energy Field- Nuclear Power Generation,Tidal Power Generation,etc
Environmental Protection Field- Gas Processing,Waste Water Treatment,etc.
