Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM A182 F304 Socket Weld Flange |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | Ply-wooden Case / pallet |
| Delivery Time: | 7 DAYS |
| Payment Terms: | L/C,T/T |
| Product Name: | Stainless Steel Flange | Dimensions: | ANSI Flange, ASME Flange, BS Flange, DIN Flanges, EN Flange |
|---|---|---|---|
| Standard: | ASTM A182 / ASME SA182 | Material: | F304, F304L , F316L , F321, F321H, F347H , F317L, F310S, F310H |
| Type: | Slip-on, Blind, Lap Joint, Socket Weld, Thread Flanges | Surfacing: | FF,RF,M,F,T,G,RJ,MF,TG |
| Connection: | Flanged | Class: | 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc. |
| Packaging: | Plywood Case /Iron Case Packing | ||
| High Light: | Stainless Steel Socket Weld Flanges,ANSI B16.5 SWRF Flange,Stainless Steel SWRF Flange |
||

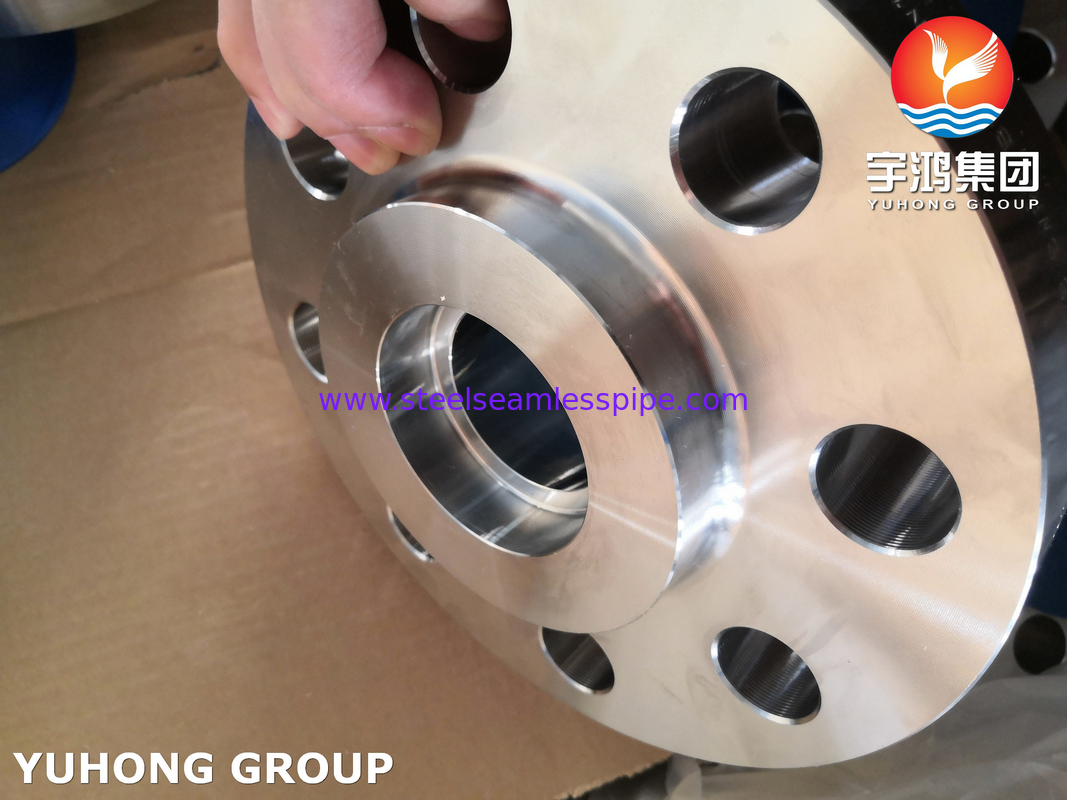

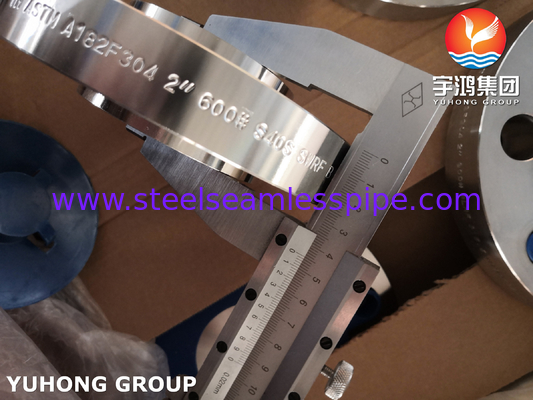

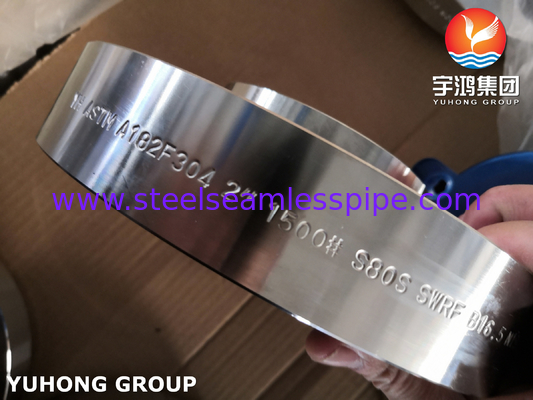

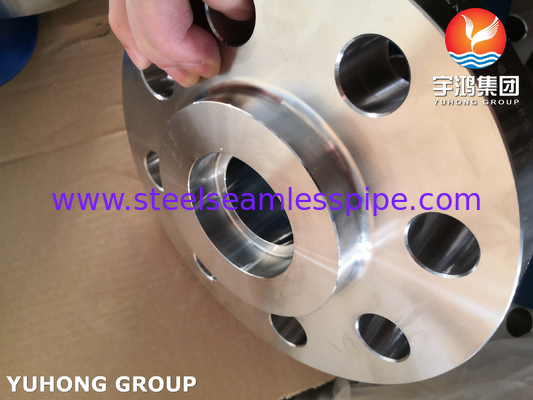

ANSI B16.5 SWRF Flange, ASTM A182 F304 Stainless Steel Socket Weld Flanges
A182 F304 SW flange is a type of flange made from A182 F304 stainless steel material. SW stands for Socket Weld, which means that this type of flange has a socket that is welded onto a pipe, creating a smooth bore surface. This flange is commonly used in high-pressure applications where welding is preferred over threading. It is also known for its corrosion resistance and durability.
Equivalent Grades
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
SS 304 | 1.4301 | S30400 | SUS 304 | 304S31 | 08Х18Н10 | Z7CN18‐09 | X5CrNi18-10 |
| Chemical Composition and Mechanical Property for 304/304L | |||||||||||
| Steel Grade | Chemical Composition | Mechanical Performance | |||||||||
| C(Max) | Si(Max) | Mn(Max) | P(Max) | S(Max) | Ni | Cr | N | Mo | Tensile Strength (Min) | Yield Strength (Min) | |
| Mpa | Mpa | ||||||||||
| 304 | 0.08 | 0.75 | 2.00 | 0.045 | 0.03 | 8.0–10.5 | 18.0–20.0 | 0.1 | / | 515 | 205 |
| 304L | 0.03 | 0.75 | 2.00 | 0.045 | 0.03 | 8.0–12.0 | 18.0–20.0 | 0.1 | / | 485 | 170 |
Material & Grades of Socket weld Flanges (SWRF) :
Stainless Steel Socket weld Flanges :
ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H, 904L
Duplex & Super Duplex Steel Socket weld Flanges :
ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61
Carbon Steel Socket weld Flanges :
ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F706
Low Temperature Carbon Steel Socket weld Flanges : ASTM A350, LF2, LF3
Alloy Steel Socket weld Flanges :
ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91
Copper Alloy Steel Socket weld Flanges : ASTM SB 61 , SB62 , SB151 , SB152 UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200
Nickel Alloy Socket weld Flanges :
ASTM SB564, SB160, SB472, SB162 Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020)
| Other Types | |
| ASTM A182 SS304 Slip-On Flanges | ASTM A182 SS304 Threaded Flanges |
| ASTM A182 SS304 Weld Neck Flanges | ASTM A182 SS304 Socket Weld Flanges |
| ASTM A182 SS304 Blind Flanges | ASTM A182 SS304 Reducing Flanges |
| ASTM A182 SS304 Lap Joint Flanges | ASTM A182 SS304 Plate Flanges |
| ASTM A182 SS304 Orifice Flanges | ASTM A182 SS304 Forged Flanges |
| ASTM A182 SS304 Ring Type Joint Flanges | ASTM A182 SS304 Square Flanges |
| ASTM Standard SS Flange | ANSI B16.5, ANSI B16.47 Series A or MSS SP-44, ANSI B16.47 series B or API-605 , ANSI B16.48, ANSI B16.36 |
| DIN Standard SS Flange | DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638, DIN 2673 |
| JIS SS Flange | JIS B2220 5K / JIS B2220 10K / JIS B2220 16K / JIS B2220 20K SS 316L Flange |
| EN SS Flange | EN 1092-1 |
| BS 4504 SS Flange | BS4504 PN 6/PN 10/PN 16/PN 25/PN 40/PN 64/PN 100/PN 160/PN 250 Stainless |
| BS SS Flange | BS Table D Flange, BS Table E Flange, BS Table F Flange, BS Table H Flange |
| Size | 1/8" NB to 48"NB |
| Type | Slip-on, blind, lap joint, socket weld, thread flanges |
| Surfacing | FF,RF,M,F,T,G,RJ,MF,TG |
Applications of pipe flanges
Pipe flanges are widely used in pipe fittings of various industrial, commercial and residential applications. Pipe flanges can be customized to suit your application with various machining details. These pipe flanges have been used extensively in:
UHV applications
A. Hydraulic control systems for turbine generators
B. High pressure ground support missile systems
C. Nuclear and conventional power plant applications etc.
