Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | F316L |
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case / Pallet |
| Delivery Time: | 5 - 90 Work Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | According to Client's Requirements |
| Standard: | ASTM A182, ASME SA182 | Material Grade: | F316L, UNS S31603 |
|---|---|---|---|
| Forming Type: | Elbow,Nipple,Reducer,Eelbow,Tee,Coupling,Etc. | Technics: | Forged |
| Size: | 1/2''-48''(DN15-DN1200) | Class: | 1500LBS, 3000LBS, 6000LBS |
| Type: | Seamless, Welded | Application: | Construction,gas And Oil Pipes,air,Steam,Petroleum Gas Water |

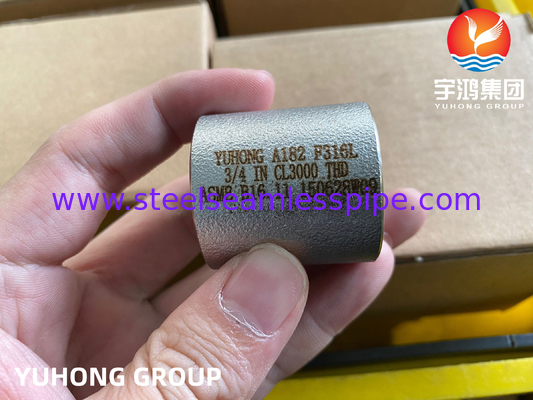

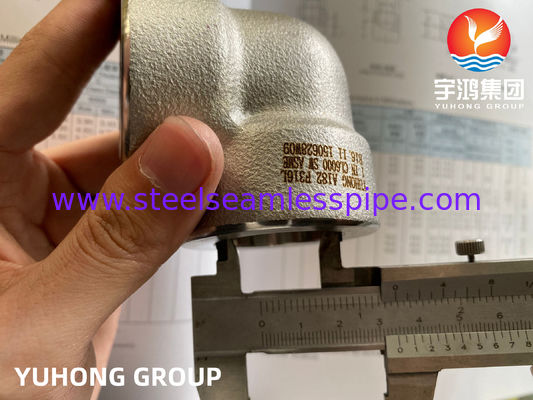

Forged Fittings ASTM A182 F316L Stainless Steel Threaded Elbows, Couplings, ASME B16.11
ASTM A182 F316L, UNS S31603 Forged Socket Weld Fitting is the low carbon version of 316 and is immune from sensitisation. It is widely used in heavy gauge welded components (over about 6mm). ASTM A182 F316L Stainless Steel Pipe Fittings contain some effective features. They contain the most effective features are high oxidation resistant and excellent pitting resistance. They’re much better corrosion resistance as compared to 304 type stainless steel. And they have strong resistance to the most chemical feature.
Specifications:
| Specification | ASTM A182, ASME SA182 |
| Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/4" to 48" |
| Type | Socketweld Fittings, Threaded / Screwed Fittings |
| Rating Pressure | 2000LBS, 3000LBS, 6000LBS, 9000LBS |
Equivalent Grades:
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
Chemical Composition:
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| F316L | 0.035 max | 2 max | 1 max | 0.045 max | 0.03 max | 16 - 18 | 2 - 3 | 10 - 14 | 68.89 min |
Mechanical Properties:
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Applications:
Plumbing
Construction
Petroleum Industry
Fabrication Industry
Fabrication Industry
Power Plants
Oil & Gas Industry
