Yuhong Holding Group Co.,LTD
Place of Origin: | China |
Brand Name: | YUHONG |
Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
Model Number: | ASTM A790 UNS S32750 |
Minimum Order Quantity: | 1000KGS |
---|---|
Price: | Negotiable |
Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap/Woven Case |
Delivery Time: | Depends on quantity |
Payment Terms: | T/T,L/C |
Supply Ability: | 1000 tons per month |
Specification: | ASTM A790, ASME SA790, EN10216-5 , GOST9941-91, JIS 3459, DIN17458 | Grade: | S32750 |
---|---|---|---|
Type: | Seamless | Surface: | Pickled And Annealed, Polished, Bright Annealed |
Non Destructive Test: | Eddy Current Test -ASTM E426, Hystostatic Test-ASTM A999, Ultrsonic Test -ASTM E213 | Size Standard: | ASTM B16.10 & B16.19 & Customized |

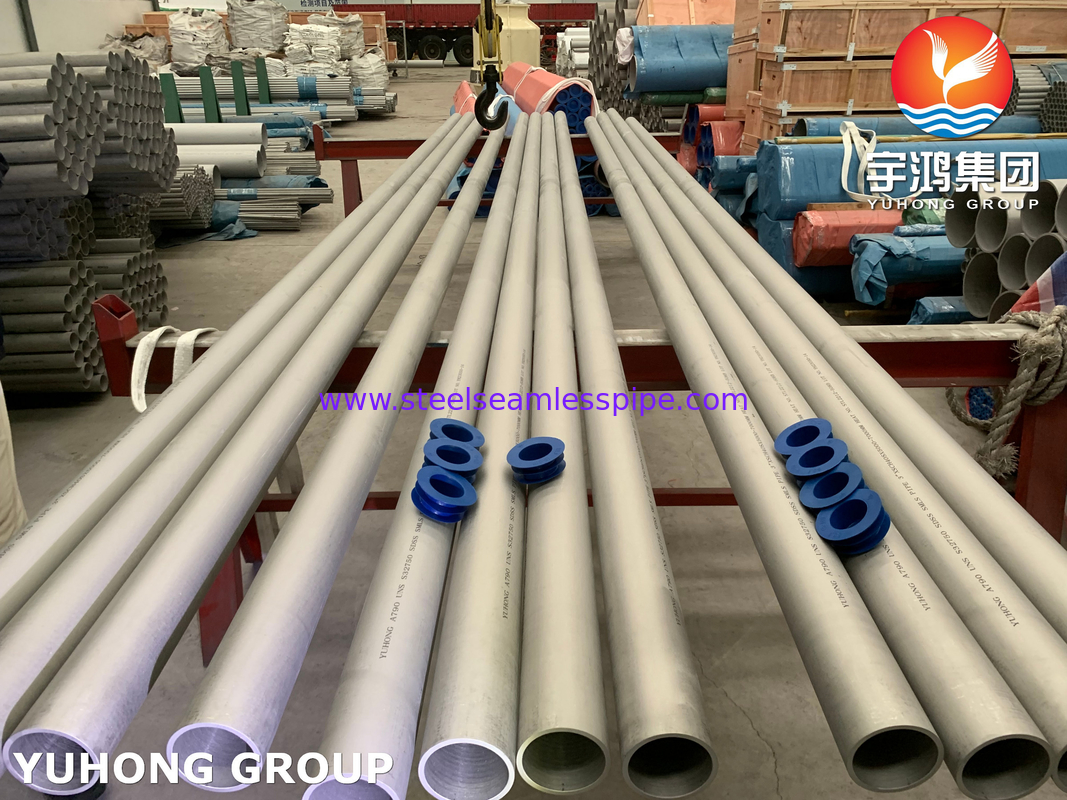

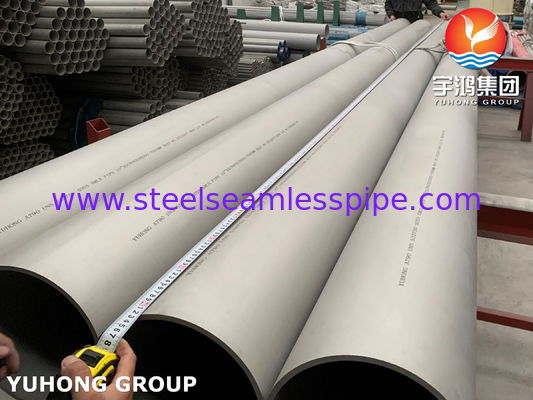

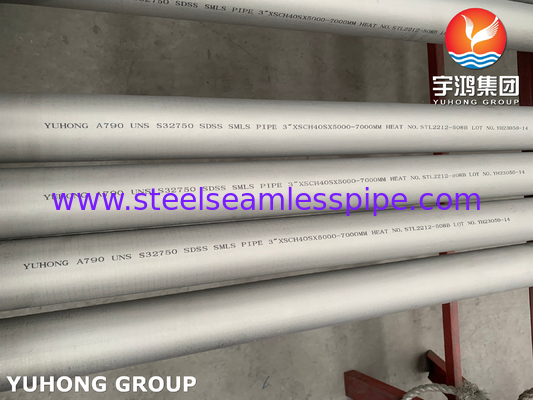

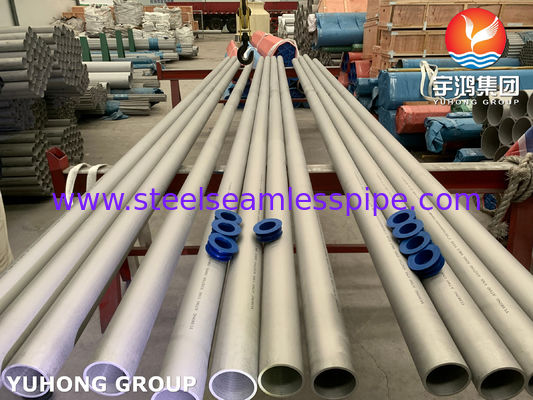

Super Duplex Steel Seamless Pipe ASTM A790 UNS S32750 Acid Resistant
ASTM A790 S32750 Seamless Pipe is a super duplex stainless steel designed for applications which demand exceptional strength and corrosion resistance. Alloy 2507 has 25% chromium, 4% molybdenum, and 7% nickel.
(UNS S32750) Duplex stainless steel has strong strength and corrosion resistance, and is mainly used in chemical processing, petrochemical and subsea equipment. It has strong resistance to chloride corrosion, high thermal conductivity and low thermal expansion coefficient. Higher chromium, molybdenum and nitrogen content make it has a high ability to resist pitting corrosion, crevice corrosion and general corrosion.
Its impact strength is also very high. 2507 alloy is not suitable for use in a temperature environment higher than 570 ° C. Its toughness will decrease if it is in such an environment for a long time.
Chemical Composition of S32750
Element | Content (%) |
---|---|
Chromium, Cr | 24 – 26 |
Nickel, Ni | 6 – 8 |
Molybdenum, Mo | 3 – 5 |
Manganese, Mn | 1.20 max |
Silicon, Si | 0.80 max |
Copper, Cu | 0.50 max |
Nitrogen, N | 0.24 – 0.32 |
Phosphorous, P | 0.035 max |
Carbon, C | 0.030 max |
Sulfur, S | 0.020 max |
Iron, Fe | Balance |

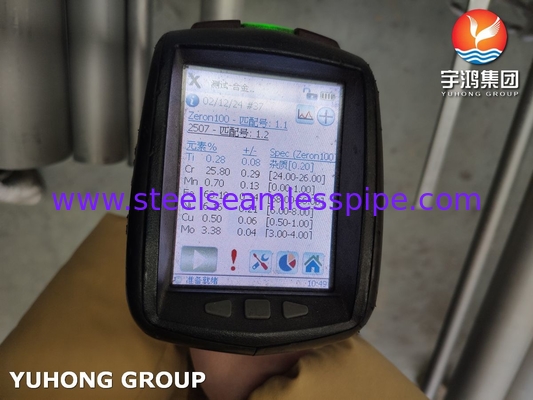

PMI:
Workmanship, Finish, and Appearance
The finished pipes shall be reasonably straight and shall have a workmanlike finish. Imperfections may be removed by grinding, provided the wall thicknesses are not decreased to less than that permitted, in the Permissible Variations in Wall Thickness Section of Specification A999/
A999M.
Ordering Information
Orders for material under this specification should include the following, as required, to describe the desired material adequately:
1 Quantity (feet, [metres], or number of lengths),
2 Name of material (ferritic/austenitic steel pipe),
3 Process (seamless or welded),
4 Grade (see Table 1),
5 Size (NPS designator or outside diameter and schedule number of average wall thickness),
6 Length (specific or random)
Duplex S32750 Pipe Weight Chart
NPS | Outside diameter | Wall thickness (WT) | weights | weight | |||
Inch | MM | Inch | MM | Schedule | kg / M | Lb /feer | |
1/2 | 0.840 | 21 | 0.109 | 2.769 | 40 STD | 1.268 | 0.851 |
1 1/4 | 1.660 | 42 | 0.140 | 3.556 | 40 STD | 3.385 | 2.273 |
0.147 | 3.734 | 80 STD | 1.621 | 1.088 | |||
0.154 | 3.912 | 80 STD | 2.195 | 1.474 | |||
1 | 1.315 | 33 | 0.133 | 3.378 | 40 STD | 2.501 | 1.679 |
3/4 | 1.050 | 27 | 0.113 | 2.870 | 40 STD | 1.684 | 1.131 |
0.179 | 4.547 | 80 STD | 3.325 | 2.172 | |||
0.191 | 4.851 | 80 STD | 4.464 | 2.997 | |||
1 1/2 | 1.900 | 48 | 0.145 | 3.683 | 40 STD | 4.048 | 2.718 |
0.200 | 5.080 | 80 STD | 5.409 | 3.361 | |||
2 | 2.375 | 60 | 0.154 | 3.912 | 40 STD | 5.441 | 3.653 |
0.218 | 5.537 | 80 STD | 7.480 | 5.022 | |||
2 1/2 | 2.875 | 73 | 0.203 | 5.516 | 40 STD | 8.629 | 5.793 |
0.276 | 7.010 | 80 STD | 11.411 | 7.661 | |||
3 | 3.500 | 89 | 0.216 | 5.486 | 40 STD | 11.284 | 7.576 |
4 | 4.500 | 114 | 0.237 | 6.020 | 16.073 | 10.790 | |
0.337 | 8.560 | 22.318 | 14.983 | ||||
6 | 6.625 | 168 | 0.188 | 4.775 | 19.252 | 12.924 | |
0.203 | 5.516 | 20.739 | 13.923 | ||||
0.219 | 5.563 | 22.318 | 14.983 | ||||
0.250 | 6.350 | 25.354 | 17.021 | ||||
0.300 | 7.620 | 80 STD | 15.272 | 10.253 | |||
0.280 | 7.112 | 40 STD | 58.263 | 18.974 | |||
0.312 | 7.925 | 31.334 | 21.036 | ||||
0.375 | 9.525 | 37.285 | 25.031 | ||||
0.432 | 10.973 | 80 XHY | 42.561 | 28.573 | |||
0.500 | 12.700 | 48.719 | 32.708 | ||||
8 | 8.625 | 219 | 0.188 | 4.775 | 25.233 | 16.940 | |
0.219 | 5.563 | 29.286 | 19.661 | ||||
0.250 | 6.350 | 20 | 33.308 | 22.361 | |||
0.277 | 7.036 | 30 | 36.786 | 24.696 | |||
0.322 | 8.179 | 40 | 42.352 | 28.554 | |||
0.375 | 9.525 | 49.216 | 33.041 | ||||
0.406 | 10.312 | 60 | 53.085 | 35.638 | |||
0.203 | 5.156 | 27.198 | 18.259 | ||||
0.500 | 12.700 | 80 XHY | 64.627 | 43.388 | |||
10 | 10.750 | 273 | 0.188 | 4.775 | 31.588 | 21.207 | |
0.219 | 5.563 | 36.689 | 24.631 | ||||
0.250 | 6.350 | 20 | 41.759 | 28.035 | |||
0.307 | 7.798 | 30 | 51.002 | 34.240 | |||
0.344 | 8.738 | 56.946 | 38.231 | ||||
0.365 | 9.271 | 40 STD | 63.301 | 40.483 | |||
0.438 | 11.125 | 71.852 | 48.238 | ||||
0.500 | 12.700 | 60 XHY | 81.530 | 54.735 | |||
0.594 | 15.088 | 80 | 95.969 | 64.429 | |||
12 | 12.750 | 324 | 0.188 | 4.775 | 37.570 | 25.222 | |
0.219 | 5.563 | 43.657 | 29.309 | ||||
0.250 | 6.350 | 49.713 | 33.375 | ||||
0.281 | 7.137 | 55.739 | 37.420 | ||||
0.312 | 7.925 | 61.735 | 41.445 | ||||
0.375 | 9.525 | 73.824 | 49.562 | ||||
0.406 | 10.312 | 79.727 | 53.525 | ||||
0.500 | 12.700 | 97.438 | 65.415 | ||||
0.562 | 14.275 | 108.966 | 73.154 | ||||
14 | 14.000 | 356 | 0.188 | 4.775 | 41.308 | 27.732 | |
0.219 | 5.563 | 48.012 | 32.233 | ||||
0.250 | 6.350 | 20 | 54.685 | 36.713 | |||
0.281 | 7.137 | 61.327 | 41.172 | ||||
0.312 | 7.925 | 67.939 | 45.611 | ||||
0.375 | 9.525 | STD | 81.281 | 54.568 | |||
0.438 | 11.125 | 40 | 94.498 | 63.441 | |||
0.500 | 12.700 | XHY | 107.381 | 72.090 | |||
0.625 | 15.875 | 132.983 | 89.278 | ||||
16” | 16.000 | 406 | 0.188 | 4.775 | 47.290 | 21.748 | |
0.219 | 5.563 | 54.980 | 36.910 | ||||
0.250 | 6.350 | 10 | 62.639 | 42.053 | |||
0.281 | 7.137 | 70.268 | 47.174 | ||||
0.312 | 7.925 | 20 | 77.866 | 52.275 | |||
0.344 | 8.738 | 85.677 | 57.519 | ||||
0.375 | 9.525 | 30 STD | 93.213 | 62.578 | |||
0.438 | 11.125 | 108.433 | 72.797 | ||||
0.500 | 12.700 | 40 XHY | 123.289 | 82.770 | |||
18 | 18.000 | 457 | 0.219 | 5.563 | 61.948 | 41.588 | |
0.250 | 6.350 | 70.593 | 47.393 | ||||
0.281 | 7.137 | 79.208 | 53.176 | ||||
0.312 | 7.925 | 20 | 87.792 | 58.939 | |||
0.375 | 9.525 | STD | 105.144 | 70.588 | |||
0.438 | 11.125 | 30 | 122.369 | 82.152 | |||
0.500 | 12.700 | XHY | 139.198 | 93.450 | |||
0.562 | 14.275 | 40 | 155.904 | 104.666 | |||
0.625 | 15.875 | 172.754 | 115.978 | ||||
20 | 20.000 | 508 | 0.250 | 6.350 | 78.547 | 52.733 | |
0.282 | 7.163 | 88.458 | 59.386 | ||||
0.312 | 7.925 | 97.719 | 65.604 | ||||
0.375 | 9.525 | 20 STD | 117.075 | 78.598 | |||
0.438 | 11.125 | 136.305 | 91.508 | ||||
0.500 | 12.700 | 30 XHY | 155.106 | 104.130 | |||
0.594 | 15.088 | 40 | 183.378 | 123.110 | |||
0.625 | 15.875 | 192.640 | 129.328 | ||||
0.688 | 17.475 | 211.368 | 141.901 | ||||
24 | 24.000 | 610 | 0.250 | 6.350 | 94.456 | 63.413 | |
0.281 | 7.137 | 106.029 | 71.183 | ||||
0.312 | 7.925 | 117.573 | 18.932 | ||||
0.375 | 9.525 | 20 STD | 140.938 | 64.618 | |||
0.438 | 11.125 | 164.176 | 110.219 | ||||
0.500 | 12.700 | XHY | 186.923 | 125.490 | |||
0.625 | 15.875 | 232.410 | 156.028 | ||||
0.688 | 17.475 | 40 | 255.148 | 171.293 | |||
0.750 | 19.050 | 277.401 | 186.233 | ||||
30 | 30.000 | 762 | 0.250 | 6.350 | 118.318 | 79.433 | |
0.281 | 7.137 | 132.851 | 89.189 | ||||
0.312 | 7.925 | 10 | 147.353 | 98.925 | |||
0.375 | 9.525 | STD | 176.731 | 118.648 | |||
0.438 | 11.125 | 205.983 | 138.286 | ||||
0.500 | 12.700 | 20 XHY | 234.647 | 157.530 | |||
0.625 | 15.875 | 30 | 292.066 | 196.078 | |||
0.688 | 17.475 | 320.817 | 215.380 | ||||
0.750 | 19.050 | 348.988 | 234.293 | ||||
36 | 36.000 | 914 | 0.250 | 6.350 | 142.180 | 95.453 | |
0.281 | 7.137 | 159.672 | 107.196 | ||||
0.312 | 7.925 | 10 | 177.133 | 118.918 | |||
0.375 | 9.525 | STD | 215.525 | 142.678 | |||
0.438 | 11.125 | 247.790 | 166.353 | ||||
0.500 | 12.700 | 20 XHY | 282.372 | 198.570 | |||
0.625 | 15.875 | 351.723 | 236.128 | ||||
0.688 | 17.475 | 386.487 | 259.467 | ||||
0.750 | 19.050 | 420.576 | 282.353 | ||||
42 | 42.000 | 1067 | 0.312 | 7.925 | 206.914 | 138.911 | |
0.375 | 9.525 | STD | 248.319 | 166.708 | |||
0.500 | 12.700 | XHY | 33.097 | 221.610 | |||
0.750 | 19.050 | 492.163 | 330.413 | ||||
48 | 48.000 | 1219 | 0.375 | 9.525 | STD | 284.112 | 190.738 |
0.438 | 11.125 | 331.404 | 222.487 | ||||
0.500 | 12.700 | XHY | 377.822 | 253.650 | |||
0.750 | 19.050 | 563.750 | 378.473 | ||||
0.875 | 22.225 | 655.969 | 440.383 |
Super Duplex 2507 Pipe Equivalent Material
Alloy | UNS Designation | Werkstoff NR. | Specifications | AFNOR | Grade | DIN | EN | SS |
---|---|---|---|---|---|---|---|---|
2507 | S32750 | 1.4410 | A/SA789,A/SA790 | Z3 CN 25.06 Az | F53 | X 2 Cr Ni MoN 25.7.4 | 1.4410 | 2328 |
Duplex Stainless Steel Features
Duplex stainless steels have Austenitic and Ferritic stainless steel microstructure, and possess properties in two groups stainless steel, however, there are different.
Versus Austenitic
Versus Ferritic
APPLICATIONS:
