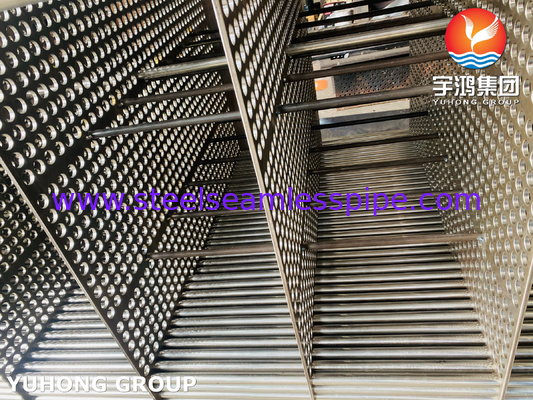

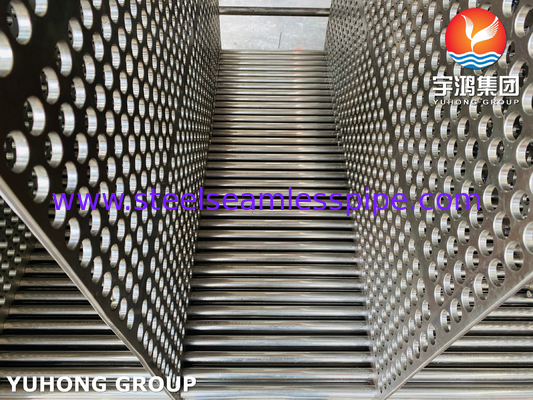

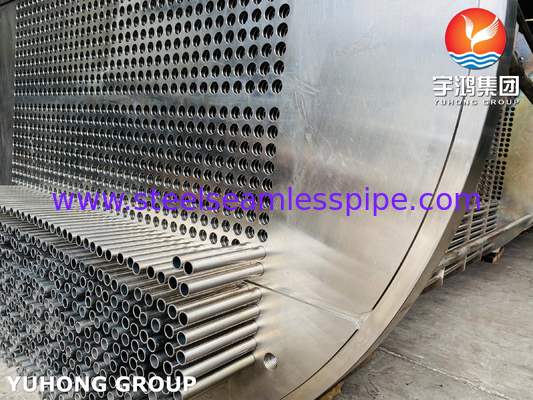

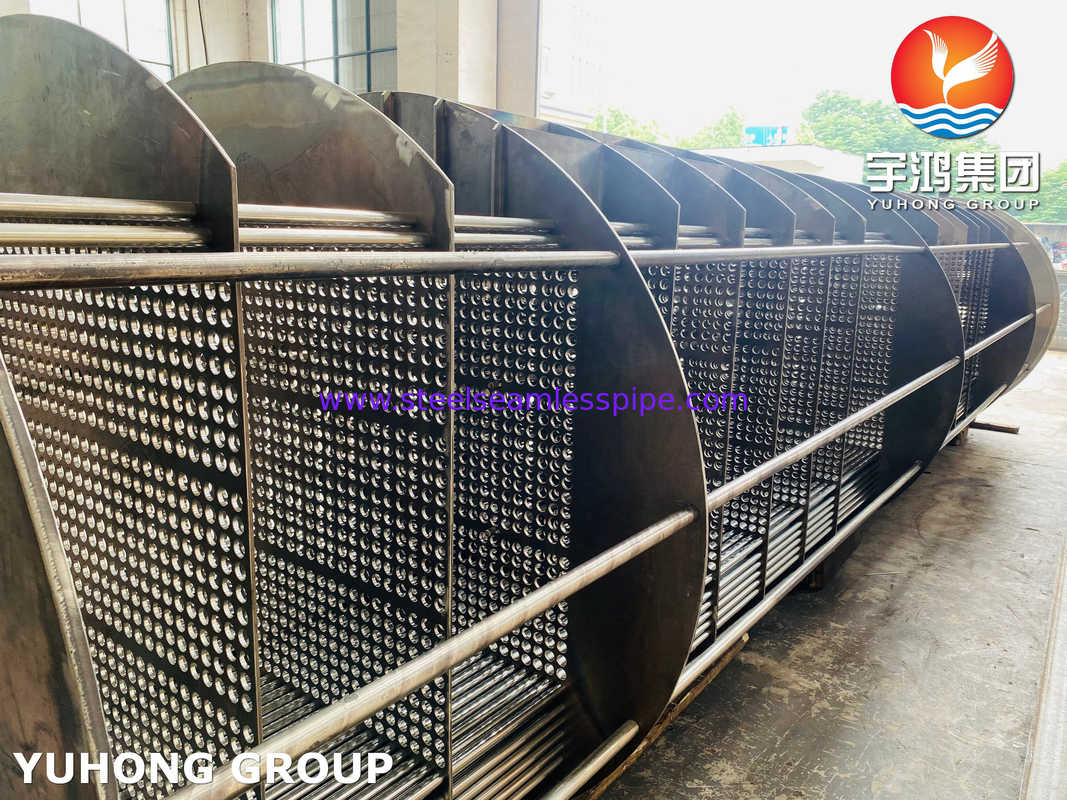

ASTM A182 316L SS Forged Tubesheet For Oil and Gas Industries
Description
ASTM A182 F316L is a forging material specification for F316L grade stainless steel and is used for manufacturing bare forgings or forged and machined products for applications involving high temperature service.
The ASTM A182 316L tube sheet is a vital component utilized in the construction of heat exchangers, which play a crucial role in various industries such as petrochemical, chemical, and power generation. Crafted from the highest quality stainless steel alloy, Grade 316L, this tube sheet offers exceptional resistance to corrosion, making it ideal for applications where contact with aggressive fluids or environments is expected.
The ASTM A182 standard ensures that the 316L tube sheet meets stringent requirements for chemical composition, mechanical properties, and dimensional accuracy. With its precise specifications and strict adherence to industry standards, this tube sheet guarantees optimal compatibility with other heat exchanger components, ensuring seamless integration and efficient operation.
The 316L tube sheet is designed to securely hold and support the heat exchanger tubes, facilitating the transfer of heat between two fluids. Its robust construction and excellent mechanical strength enable it to withstand high temperatures and pressures, making it suitable for demanding operating conditions.
By incorporating ASTM A182 316L tube sheets into heat exchangers, industries benefit from enhanced performance, increased reliability, and extended service life. The outstanding corrosion resistance of Grade 316L stainless steel ensures longevity and minimizes maintenance requirements, reducing downtime and overall operational costs.
In addition to its exceptional material properties, the 316L tube sheet boasts excellent formability, allowing for easy fabrication and customization to meet specific heat exchanger design requirements. This flexibility makes it a versatile choice for a wide range of heat exchanger configurations, including shell and tube, plate, and finned tube designs.
Overall, the ASTM A182 316L tube sheet stands as a reliable and high-performance solution for heat exchangers. Its superior corrosion resistance, mechanical strength, and adherence to industry standards make it an indispensable component in various industrial processes, enabling efficient heat transfer and contributing to overall system efficiency.
ASTM A182 F316L Flange Chemical Compostion and Properties
|
Grade |
|
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
N |
|
316 |
Min |
- |
- |
- |
0 |
- |
16.0 |
2.00 |
10.0 |
- |
|
Max |
0.08 |
2.0 |
0.75 |
0.045 |
0.03 |
18.0 |
3.00 |
14.0 |
0.10 |
|
|
316L |
Min |
- |
- |
- |
- |
- |
16.0 |
2.00 |
10.0 |
- |
|
Max |
0.03 |
2.0 |
0.75 |
0.045 |
0.03 |
18.0 |
3.00 |
14.0 |
0.10 |
|
|
316H |
Min |
0.04 |
0.04 |
0 |
- |
- |
16.0 |
2.00 |
10.0 |
- |
|
max |
0.10 |
0.10 |
0.75 |
0.045 |
0.03 |
18.0 |
3.00 |
14.0 |
- |
ASTM A182 F316L Flange Mechanical and Physical Properties
|
Grade |
Tensile Str |
Yield Str |
Elong |
Hardness |
|
|
Rockwell B (HR B) max |
Brinell (HB) max |
||||
|
316 |
515 |
205 |
40 |
95 |
217 |
|
316L |
485 |
170 |
40 |
95 |
217 |
|
316H |
515 |
205 |
40 |
95 |
217 |
ASTM A182 F316L Flange Physical Properties
|
Grade |
Density |
Elastic Modulus |
Mean Co-eff of Thermal Expansion (µm/m/°C) |
Thermal Conductivity |
Specific Heat 0-100°C |
Elec Resistivity |
|||
|
0-100°C |
0-315°C |
0-538°C |
At 100°C |
At 500°C |
|||||
|
316/L/H |
8000 |
193 |
15.9 |
16.2 |
17.5 |
16.3 |
21.5 |
500 |
740 |
ASTM A182 F316L Flange Application
Oil and Gas Industries
Food Processing Industries
Equipments
Pipeline
Power Industries
Ship Building Industries
Paper Industries
Cement Industries
Chemical Industries
