Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | UNS C70600 |
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case / Pallet |
| Delivery Time: | 5 - 60 Work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | According to Clients' Requirement |
| Standard: | ASTM B151, ASME SB151 | Material Grade: | UNS C70600, 2.0872 |
|---|---|---|---|
| Technics: | Forged | Size: | 1/2''-48''(DN15-DN1200) |
| Thickness: | SCH10-XXS(2-60mm) | Type: | Elbow,Nipple,Pipe Threaded,Reducer |
| Connection: | Welding,Female,Male | Application: | Construction,Gas And Oil Pipes,Air,Steam,Petroleum Gas Water |
| High Light: | C70600 Copper Nickel Alloy Fittings,Copper Nickel Alloy Threaded Fittings,Copper Nickel Alloy Steel Pipe Fittings |
||

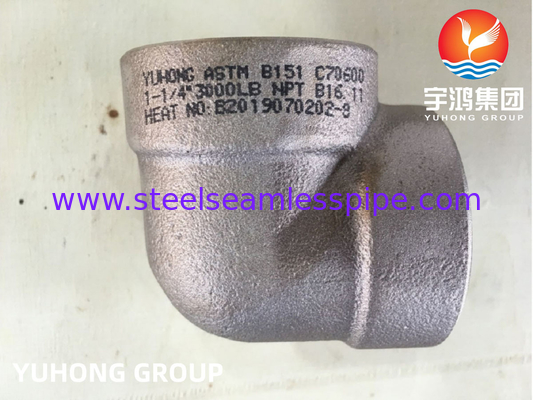

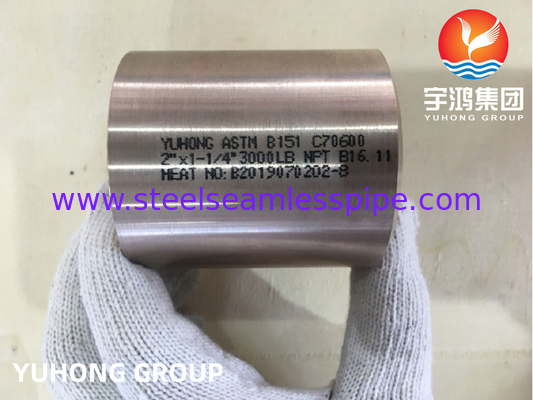

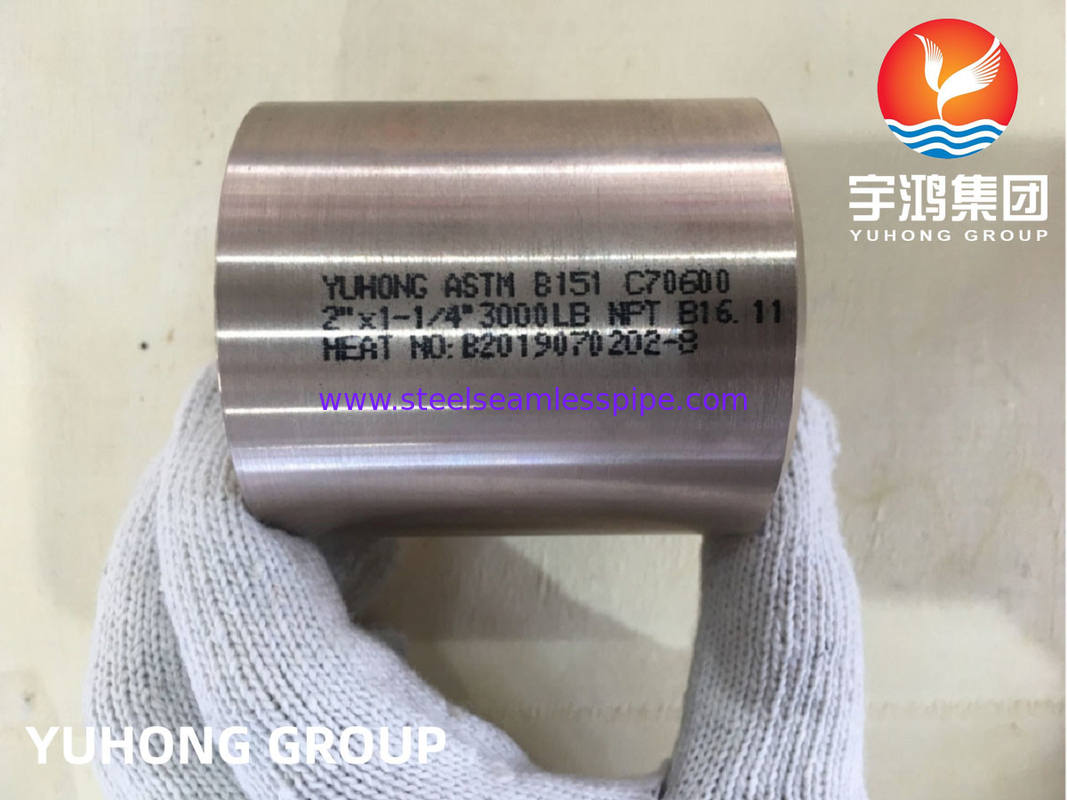

ASTM B151 C70600, 2.0872 Copper Nickel Alloy Threaded Fittings NPT 3000LBS B16.11
The C70600 Copper Nickel Alloy Fittings are also called as 90 / 10 Cupro Nickel Fittings, which means the chemical properties are including 90% copper, 10% nickel and small amounts of iron and manganese. Copper Nickel is widely used in marine applications due to its excellent resistance to seawater corrosion, high inherent resistance to biofouling and good fabricability.
Cu-Ni Forged Threaded Fittings is normally supplied as redrawn tubing in the annealed condition. The grouping of good ductility and strength give outstanding formability.
| Specifications | ASTM B151 / ASME SB151 |
| Sizes | Seamless Fittings: 1/2" - 10" Welded Fittings: 1/2" - 48" |
| Bending Radius | R=1D, 3D, 2D, 5D, 8D, 6D, 10D or Custom |
| Thickness | SCH30, SCH10, SCH 160, SCH20, SCH60, XS, STD SCH40, SCH 80, SCH 120, SCH 140, SCH 100, XXS available with NACE MR 01-75 |
| Connection | Welding |
| Fitting Dimensions | ASME B16.28, ASME/ANSI B16.9, BS4504, MSS-SP-43, BS1560, BS4504, BS10 |
| Manufacturing process | Push, Forge, Press, Cast, Etc. |
| Types | Stub End, Elbows, Tees, Pipe Cap, Crosses, Reducers, Pipe Bend, Etc. |
| Pressure Rating | Threaded end - 3000/ 2000/ 6000LBS Socket weld end- 6000/ 3000/ 9000LBS |
| Dimension Specification | MSS SP-79, 95, 83, 97, BS 3799, ASME 16.11 |
Equivalent Grades:
| STANDARD | WERKSTOFF NR. | UNS |
| Cu-Ni 90 / 10 | 2.0872 | C70600 |
Chemical Composition:
| Copper | Nickel | Lead | Iron | Manganese | Zinc | Phosphorous | Sulphur |
| Rem | 9-11 | 0.005 | 1-1.8 | 1 | 1 | 0.02 | 0.02 |
Mechanical Strength:
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 0.323 lb/in3 | 2260 F | 50000 Psi | 20000 Psi | 30 % |
Applications:
Oil and Gas Industries
Food Processing Industries
Pipeline Equipments
Power Industries
Ship Building Equipments
Paper Industries
Cement Industries
Chemical Industries
