Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM B366 Incoloy 800H 180Deg. Elbow |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | Pallet, Plywood case |
| Delivery Time: | 7 DAYS |
| Payment Terms: | L/C,T/T |
| Product Name: | Nickel Alloy 180Deg. Elbow | Standard: | ASTM B366, ASME SB366 |
|---|---|---|---|
| Dimension: | ASME/ANSI B16.9, JIS, DIN, EN, API 5L, Etc. | Material Grade: | Nickel Alloy 200, Monel400, Alloy 600,625,800,825, Etc. |
| Size: | 1/2" To 48" | Schedule: | Sch 10s To Sch XXS Or As Per Custom Requirement |
| Type: | Seamless, Welded | ||
| High Light: | Nickel Alloy 180 Degree Elbow,Incoloy 800h Butt Weld Elbow,Buttweld 180 Degree Elbow |
||

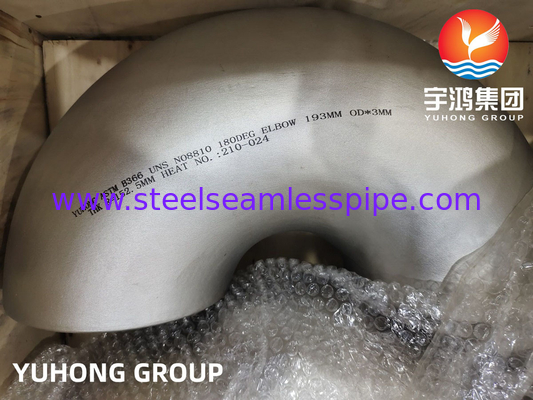

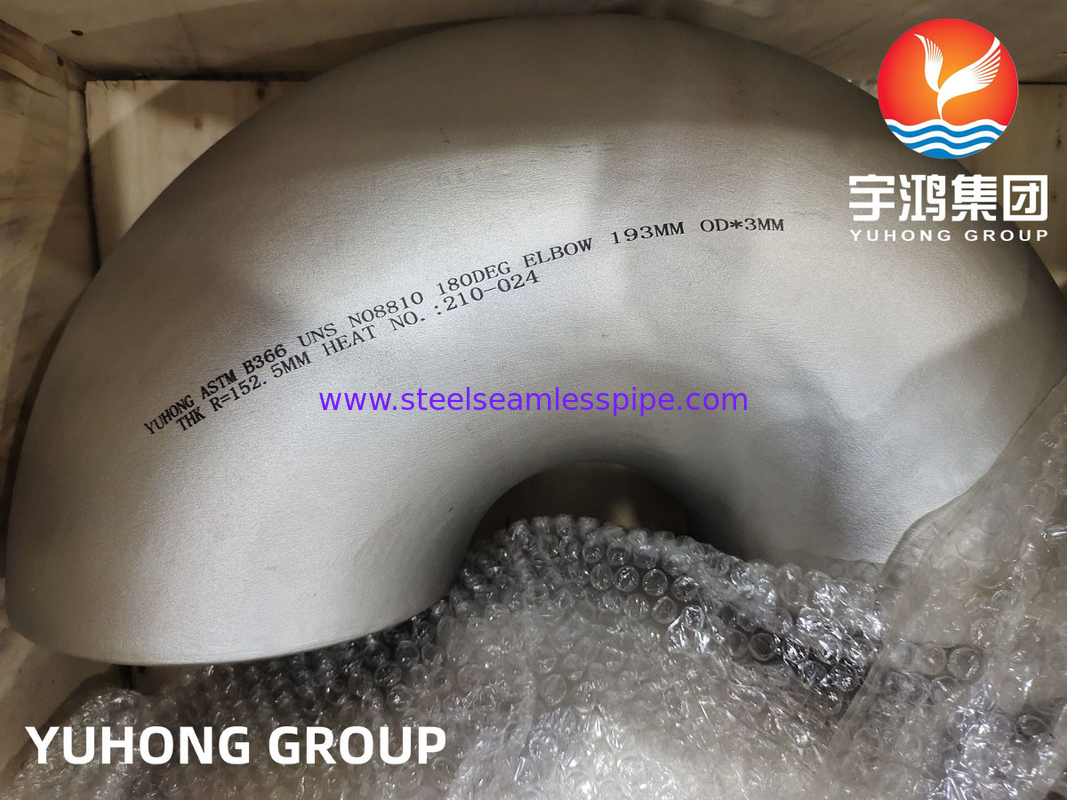

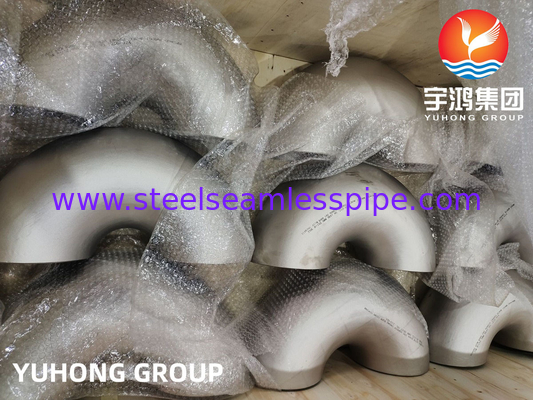

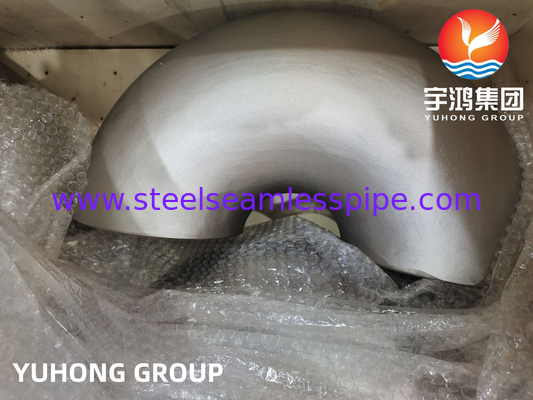

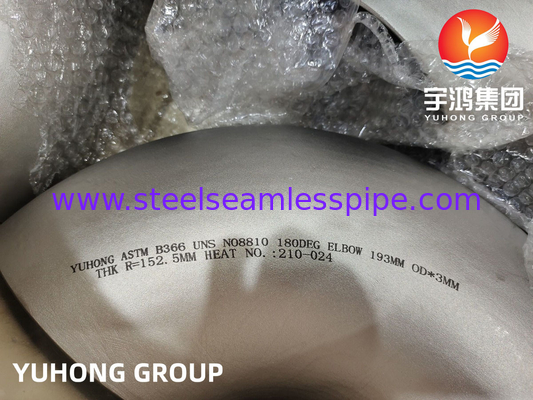

B16.9 Buttweld Pipe Fittings, ASTM B366 Incoloy 800H Nickel Alloy 180DEG. Elbow
ASTM B366 is a standard specification for factory-made wrought nickel and nickel alloy fittings. Incoloy 800H is a nickel-iron-chromium alloy that is part of this specification. Incoloy 800H elbow is specifically designed to withstand high temperatures and pressures, making it ideal for use in applications where the fluid or gas being transported is at high temperature and pressure. It also offers excellent resistance to corrosion and oxidation, which makes it suitable for use in harsh environments where other materials may corrode or degrade over time.
Equivalent Grades of Incoloy 800/800H/800HT Buttweld Fittings
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
| Incoloy 800 | 1.4876 | N08800 | NCF 800 | NA 15 | ЭИ670 | Z8NC32-21 | X10NiCrAlTi32-20 | XH32T |
| Incoloy 800H | 1.4958 / 1.4876 | N08810 | NCF 800H | NA 15(H) | ЭИ670 | Z8NC33-21 | X5NiCrAlTi31-20 | XH32T |
| Incoloy 800HT | 1.4859 / 1.4876 | N08811 | NCF 800HT | NA 15(HT) | ЭИ670 | – | X8NiCrAlTi32-21 | XH32T |
Mechanical Analysis of Incoloy 800/800H/800HT Buttweld Fittings
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 800 / 800H / 800HT | 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 % |
Chemical Composition of Incoloy 800/800H/800HT Buttweld Fittings
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| 800 | 0.10 max | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| 800H | 0.05 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| 800HT | 0.06 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60? | 0.15 – 0.60 |
Other Material Grades of Nickel Alloy Steel:
Alloy 200/Nickel 200/NO2200/2.4066/ASTM B366 WPN;
Alloy 201/Nickel 201/NO2201/2.4068/ASTM B366 WPNL;
Alloy 400/Monel 400/NO4400/NS111/2.4360/ASTM B366 WPNC;
Alloy K-500/Monel K-500/NO5500/2.475;
Alloy 600/Inconel 600/NO6600/NS333/2.4816;
Alloy 601/Inconel 601/NO6001/2.4851;
Alloy 625/Inconel 625/NO6625/NS336/2.4856;
Alloy 718/Inconel 718/NO7718/GH169/GH4169/2.4668;
Alloy 800/Incoloy 800/NO8800/1.4876;
Alloy 800H/Incoloy 800H/NO8810/1.4958;
Alloy 800HT/Incoloy 800HT/NO8811/1.4959;
Alloy 825/Incoloy 825/NO8825/2.4858/NS142;
Alloy 925/Incoloy 925/NO9925;
Hastelloy C/Alloy C/NO6003/2.4869/NS333;
Alloy C-276/Hastelloy C-276/N10276/2.4819;
Alloy C-4/Hastelloy C-4/NO6455/NS335/2.4610;
Alloy C-22/Hastelloy C-22/NO6022/2.4602;
Alloy C-2000/Hastelloy C-2000/NO6200/2.4675;
Alloy B/Hastelloy B/NS321/N10001;
Alloy B-2/Hastelloy B-2/N10665/NS322/2.4617;
Alloy B-3/Hastelloy B-3/N10675/2.4600;
Alloy X/Hastelloy X/NO6002/2.4665;
Alloy G-30/Hastelloy G-30/NO6030/2.4603;
Alloy X-750/Inconel X-750/NO7750/GH145/2.4669;
Alloy 20/Carpenter 20Cb3/NO8020/NS312/2.4660;
Alloy 31/NO8031/1.4562;
Alloy 901/NO9901/1.4898;
Incoloy 25-6Mo/NO8926/1.4529/Incoloy 926/Alloy 926;
Inconel 783/UNS R30783;
There are several types of elbows used in piping systems, including:
1. 45-degree elbow: This type of elbow changes the direction of flow by 45 degrees.
2. 90-degree elbow: This type of elbow changes the direction of flow by 90 degrees.
3. 180-degree elbow: This type of elbow changes the direction of flow by 180 degrees, effectively reversing the direction of flow.
4. Short radius elbow: This type of elbow has a shorter center-to-end distance than a standard elbow, making it ideal for use in tight spaces.
5. Long radius elbow: This type of elbow has a longer center-to-end distance than a standard elbow, which helps to reduce friction and pressure loss in the system.
Applications
Nickel alloy elbows are commonly used in piping systems for their excellent resistance to corrosion and high temperature environments. They are often used in industries such as petrochemical, chemical, and power generation. Some specific applications include oil and gas pipelines, chemical processing, and steam systems.
1. Marine engineering.
2. Chemical and hydrocarbon processing equipment.
3. Gasoline and freshwater tanks.
4. Crude petroleum stills.
5. De-aerating heaters.
6. Boiler feed water heaters and other heat exchangers.
7. Valves, pumps, shafts, fittings, and fasteners.
8. Industrial heat exchangers.
9. Chlorinated solvents.
10. Crude oil distillation towers.
