ASTM B366 N10276 ECC Reducer High Purity Medium Delivery Pipelines

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number:	ASTM B366 N10276

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	Negotiable
Packaging Details:	According to Client Requirements/ Ply-wooden Case/ Iron Case/ Bundle with plastic Cap
Delivery Time:	Depends on quantity
Payment Terms:	T/T, L/C AT SIGHT
Supply Ability:	According to Client Requirements

Contact Now

All Products

Stainless Steel Seamless Pipe (286)

Stainless Steel Seamless Tube (275)

Duplex Stainless Steel Pipe (127)

Duplex Stainless Steel Tube (28)

Needle Tube (102)

Fin Tube (619)

Heat Exchanger (16)

Heat Exchanger Tube (425)

Heat Exchanger Tube Bundle (37)

Heat Exchanger Tubesheet (116)

Heat Exchanger Baffle (36)

Air Cooler (8)

Pressure Vessel (4)

Stainless Steel Welded Pipe (57)

Stainless Steel Welded Tube (112)

Nickel Alloy Pipe (259)

Nickel Alloy Tube (78)

Copper Alloy Tube (222)

Alloy Steel Tube (182)

Titanium Tube (10)

Bright Annealed Tube (153)

Boiler Tube (141)

Steel Fitting (797)

Steel Flange (583)

Others (388)

Cladding Parts (7)

Detailed Product Description

Specifications:	ASTM B366	Material Grade:	N10276
Size:	1/8"NB TO 48"NB IN	Schedule:	SCH 10S - SCH XXS
Technical:	Butt Weld	Packaging:	PLY-WOODEN CASE OR PALLET
Highlight:	ECC Reducer , ASTM B366 ECC Reducer , N10276 ECC Reducer

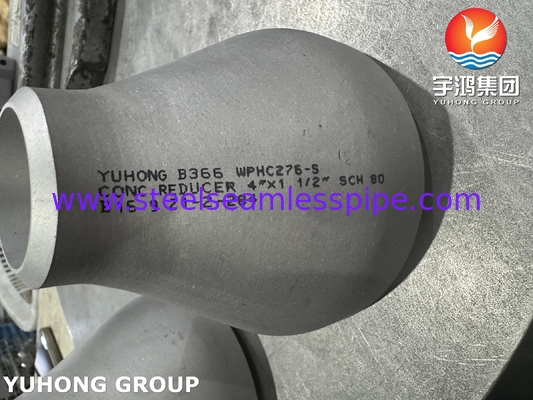

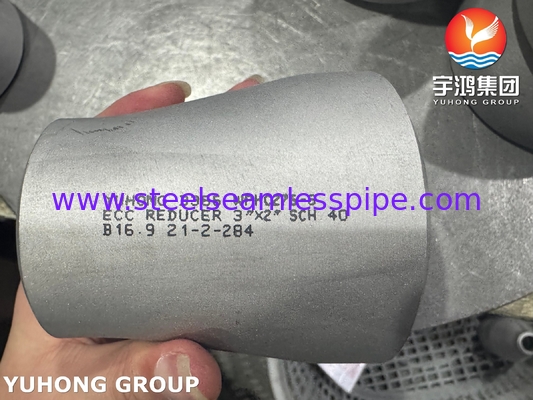

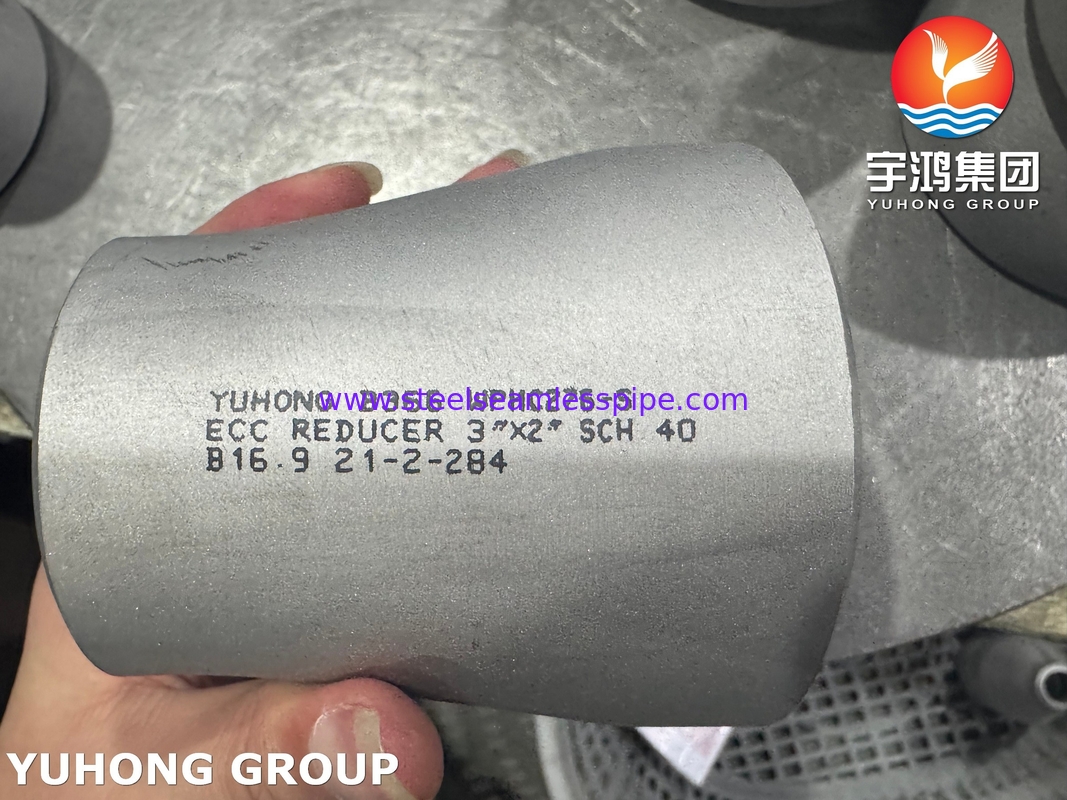

ASTM B366 N10276 REDUCER

ASTM B366 N10276 Reducer is a reducing pipe made of Hastelloy C-276 (UNS N10276), which complies with ASTM B366 standard and is designed for extreme corrosive environments. It is made of nickel-molybdenum-chromium as the core component, has excellent resistance to hydrochloric acid and chloride stress corrosion and high temperature stability (applicable temperature -196°C to 400°C), and has a density of about 8.89 g/cm³.

The tube is formed by welding and needs to be subjected to radiographic inspection, pressure testing and pickling passivation treatment. The size complies with ASME B16.9/B16.11 standards and is widely used in chemical industry, marine engineering and flue gas desulfurization systems to ensure long-term safe operation in strong acid and chlorine-containing media.

Mechanical Properties of ASTM B366 Hastelloy C276 Butt weld Pipe Fittings

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Hastelloy C276	8.89 g/cm3	1370 °C (2500 °F)	Psi – 1,15,000 , MPa – 790	Psi – 52,000 , MPa – 355	40 %

Chemical Composition of Grade Hastelloy C276 Butt weld Fittings

Grade	C	Mn	Si	S	Co	Ni	Cr	Fe	Mo	P
C276	0.010 max	1.00 max	0.08 max	0.03 max	2.50 max	50.99 min*	14.50 – 16.50	4.00 – 7.00	15.00 – 17.00	0.04 max

ASME SB366 Hastelloy Buttweld Fittings Equivalent Grades

STANDARD	WERKSTOFF NR.	UNS	JIS	GOST	EN	OR
Hastelloy C276	2.4819	N10276	NW 0276	ХН65МВУ	NiMo16Cr15W	ЭП760

Hastelloy C276 Specifications and Standards

Grade	North America	France	Germany	Japan	Russia	European	Russian	British	Other Names
Hastelloy C276	UNS N10276	-	WNR/DIN 2.4819	JIS NW 0276	GOST ХН65МВУ	EURONORM NiMo16Cr15W	OR ЭП760	–	Alloy C276/ Inconel C276

Application

1.Chemical industry: used in strong acid (hydrochloric acid, sulfuric acid), organic acid and mixed acid medium delivery systems, such as reactors, heat exchangers and pipeline connections, to resist chloride stress corrosion cracking (SCC).

2.Environmental protection and flue gas desulfurization (FGD): treatment of sulfur-containing flue gas, wet chlorine gas and acidic wastewater systems, to withstand high temperature and wet corrosion environments.

3.Marine engineering: seawater desalination equipment, submarine pipelines and ship systems, to resist chloride ion corrosion and microbial erosion in seawater.

4.Pharmaceutical and food processing: high-purity medium delivery pipelines, to avoid metal ion contamination, while withstanding corrosion by detergents (such as hypochlorous acid).

5.Energy and oil and gas: acidic gas fields (including H₂S, CO₂) and refining equipment in oil and gas production, to solve corrosion problems under high temperature and high pressure.
