Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ISO9001-2008, API 5L, API 5CT |
| Model Number: | ASME SA179 |
| Minimum Order Quantity: | 10PC |
|---|---|
| Price: | 1-130000 USD |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle With Plastic Cap |
| Delivery Time: | 5-70 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1500tons/month |
| Product: | Seamless Tube | Materialrd: | Carbon Steel |
|---|---|---|---|
| Standard: | ASME SA179 | Grade: | SA179 |
| Certificate: | ISO9001-2008, API 5L, API 5CT | Packing Details: | Ply-wooden Case /Iron Case/ Bundle With Plastic Cap |
| High Light: | Cold Drawn Low Carbon U Tubes,ASME SA179 Seamless Carbon U Tubes,Cardelas U Bend Tube |
||
ASME SA179 Seamless Cold Drawn Low Carbon U Tubes For Calderas
YuHong can offer SA179 U carbon steel tubes and we sell these products with highest quality in more than 70 countries.
ASME SA179 this specification covers minimum-wall thickness, seamless cold-drawn low-carbon steel tubes for tubular, heat exchanger,
condensers, and other heat transfer services. SA 179 carbon steel tube is supplied and produced by cold drawning method and it is widely used in industries such as petroleum, chemical, medical, food, light industry, machinery, instrument, include industrial pipeline and mechanical structure parts, etc.

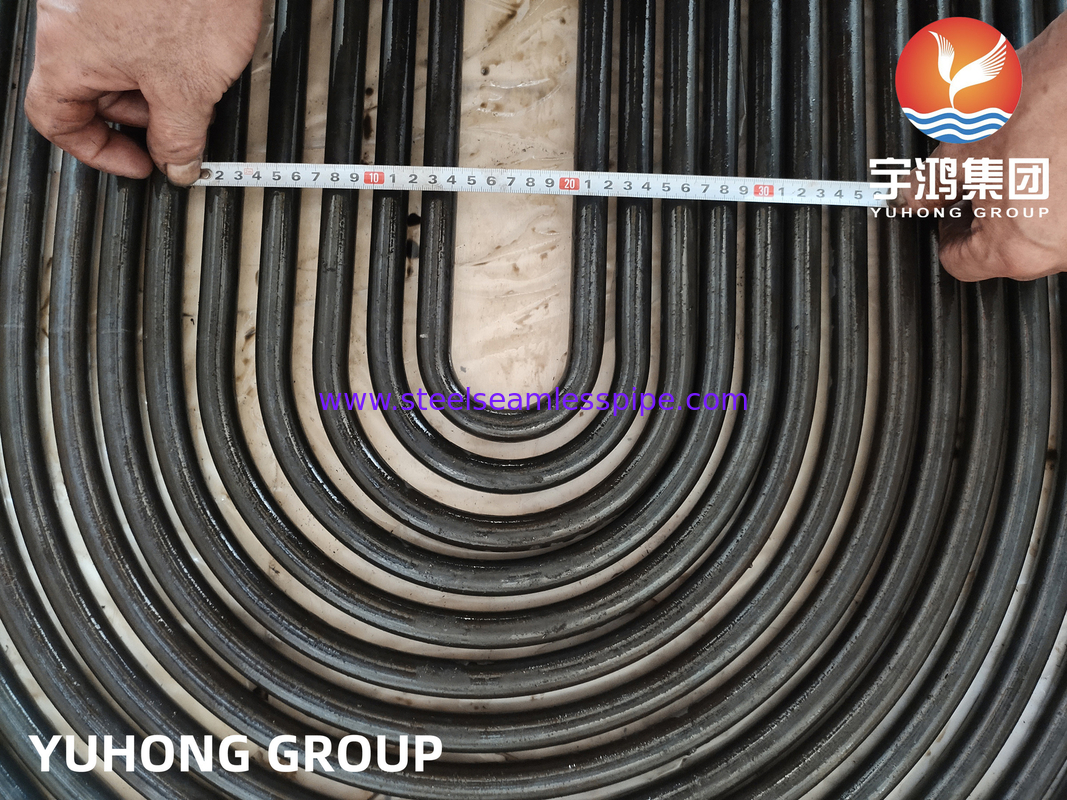

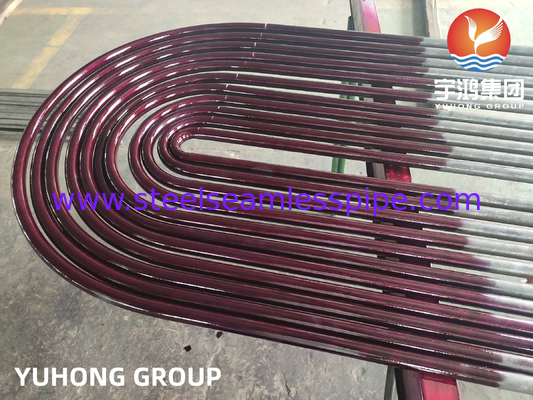

U tubes are manufactured by bending straight tubes. Bending is done cold on an automatic U-bend. To ensure tube wall thinning and diameter ovality are controlled, tube bending is accomplished with a mandrel inserted into the tube. What's more, the U-bend of the U-tube is stress relieved under controlled conditions and cycles for extended life.
Specifications
| Dimensions | All Pipe is manufactured and inspected/tested to the relevant standards including ASTM, ASME, API. | ||||
| Sizes |
This specifification covers tubes 1/8 to 3 in. [3.2 to 76.2mm], inclusive, in outside diameter.
|
||||
| Manufacture | Tubes shall be made by the seamless process and shall be cold drawn. | ||||
| Heat Treatment |
Tubes shall be heat treated after the fifinal cold draw pass at a temperature of 1200°F [650°C] or higher.
|
||||
| Length | As required by clients | ||||
| Wall Thickness | BWG required by clients | ||||
| Surface Condition | Finished tubes shall be free of scale. A slight amount of oxidation will not be considered as scale | ||||
| Bending Radius | From 1.5*OD(Outside Diameter) To 1500mm, ≤1.5*OD,necessary To agree precision of geometrics | ||||
| Straight Tubes | max length 35000mm | ||||
Test Required
Corrosion Test
Chemical Analysis
Mechanical Tests: Flattening test, Flaring test, Flange test, Hardness Test and Hydrostatic test
Reverse-bend and Re. flat tests
Eddy Current Testing
Hydrostatic Testing
Air Under Pressure Test
Visual Inspection
Chemical Composition
| Chemical Composition | C | Mn | P≤ | S≤ | Si≤ |
| 0.06-0.18 | 0.27-0.63 | 0.035 | 0.035 | 0.25 |
Mechanical Property
| Steel Grade | Yield Strength (Mpa) | Tensile Strength (Mpa) | Elongation (%) | Hardness |
| ASTM A179 | ≥180 | ≥325 | ≥35 | ≤72 HRB |
Applications Industry
Gas Processing Industries
Petrochemical Industries
Power Generation
Food Processing Industries
Chemical Industries
Oil And Gas Industries
Fertilizers Industries
Sugar Industries
Refining & Refrigeration
Heating and Air Conditioning
Pulp and Paper Indusry
Pharmaceuticals Industry
Energy Industry
Aerospace Industry
