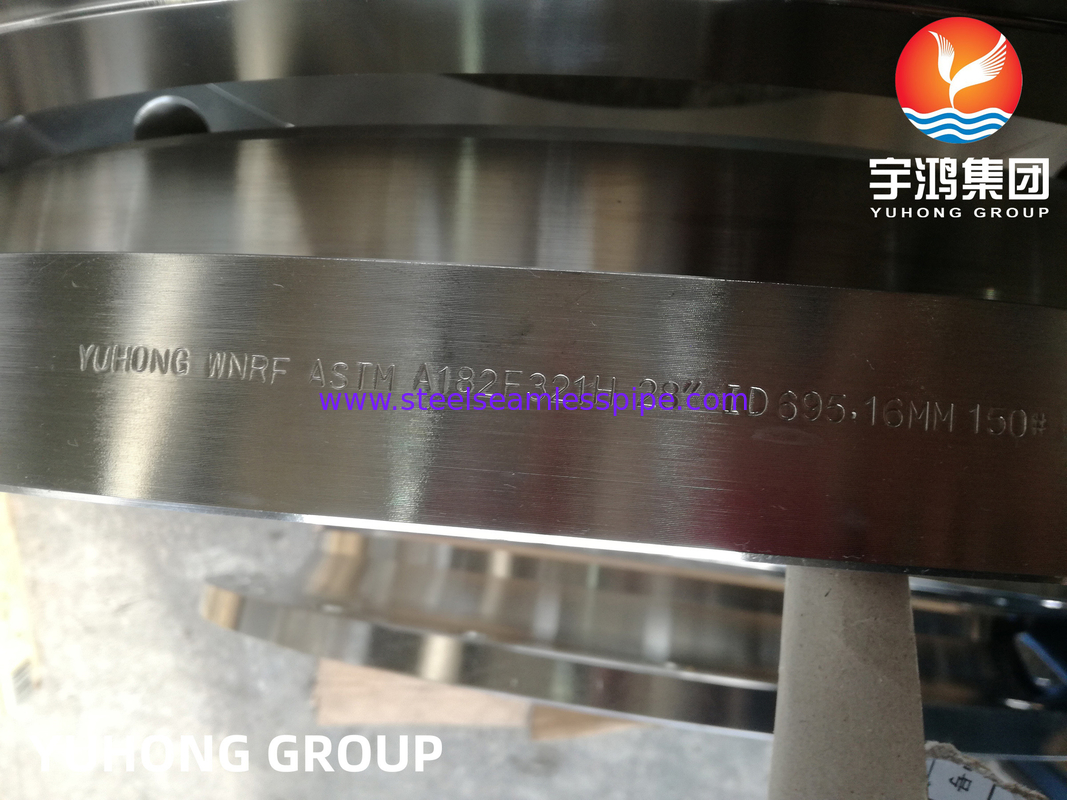

Stainless Steel Flanges ASTM A182 F321H, UNS S32109 Weld Neck Raised Face Flanges B16.47

Stainless Steel Flanges ASTM A182 F321H, UNS S32109 Weld Neck Raised Face Flanges B16.47

  • Stainless Steel Flanges ASTM A182 F321H, UNS S32109 Weld Neck Raised Face Flanges B16.47
  • Stainless Steel Flanges ASTM A182 F321H, UNS S32109 Weld Neck Raised Face Flanges B16.47
  • Stainless Steel Flanges ASTM A182 F321H, UNS S32109 Weld Neck Raised Face Flanges B16.47
  • Stainless Steel Flanges ASTM A182 F321H, UNS S32109 Weld Neck Raised Face Flanges B16.47
Stainless Steel Flanges ASTM A182 F321H, UNS S32109 Weld Neck Raised Face Flanges B16.47
Product Details:
Place of Origin: China
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Model Number: F321H, UNS S32109
Payment & Shipping Terms:
Minimum Order Quantity: 3 Pieces
Price: Negotiable
Packaging Details: Ply-wooden Case, Pallet
Delivery Time: 5 - 60 Work days
Payment Terms: L/C, T/T
Supply Ability: According to Clients' Requirement
Contact Now
All Products
Stainless Steel Seamless Pipe (308)
Stainless Steel Seamless Tube (297)
Duplex Stainless Steel Pipe (132)
Duplex Stainless Steel Tube (33)
Needle Tube (134)
Fin Tube (672)
Heat Exchanger (20)
Heat Exchanger Tube (443)
Heat Exchanger Tube Bundle (40)
Heat Exchanger Tubesheet (117)
Heat Exchanger Baffle (37)
Air Cooler (9)
Pressure Vessel (4)
Stainless Steel Welded Pipe (58)
Stainless Steel Welded Tube (120)
Nickel Alloy Pipe (266)
Nickel Alloy Tube (92)
Copper Alloy Tube (240)
Alloy Steel Tube (204)
Titanium Tube (15)
Bright Annealed Tube (155)
Boiler Tube (151)
Steel Fitting (826)
Steel Flange (615)
Others (401)
Cladding Parts (7)
Detailed Product Description
Standard: ASTM A182, ASME SA182 Material Grade: F321H, UNS S32109
Size: 1/2"-120" Pressure: Class150-2500, PN6-PN100
Type: Threaded Flange,Slip On Flange,socket Weld Flange,weld Neck Flange,LAP Joint Flange Technics: Froged
Material: Stainless Steel Application: Petroleum,chemical,fittings And Connection,beer
Highlight:

Weld Neck Stainless Steel Flanges

,

F321H Stainless Steel Flanges

,

Raised Face Flanges B16.47

Stainless Steel Flanges ASTM A182 F321H, UNS S32109 ​Weld Neck Raised Face Flanges B16.47



ASTM A182 F321, 321H Stainless Steel Flanges are made up of a titanium stabilized chromium nickel austenitic stainless steel which is resistant to intergranular corrosion. The addtion of titanium makes the steel strong and e against intergranular corrosion at temperature ranging from 425 Degrees to 850 Degrees Celsius.



Specifications ASTM A182, ASME SA182
Size Range 1/2″ to 48″, DN10~DN5000
Standards ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flanges, ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN
Main Types Forged / Threaded / Screwed / Plate
Types

Blind Ring Flange (BLRF)

Lap Joint Ring Flange (LJRF)

Socket Weld Ring Flange (SWRF)

Threaded Ring Flange

Weld Neck Ring Flange (WNRF)

Slip-On Ring Flange (SORF)

Ring Type Joint Flange (RTJF)
Production Technique Forged, Heat treated and Machined
Connect Type/ Flange Face Type Ring Type Joint (RTJ), Flat Face (FF), Lap-Joint Face (LJF), Raised Face (RF), Large Male-Female (LMF), Small Male-Female (SMF), Large Tongue & Groove, Small Tongue, Groove



Equivalent Grades:

STANDARD UNS WERKSTOFF NR.
SS321H S32109 1.4878



Stainless Steel Flanges ASTM A182 F321H, UNS S32109 Weld Neck Raised Face Flanges B16.47 0



Chemical Composition:

C Mn Si P S Cr N Ni Ti
0.04 - 0.1 2 max 1 max 0.045 max 0.03 max 17 - 19 0.1 max 9 - 12 4(C+N) - 0.7 max



Mechanical Properties:

Density 8000 kg/m3
Yield Strength (0.2%Offset), min Psi – 30000 , MPa – 205
Tensile Strength, min Psi – 75000 , MPa – 515
Melting Point, min 1454 °C (2650 °F)
Elongation, min 35 %



Applications:

Oil and Gas Industries

Food Processing Industries

Pipeline Equipments

Power Industries

Ship Building Equipments

Paper and Pulp Plants

Cement Industries

Chemical Industries



Stainless Steel Flanges ASTM A182 F321H, UNS S32109 Weld Neck Raised Face Flanges B16.47 1
