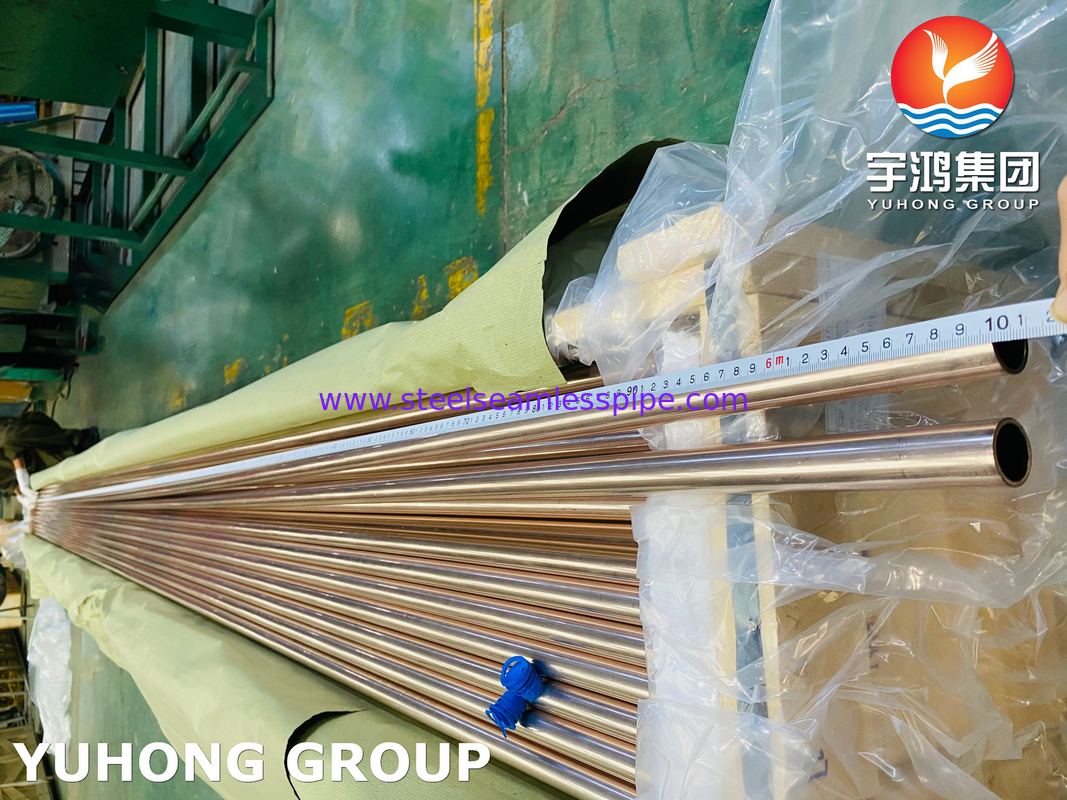

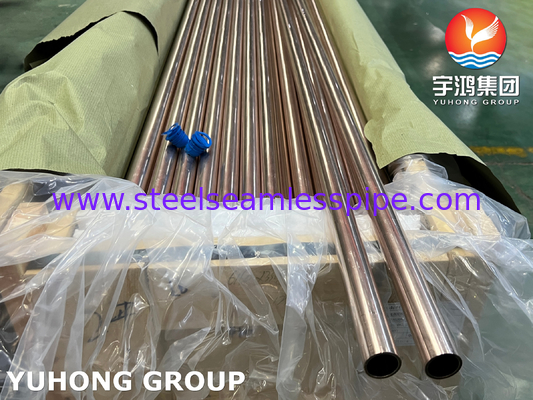

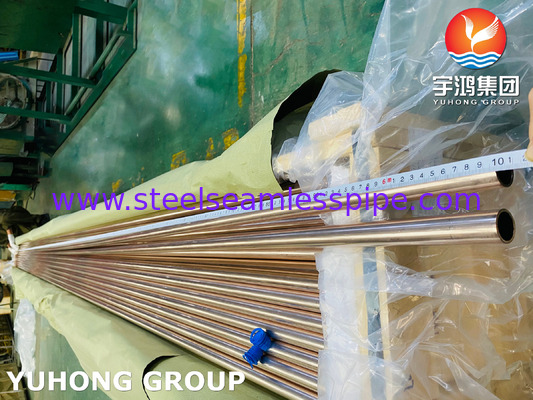

ASME SB111 C70600, CU/NI 90/10 Copper-Nickel Tube for Heat Exchanger
90/10 Cupro-Nickel is a copper-nickel alloy that shows good resistant to stress corrosion. Due to the addition of small amounts of iron and manganese, C706 CuNi is often used when an application will involve high-velocity
seawater. 90-10 Copper-nickel demonstrates good hot and cold working properties and is readily weldable. Typical 90/10 CuNi application in the chemical and marine industries include tubes and tubesheets for condensers, evaporators and heat exchangers. 90/10 Copper-Nickel is inherently antimicrobial, making it a good choice for touch surface applications.
Specifications for C706 90/10 Copper-Nickel
| ASTM | ASME | Military | |
| Bar | ASTM B151 | ASME SB-151 | MIL-C-15726 |
| Forging | MIL-C-24679 | ||
| Sheet | ASTM B171 | ASME SB-171 | MIL-C-15726 |
| Plate | ASTM B171 | ASME SB-171 | MIL-C-15726 |
| Pipe | ASTM B466 | ASME SB-466 | MIL-T-16420 |
| Tube | ASTM B111 | ASME SB-111 | MIL-T-15005 |
Material Grade:
| Material Designation | Corresponding Material Symbol | ||||
| ASTM B111 | BS2871 | JIS H3300 | DIN1785 | GB/T 8890 | |
| Copper Nickel | C70600 | CN102 | C7060 | CuNi10Fe1Mn | BFe10-1-1 |
| C71500 | CN107 | C7150 | CuNi30Mn1Fe | BFe30-1-1 | |
| C71640 | CN108 | C7164 | CuNi30Fe2Mn2 | BFe30-2-2 | |
| C70400 | — | — | — | BFe5-1.5-0.5 | |
| — | — | — | — | B7 | |
| Aluminium Brass | C68700 | CZ110 | C6870 | CuZn20AL2 | HAL77-2 |
| Admiralty Brass | C44300 | CZ111 | C4430 | CuZn28Sn1 | HSn70-1 |
| Boric Brass | — | — | — | — | Hsn70-1B |
| — | — | — | — | Hsn70-1 AB | |
| Arsenical Brass | — | CZ126 | — | — | H68A |
| Brass Tube | C28000/C27200 | CZ108 | C2800/C2700 | CuZn36/CuZn37 | H65/H63 |
Applications:
The Integral Low Finned Tubes find the preference in the following industrial sectors:
