Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG GROUP |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | TP347H |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Ply-wooden Case/Bundle |
| Delivery Time: | Depends on quantity |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000Ton/Month |
| Material Grade: | TP347H | Standard: | ASTM A376 |
|---|---|---|---|
| Size: | 6-762mm | W.T: | 0.5 ~ 60mm |
| Length: | Single Random, Double Random & Cut Length | NDT: | ET/HT/UT/PT |
| Packing: | Ply-wooden Case/Bundle | Application: | Reheater Tube/ Steam Boiler |

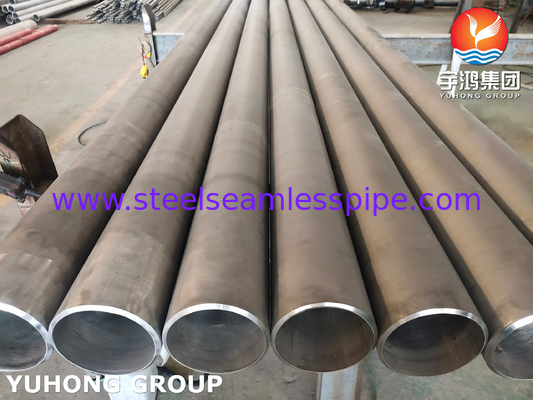

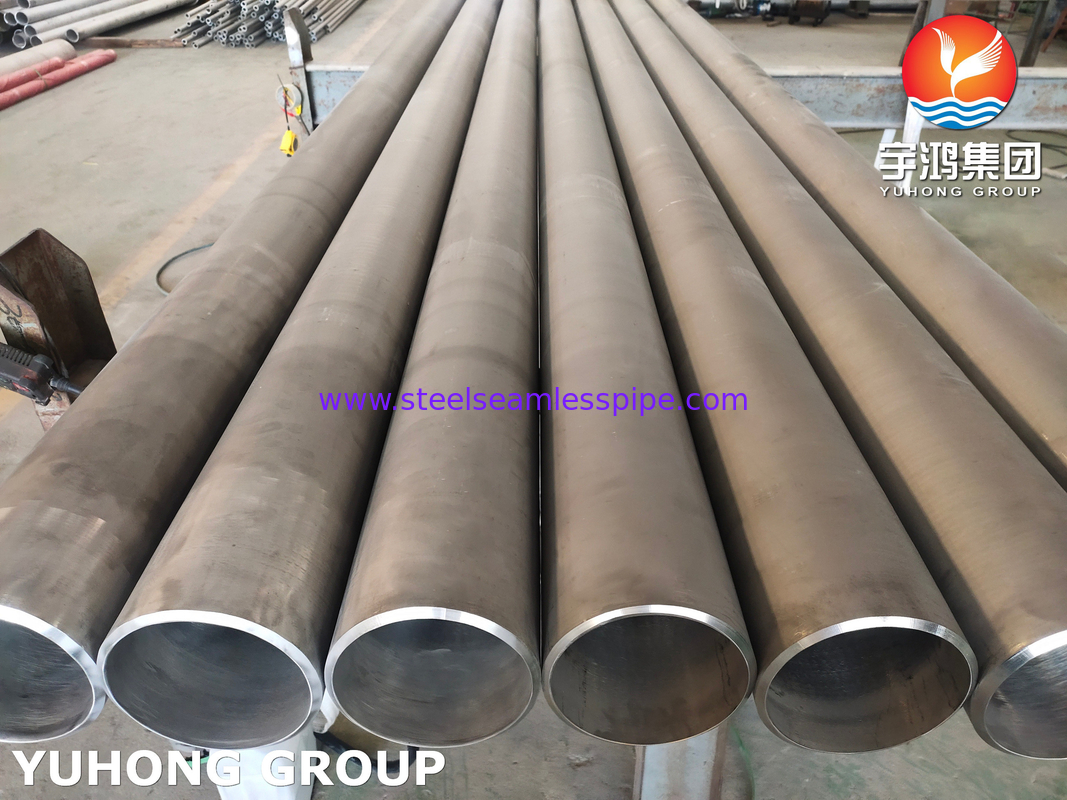

SMLS PIPE 1Cr19Ni11Nb ASTM A376 TP347H Orefractory Steel Reheater tube steam boiler
Overview
TP347H (1Cr19Ni11Nb) belongs to the high carbon Cr-Ni austenitic stainless steel containing niobium, because of the stabilizing element Nb, its resistance to intergranular corrosion and resistance to polysulfate intergranular stress corrosion performance is good, in acid, alkali, salt and other corrosive media its corrosion resistance line and Ti containing 18-8 austenitic stainless steel is similar, so it is widely used in boilers, power generation, petroleum, chemical, synthetic fibers, food Paper industry. Because Nb is less prone to burnout than Ti, this steel grade can be used as a weld core for welding chromium-nickel austenitic stainless steel. The steel has higher high-temperature strength and better resistance to high-temperature oxidation than the 316 series, so it is often used as a Orefractory Steel
Chemical Composition of ASTM A376 TP347H
| Grade | C | Ni | Si | N | S | Mn | P | Cr | Mo | |
| SS 347 | min. | 0.04 | 9 | – | – | – | – | – | 17 | 2 |
| max. | 0.1 | 13 | 1 | – | 0.03 | 2 | 0.045 | 20 | 3 | |
Mechanical Strength of ASTM A376 TP347H
| Grade | Tensile Strength (MPa) min | Elongation (% in 50mm) min | Yield Strength 0.2% Proof (MPa) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| SS 347 | 515 | 35 | 205 | 92 | 201 |
Physical Properties of ASTM A376 TP347H
| Properties | Metric | Imperial |
| Density | 7.7 – 8.03 g/cm3 | 0.278 – 0.290 lb/in³ |
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
| BS | En | No | Name | ||||
| 347 | S34700 | 347S31 | 58G | 1.455 | X6CrNiNb18-10 | 2338 | SUS 347 |
ASTM A376 TP347H Application
