ASTM A312 TP310S Stainless Steel Corrugated Tubes For Heat Exchangers And Boilers

ASTM A312 TP310S Stainless Steel Corrugated Tubes For Heat Exchangers And Boilers

  • ASTM A312 TP310S Stainless Steel Corrugated Tubes For Heat Exchangers And Boilers
  • ASTM A312 TP310S Stainless Steel Corrugated Tubes For Heat Exchangers And Boilers
  • ASTM A312 TP310S Stainless Steel Corrugated Tubes For Heat Exchangers And Boilers
  • ASTM A312 TP310S Stainless Steel Corrugated Tubes For Heat Exchangers And Boilers
ASTM A312 TP310S Stainless Steel Corrugated Tubes For Heat Exchangers And Boilers
Product Details:
Place of Origin: China
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Model Number: TP310 / 310S / 304 / 304L / 316 / 316L
Payment & Shipping Terms:
Minimum Order Quantity: 100 KGS
Price: Negotiable
Packaging Details: Ply-Wooden Case /Iron Case/ Bundle with Plastic Cap
Delivery Time: 5 - 90 Work Days
Payment Terms: T/T, L/C
Supply Ability: According to Clients' Requirement
Contact Now
All Products
Stainless Steel Seamless Pipe (286)
Stainless Steel Seamless Tube (275)
Duplex Stainless Steel Pipe (127)
Duplex Stainless Steel Tube (28)
Needle Tube (102)
Fin Tube (619)
Heat Exchanger (16)
Heat Exchanger Tube (425)
Heat Exchanger Tube Bundle (37)
Heat Exchanger Tubesheet (116)
Heat Exchanger Baffle (36)
Air Cooler (8)
Pressure Vessel (4)
Stainless Steel Welded Pipe (57)
Stainless Steel Welded Tube (112)
Nickel Alloy Pipe (259)
Nickel Alloy Tube (78)
Copper Alloy Tube (222)
Alloy Steel Tube (182)
Titanium Tube (10)
Bright Annealed Tube (153)
Boiler Tube (141)
Steel Fitting (797)
Steel Flange (583)
Others (388)
Cladding Parts (7)
Detailed Product Description
Standard: ASTM A312 / ASME SA312 Material Grade: TP310 / 310S / 304 / 304L / 316 / 316L
Type: Corrugated Tube Outer Diameter: 6-630mm
Technique: Cold Rolled, Hot Rolled Application: Construction,Heat Exchanger,oil And Gas,Industry,boiler

ASTM A312 TP310S Stainless Steel Corrugated Tubes For Heat Exchangers And Boilers

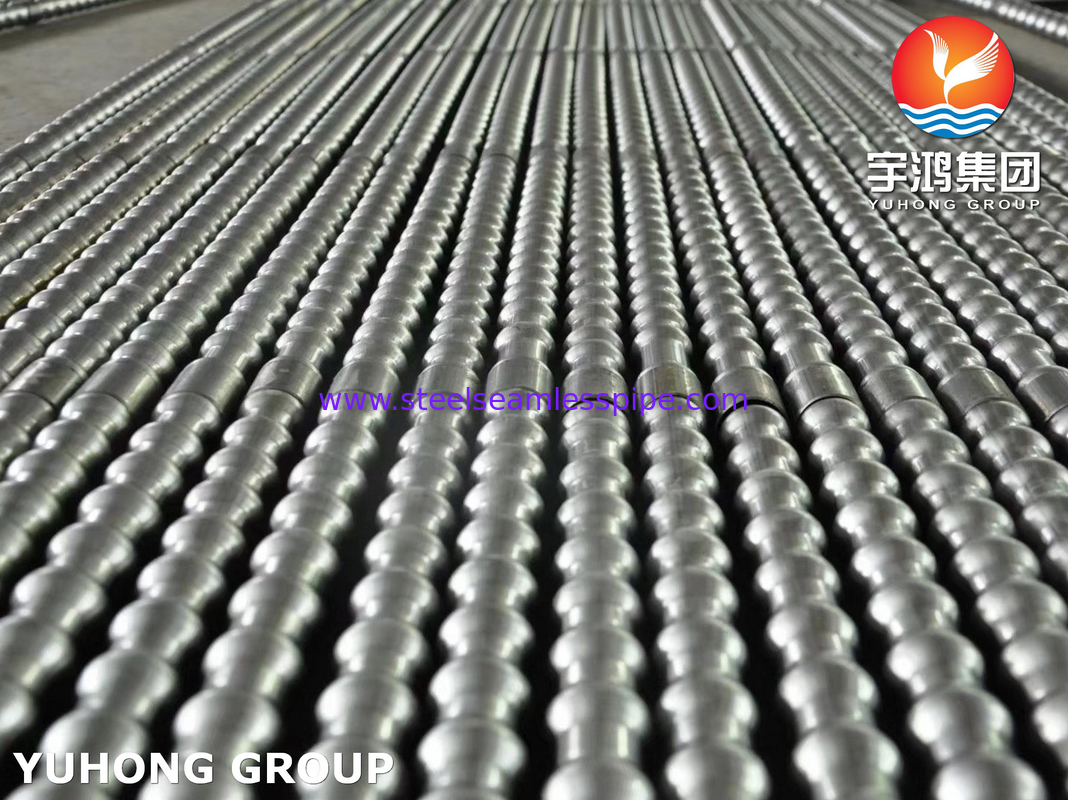

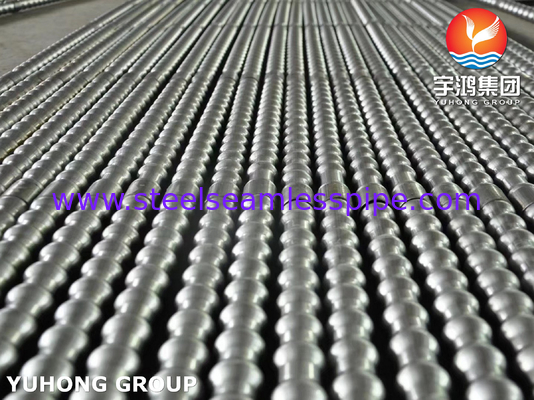

Stainless Steel Corrugated Tube is tube made of stainless steel with corrugation on the inside or outside. Stainless Steel Corrugated Tube is a type of tube with corrugations which allow the tube to be bent and change direction of flow without having to make more connections through welding. Thus there will be no leak through the bends.



Grade specifications:

Grade UNS No Old British Euronorm SS JIS
BS En No Name
SS310S S31008 310S16 – 1.4845 X8CrNi25-21 2361 SUH 310S



ASTM A312 TP310S Stainless Steel Corrugated Tubes For Heat Exchangers And Boilers 0



Chemical Composition:

Grade UNS C Mn P S Si Cr Ni
SS310S S31008 0.08 max 2 max 0.045 max 0.03 max 1 max 24 – 26 19 – 22



Mechanical Properties:

Grade SS310S
Tensile Strength (MPa) min 515
Yield Strength 0.2% Proof (MPa) min 205
Elongation (% in 50mm) min 40
Rockwell B (HRB) max 92
Brinell (HB) max 201



Applications:

Chemical Industry

Pharmaceutical Industry

Petrochemical Industry

Power generation

Renewable energy

Pulp and Paper Plant

Food and beverage

Oil and gas Plant

Marine Industry

Fertilizers



ASTM A312 TP310S Stainless Steel Corrugated Tubes For Heat Exchangers And Boilers 1
