Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM A268/ASME SA268 |
| Minimum Order Quantity: | 1000KGS |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | Ply- Wooden Case/Plastic Bag / Plastic Cap |
| Delivery Time: | 10-75DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | ACCORDING TO CUSTOMER'S REQUEST |
| Tube Type: | Welded Or Seamless | Outside Diameter: | 1/4"- 8"-6.25mm -203mm |
|---|---|---|---|
| Wall Thickness: | 0.02"-0.5"-0.5mm-12mm | Application: | Heat Exchanger/Condenser/Boiler |

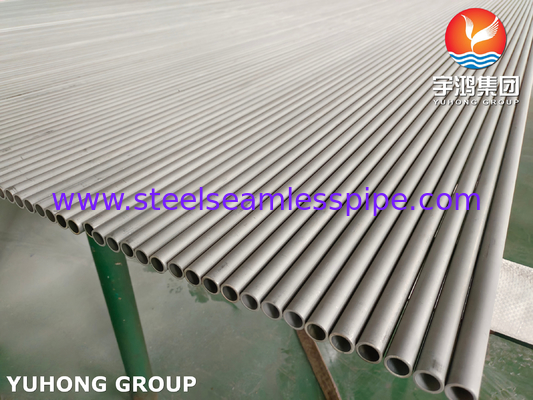

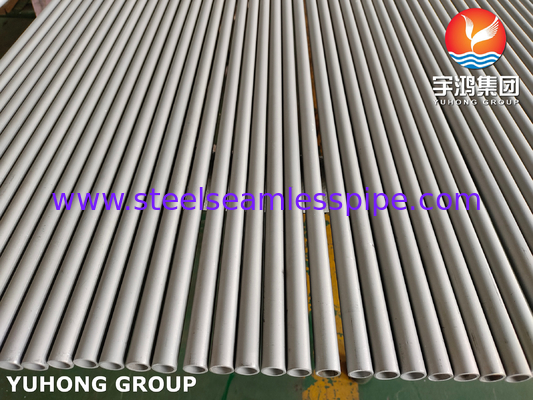

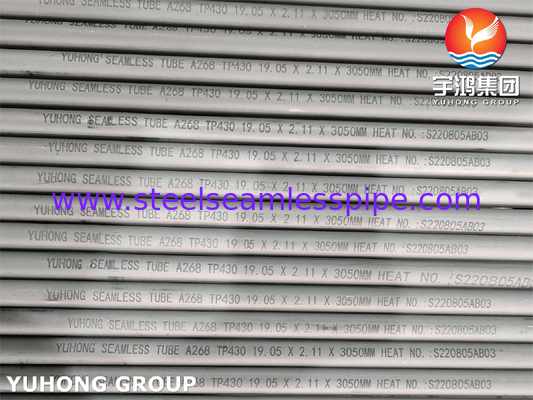

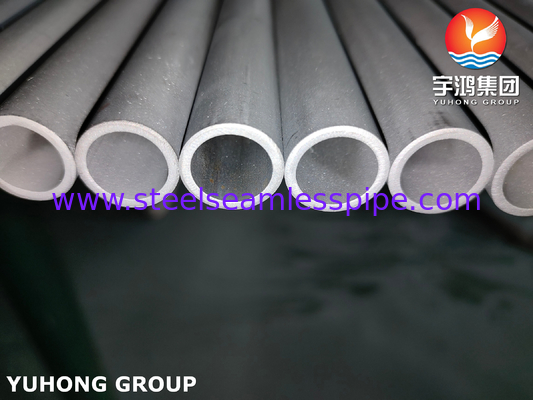

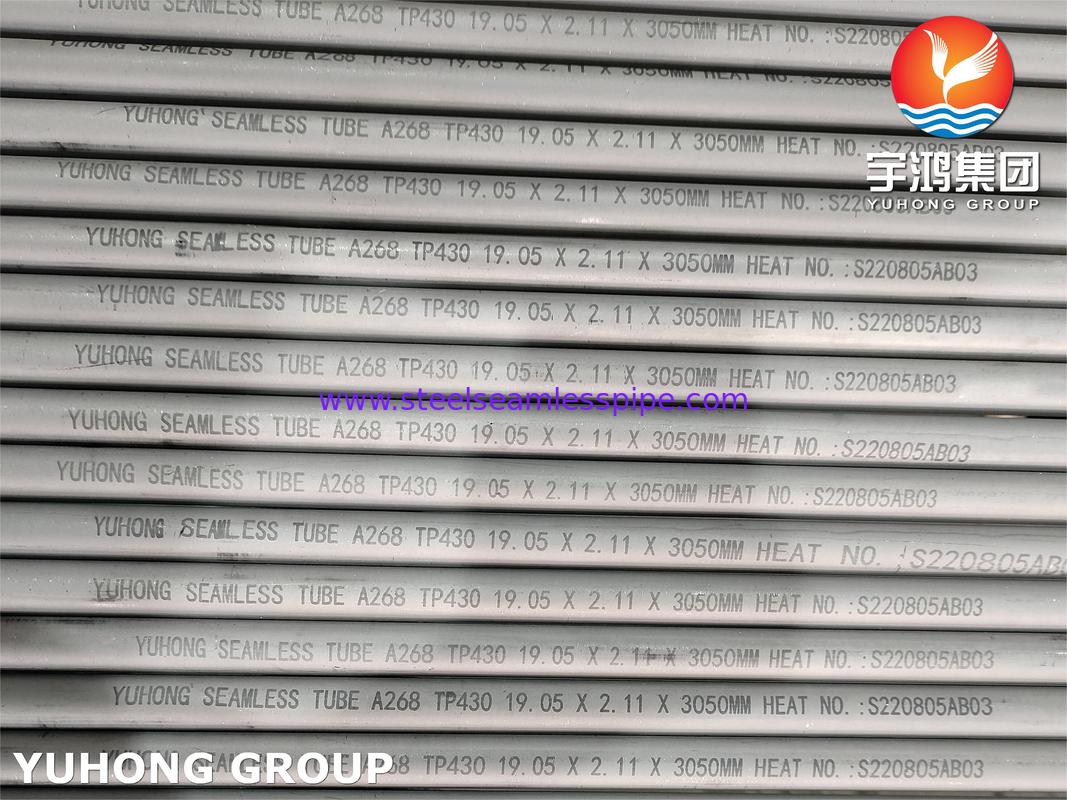

ASTM A268 TP430 Ferritic and Martensitic Seamless Tube For General Service
We are one of the biggest manufactures of stainless steel & duplex steel & alloy steel tubes and pipes in China. With development more than 20 years, we have accumulated a great many clients all around the world and Yuhong products also won the great praise among the customers.
ASTM A268 is Standard specification for Seamless and Welded Ferritic and Martensitic Stainless Steel Tubing for General Service, the grades contain TP410, TP405, TP420, TP430, TP430Ti, TP403, TP409, TP444, TP439 and TP446, it covers standard specification for a number of grades of nominal-wall-thickness, welded ferritic and martensitic stainless steel tubing for general corrosion-resisting and high-temperature service, ASME SA268 is alternative standard.
The tubes shall be made by the seamless or welded process with no filler metal added, tubes shall be reheated to a temperature of 1200.F [650.C] or higher and cooled to meet the requirements of this specification, All tubes shall be free of excessive mill scale, suitable for inspection. A slight amount of oxidation will not be considered as scale.
The steel shall conform to the required chemical composition for carbon, manganese, phosphorus, sulfur, silicon, nickel, chromium, molybdenum, aluminum, copper, nitrogen, titanium, and columbium, most of these grades are commonly characterized by being ferromagnetic.
| Grade: | TP410 | TP430 | TP439 |
|---|---|---|---|
| UNS | S41000 | S43000 | S43035 |
| C, Max | 0.15 | 0.12 | 0.07 |
| Mn,Max | 1.00 | 1.00 | 1.00 |
| P, Max | 0.04 | 0.04 | 0.040 |
| S, Max | 0.03 | 0.03 | 0.030 |
| Si, Max | 1.00 | 1.00 | 1.00 |
| Ni | … | … | 0.50max |
| Cr | 11.5-13.5 | 16.0-18.0 | 17.00-19.00 |
| Mo | … | … | … |
| Al | … | … | 0.15 |
| Cu | … | … | … |
| N | … | … | 0.04 |
| Ti | … | … | 0.20+4(C+N)Min, 1.10max |
Variations in outside diameter, wall thickness, and length from those specified shall not exceed the amounts prescribed below.
| Outside Diameter, In.[Mm] | OD Tolerance, In.[Mm] | Wall Thickness, % | Thin Wall Tubes |
|---|---|---|---|
| Up To1⁄2, [12.7], Excl | ±0.005 [0.13] | ±15 | |
| 1⁄2 To 11⁄2 [12.7 To 38.1], Excl/Td> | ±0.005 [0.13] | ±10< | Less Than 0.065 In. [1.6 Mm] Nominal |
| 11⁄2 To 31⁄2 [38.1 To 88.9], Excl | ±0.010 [0.25] | ±10 | Less Than 0.095 In. [2.4 Mm] Nominal |
| 31⁄2 To 51⁄2 [88.9 To 139.7], Excl | ±0.015 [0.38] | ±10 | Less Than 0.150 In. [3.8 Mm] Nominal |
| 51⁄2 To 8 [139.7 To 203.2], Incl | ±0.030 [0.76] | ±10 | Less Than 0.150 In. [3.8 Mm] Nominal |
The steel shall conform to the following tensile properties: tensile strength, yield strength, and elongation.
| Grade | Tensile Strength, Min, Ksi [MPa] | Yield Strength, Min, Ksi [MPa] | ELONGATION. MIN, % |
|---|---|---|---|
| TP410 | 55 [380] | 30 [205] | 20 |
| TP430 | 60 [415] | 35 [240] | 20 |
| TP439 | 60 [415] | 30 [205] | 20 |
