Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | TP430, UNS S43000 |
| Minimum Order Quantity: | 100 KGS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-Wooden Case /Iron Case/ Bundle with Plastic Cap |
| Delivery Time: | 5 - 90 Work Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | According to Clients' Requirement |
| Standard: | ASTM A268, ASME SA268 | Material Grade: | TP430, UNS S43000 |
|---|---|---|---|
| Steel Grade: | 400 Series | Outer Diameter: | 6 ~ 860mm; |
| Thickness: | 1mm-20mm | Ends: | Bevled End, Plain End, Thread End |
| Type: | Seamless,Welded | Shape: | Round |
| Surface: | Pickled, Annealed, Polished, Bright Annealed | Applications: | Construction,Decoration,Industry,boiler,Chemical |

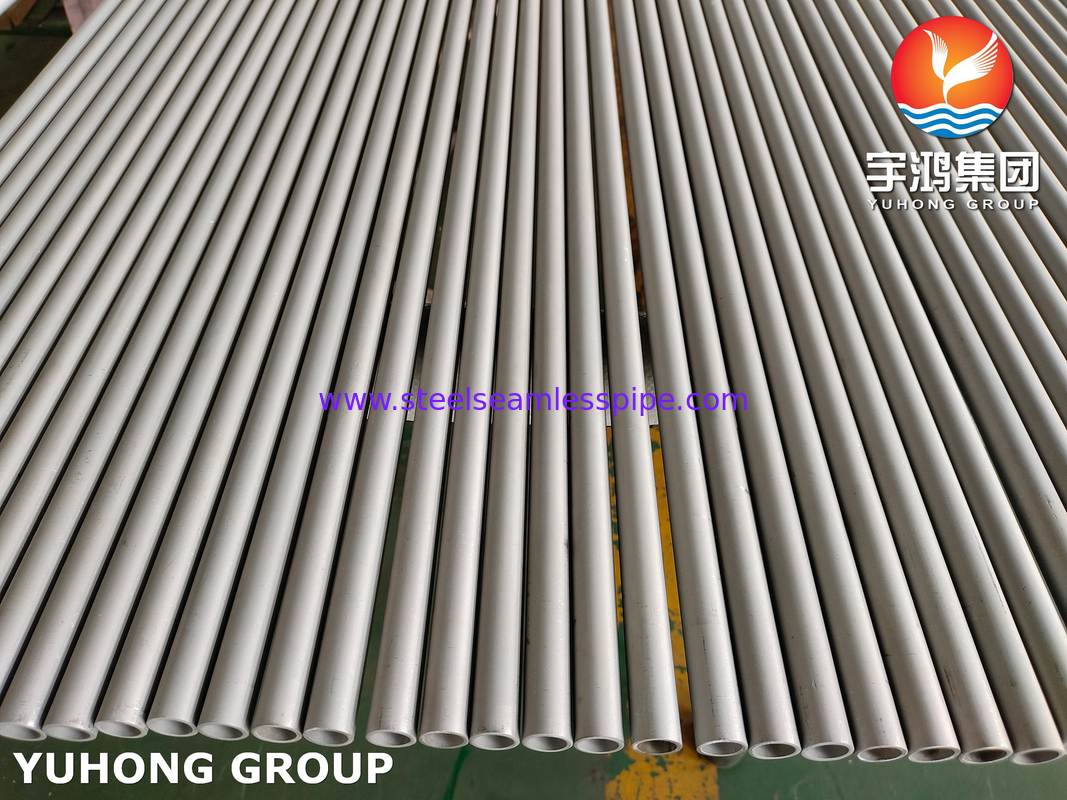

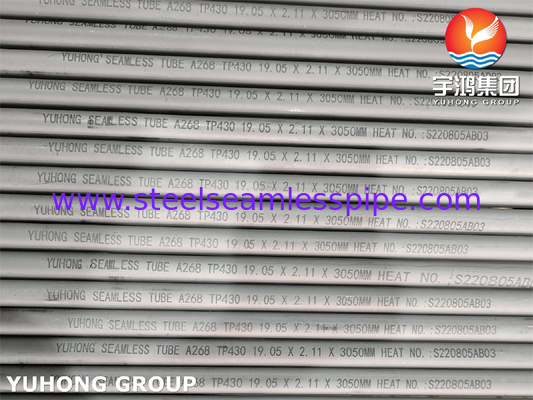

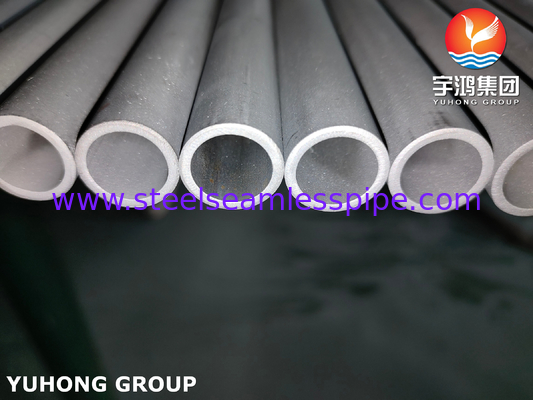

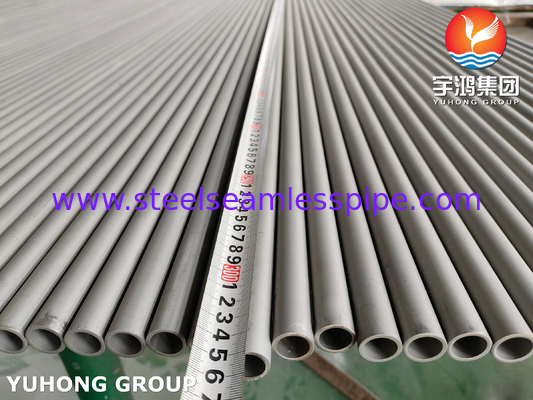

ASTM A268 TP430, UNS S43000 Ferritic and Martensitic Stainless Steel Seamless Tube
ASTM A268 TP430 Stainless Steel is variant of the basic austenitic 18/8 SS304 with added columbium. The addition of columbium stabilizes the steel and eliminates carbide precipitation subsequently causing intergranular corrosion. The steel has good forming and welding qualities and excellent toughness even at cryogenic temperatures.
| Specifications | ASTM A268, ASME SA268 |
| Grades | TP405, TP409, TP410, TP430, TP439, TP444, TP446, TP441 |
| Size | 1/4” to 8” |
| Schedule | SCH 20 - SCH XXS |
| Length | Single Random, Double Random & Cut Length |
| Form | Round, Square, Rectangular, Hydraulic, Etc. |
| Ends | Plain Ends, Beveled Ends, Treaded |
Chemical Composition:
| C | Mn | P | S | Si | Cr | Ni |
| 0.12 | 1 | 0.04 | 0.03 | 1 | 16-18 | 0.75 max |
Mechanical Properties:
| Tensile Strength, Min | Yield Strength, Min | Elongation. Min |
| 60Ksi - 415MPa | 35Ksi - 240MPa | 20% |
Applications:
Petrochemical Industry,
Chemical Industry,
Food Processing Industry,
Marine Industry
Oil and Gas Industry
Water Treatment
Shipment Euqipment
