Yuhong Holding Group Co.,LTD
Place of Origin: | CHINA |
Brand Name: | YUHONG |
Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
Model Number: | ASTM B564 Monel 400 Nickel Alloy Blind Flange |
Minimum Order Quantity: | 1PC |
---|---|
Packaging Details: | PLYWOOD CASE / PALLET |
Delivery Time: | 7 DAYS |
Payment Terms: | L/C,T/T |
Product Name: | Nickel Alloy Flange | Dimension: | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges Etc. |
---|---|---|---|
Standard: | ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings | Material: | Stainless Steel, Carbon Steel, Nickel Alloy |
Size: | 1/2" To 48" | Pressure: | Class150/300/600/9001500/2500 |
Type: | Blind Flange,Threaded Flange,Slip On Flange,socket Weld Flange,weld Neck Flange,LAP Joint Flange | Flange Face: | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
Application: | Petroleum,chemical,etc,fittings And Connection,beer | ||
High Light: | ASTM B564 UNS N04400 Forged Flange, Nickel Alloy Blind Flange |

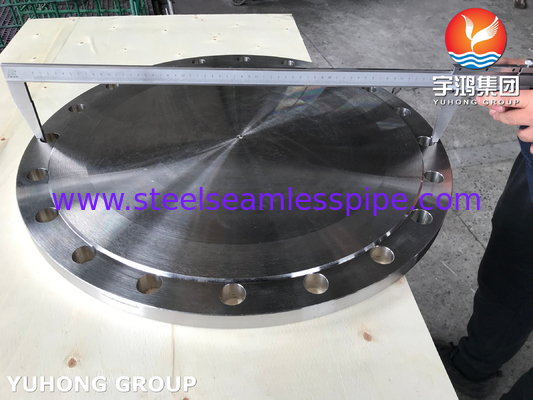

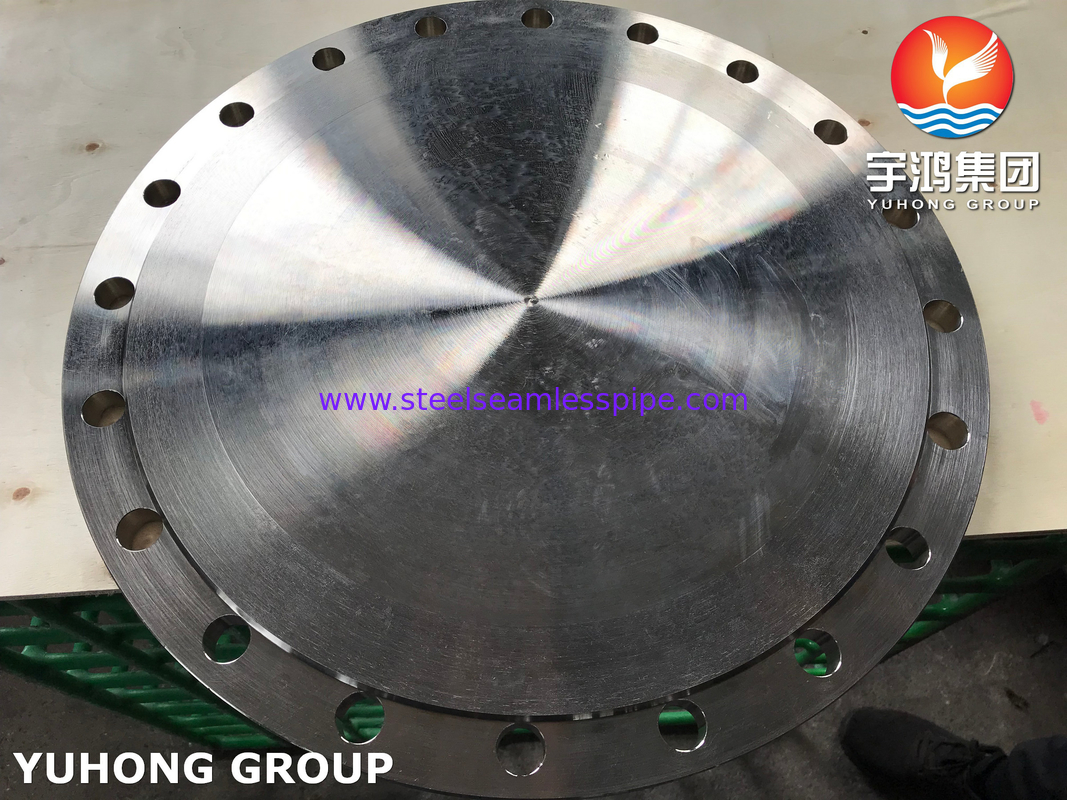

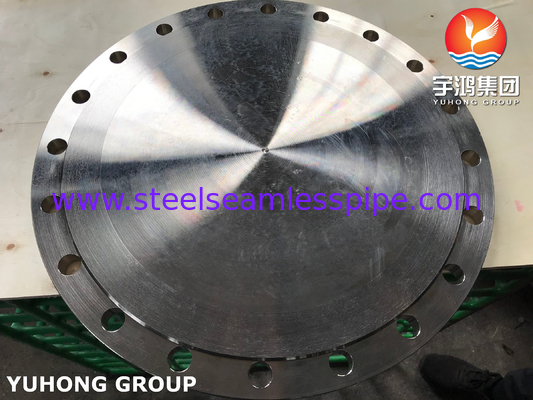

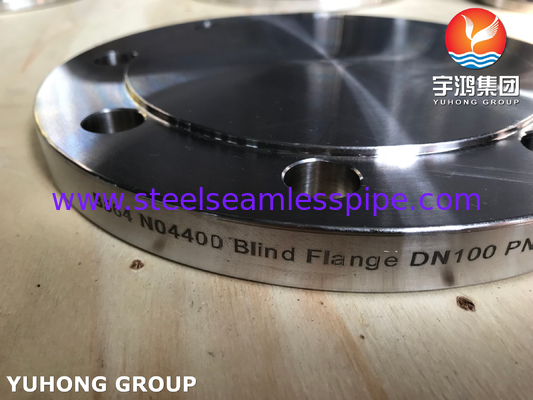

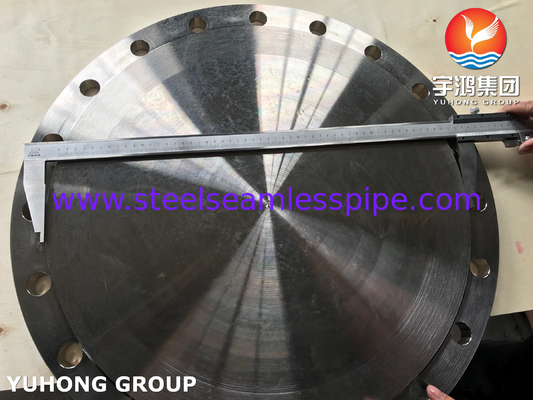

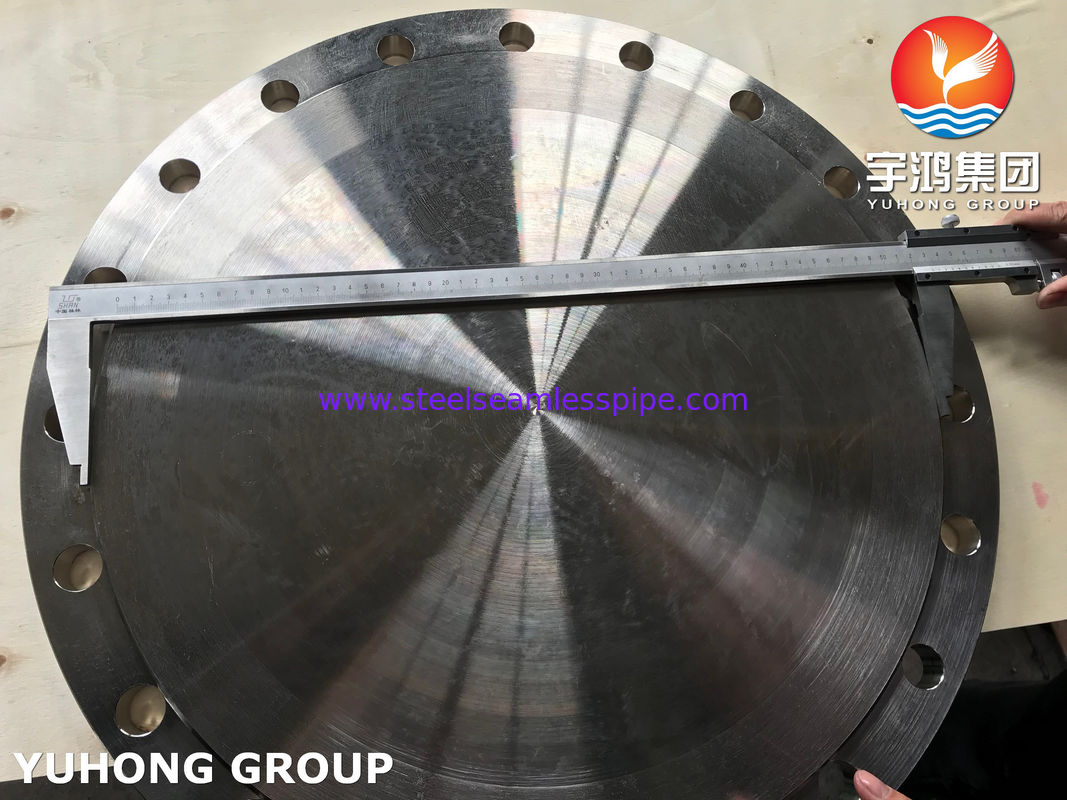

ASTM B 564 UNS N04400 / Monel 400 Nickel Alloy Blind Flange BLRF Flange
The B564 UNS N04400 blind flange is typically manufactured using a forging process, which results in a stronger and more durable product compared to other manufacturing methods.
UNS N04400 (Monel 400), is a nickel-copper alloy that is also known for its excellent mechanical properties, including high strength and toughness, making it a versatile material for a wide range of applications. Monel 400 is one of the few alloys that can withstand hydrofluoric acid, making it an ideal material for use in the chemical processing industry. It is also highly resistant to stress corrosion cracking, making it a popular choice for high-stress applications such as oil and gas production.
Why choose grade monel 400 for flange?
Equivalent Material of ASTM B564 UNS N04400 Nickel Alloy Flange
STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
Monel 400 | N04400 | 2.4360 | NU-30M | NiCu30Fe | NW 4400 | NA 13 | ----- 28-2,5-1,5 |
Chemical Properties of ASTM B564 UNS N04400 Nickel Alloy Flange
Monel 400 | Ni | C | Al | Mn | Si | Fe | Cu | S | Co | Cr |
63.0 min | 0.3 max | 0.50 max | 2.0 max | 0.5 max | 1.0 – 2.5 | 28.0 – 34.0 | 0.02 max | – | – |
Mechanical Characteristics of ASTM B564 UNS N04400 Nickel Alloy Flange
Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
8.8 g/cm3 | 1350 °C (2460 °F) | Psi - 35,000 , MPa - 240 | Psi - 80,000 , MPa - 550 | 40 % |
ASTM B564 UNS N04400 Nickel Alloy Flange
Specifications List |
ASTM/ ASME B564 / SB564 |
---|---|
Standard Flange | BS, DIN, ASME, ANSI, EN |
Size Chart | 1/2″up to 48″ (15 - 1200NB) |
Class / Pressure Rating | PN16, 2500#, PN25, 600#, 150#, 300#, 900#, PN10, 1500#, PN64, PN6, PN40 |
ASTM Standards | DIN, ANSI/ASME B16.48, B16.5, BS4504, BS 10, B 16.47 Series A & B, EN-1092 |
Monel 400 flanges can be easily welded and fabricated, making them a versatile material choice for a wide range of applications.
Monel 400 flanges can be used in conjunction with other Monel 400 components such as pipes and fittings to create a complete corrosion-resistant system.
Nickel Alloy Flanges Types
Application
