Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | WP316L-S |
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case / Pallet |
| Delivery Time: | 5 - 90 Work Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | According to Clients' Requirement |
| Standard: | ASTM A403, ASME SA403 | Material Grade: | WP316L-S |
|---|---|---|---|
| Technics: | Butt Weld | Type: | End Cap,Tee,Elbow,Nipple,Stub End,Reducer,Coulping |
| Size: | Customized Size,1/8"-4 8" | Thickness: | SCH10-XXS(2-60mm) |
| Connection: | Welding,Female,Male | Applications: | Construction,Gas And Oil Pipes,Air,Steam,Petroleum Gas Water |

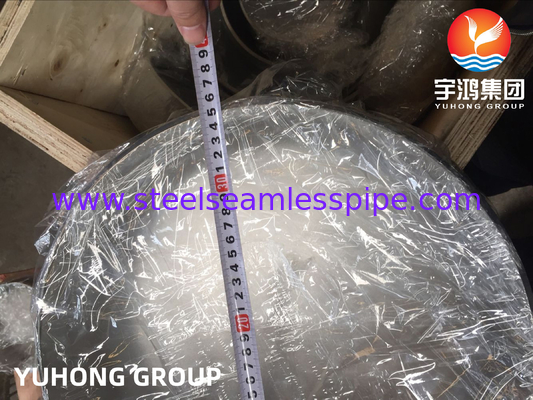

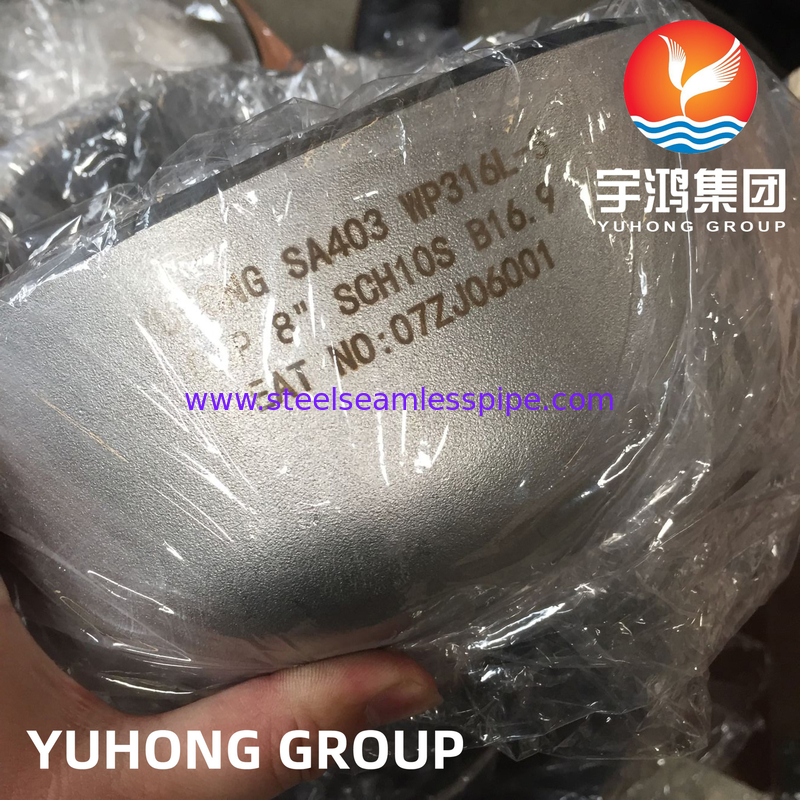

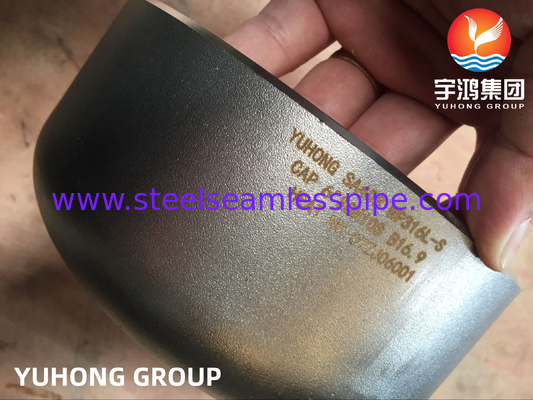

Butt Weld Fittings ASTM A403 WP316L-S Stainless Steel Seamless End Cap B16.9
Our Group are professional in Stainless Steel Butt Weld Fittings, such as elbows, reducers, end caps, tees, stub ends, etc. We can assure high quality of fittings. Stainless steel 316L pipe fittings are made up of a low carbon version of the 316 austenitic stainless steel. The steel has a corrosion resistant that can withstand high corrosion.
Features:
Excellent Hardness
Good Formability
High Tensile Strength
Excellent Fatigue Properties
Excellent Corrosion Resistance Properties
| Specifications | ASTM A403 / ASME SA403 |
| Grade | WP316 / WP316L |
| Size | Seamless: 1/2″ – 10″ Welded: 1/2″ – 48″ |
| Manufacturing Standards |
ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011, DN15-DN1200 BS4504, BS4504, BS1560, BS10 EN: EN10253-1, EN10253-2 |
| Connection | Welding |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Schedule | 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS available with NACE MR 01-75 |
| Type | Elbows, Tees, Crosses, Reducers, Pipe Cap, Stub End, Pipe Bend |

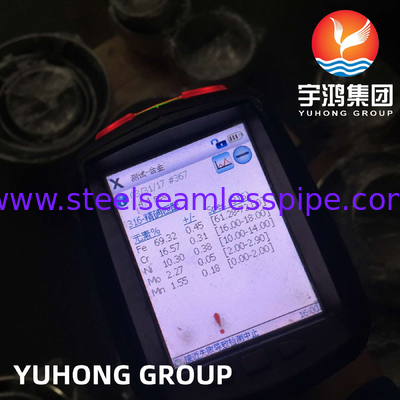

Chemical Composition:
|
Grade |
C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| SS316L | Min | - | - | - | - | - | 16 | 2 | 10 | - |
| Max | 0.03 | 2 | 0.75 | 0.045 | 0.03 | 18 | 3 | 14 | 0.1 | |
Mechanical Properties:
| Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 1400 °C / 2550 °F | 75000Psi - 515MPa | 30000Psi - 205MPa | 35% |
Applications:
Chemical&Petrochemical Industry
Pharmaceutical Industry
Food Industry
Aerospace Industry
Decoration Industry
Oil and Gas Industry
Heat Exchangers&Condensers
Sea Water Equipment
Power Generation
Pulp and Paper Industry
