Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | ASTM B564 Monel400, UNS N04400 |
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case / Pallet |
| Delivery Time: | 5 - 90 Work Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | According to Clients' Requirement |
| Standard: | ASTM B564, ASME SB564 | Material Grade: | Monel400, UNS N04400 |
|---|---|---|---|
| Size: | 1/2" - 48" | Pressure: | Class150/300/600/9001500/2500 |
| Technics: | Froged | Surface Treatment: | Heat Treatment,Galvanized |
| Type: | Threaded Flange,Slip On Flange,Socket Weld Flange,Weld Neck Flange,LAP Joint Flange | Application: | Petroleum,Chemical,Fittings And Connection,Beer,Etc. |

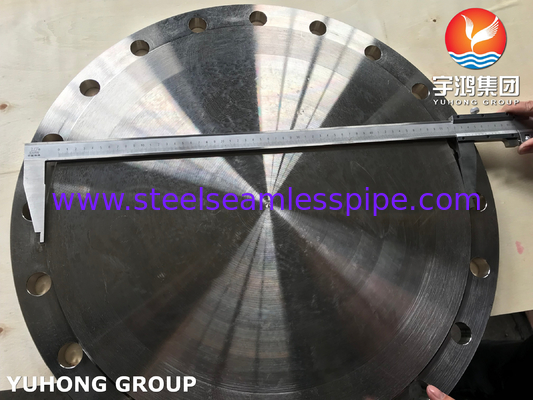

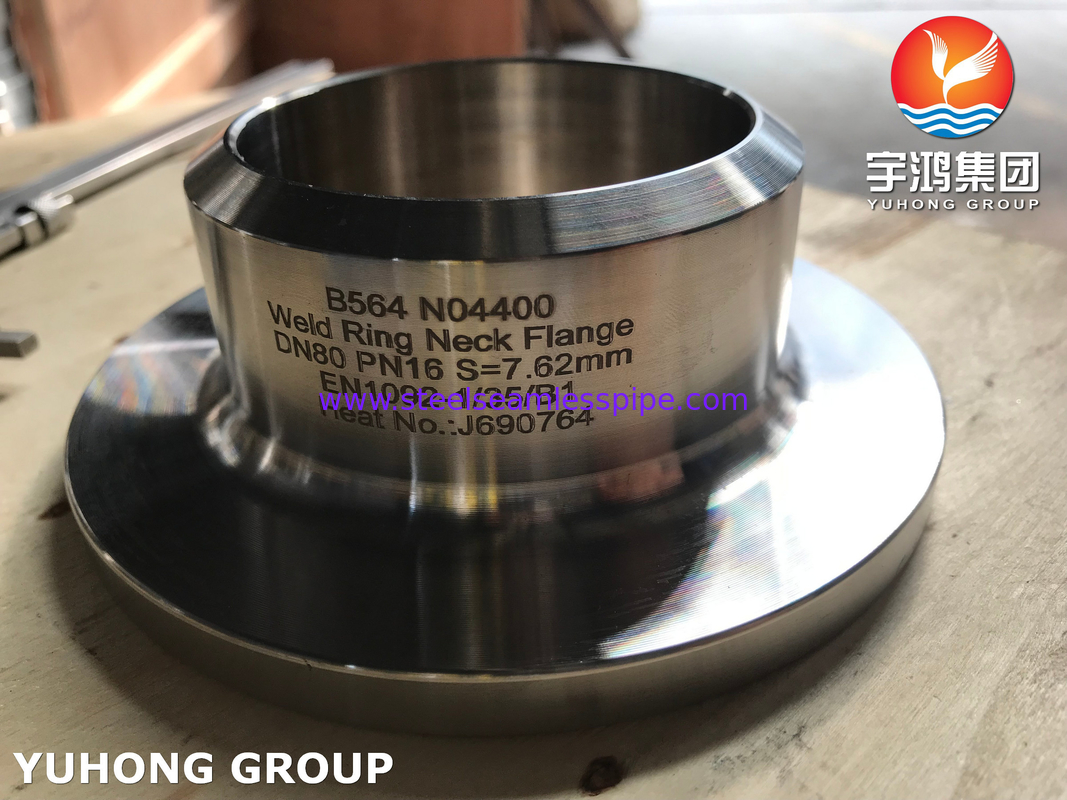

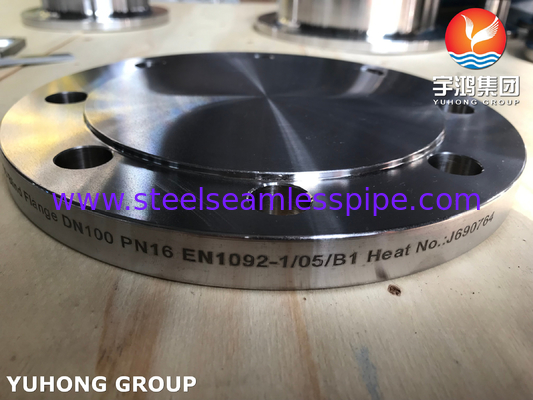

ASTM B564 Monel400, UNS N04400 Nickel Alloy Weld Ring Neck Flange, Blind Flange
Monel400 Nickel Alloy Weld Ring Neck Flange is a type of flange which is an excellent high performance alloy used in high pressure applications. It has high thermal conductivity and good ductility. ASTM B564 UNS N04400 Nickel Alloy Flange is a steel flange that is made from Monel 400, a highly corrosion-resistant alloy. It can withstand extreme temperatures and corrosive environments. The UNS N04400 steel flanges are widely used in various applications like sea water system, marine equipment, chemical industry, and so on.
Specifications:
| Specifications | ASTM B564 / ASME SB564 |
| Size Range | 1/2″ (15 NB) to 48″ (1200NB) |
| Dimensions | ANSI/ ASME B16.5, B16.47 Series A&B, B16.48, BS4504, BS 10, EN1092, DIN |
| Standard | ANSI, AWWA, ASME, BS, DIN, EN, GOST |
| Pressure Class | 150#, 300#, 600#, 900#, 1500#, 2500# |
| Face Type | Raised Face (RF), Ring Type Joint (RTJ), Large Male-Female (LMF), Flat Face (FF), Small Male-Female (SMF), Lap-Joint Face (LJF), etc. |
| Flange Type | Weld Neck Ring Flanges (WNRF), Slip-On Ring Flanges (SORF), Blind Ring Flanges (BLRF), Socket Weld Ring Flanges (SWRF), Lap Joint Ring Flanges (LJRF), Ring Type Joint Flanges (RTJF), Large Diameter Flanges, Orifice Flanges |

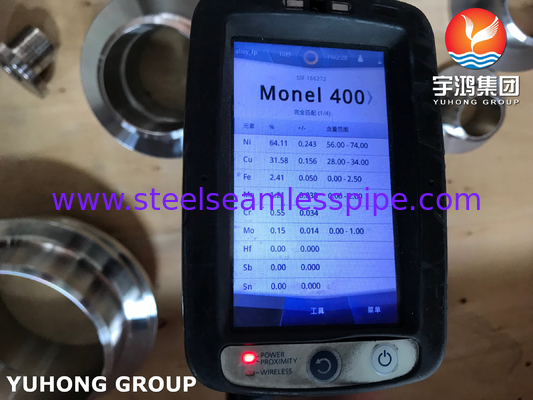

Chemical Composition:
| Iron | ≤2.5 |
| Sulfur | ≤0.024 |
| Nickel | ≥63 |
| Carbon | ≤0.3 |
| Copper | 28-34 |
| Manganese | ≤2 |
| Silicon | ≤0.5 |
Mechanical Properties:
| Density | 8.8 g/cm3 |
| Melting Point | 1350 °C - 2460 °F |
| Tensile Strength | 80000Psi - 550MPa |
| Yield Strength (0.2%Offset) | 35000Psi - 240MPa |
| Elongation | 40 % |
Applications:
Marine Equipments
Sea Water Systems
Chemical Equipments
Aerospace Industries
Musical Instruments
Heat Exchangers
High Pressure Applications
Offshore Industries
Pressure Vessels
