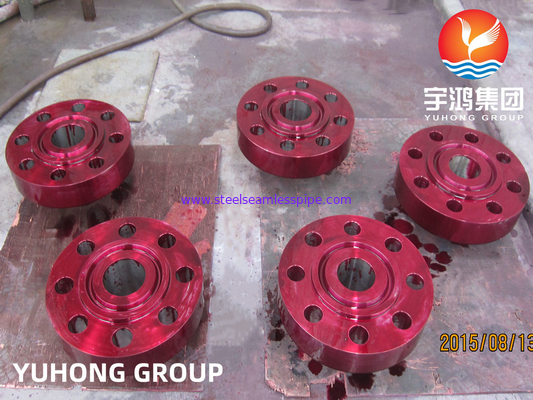

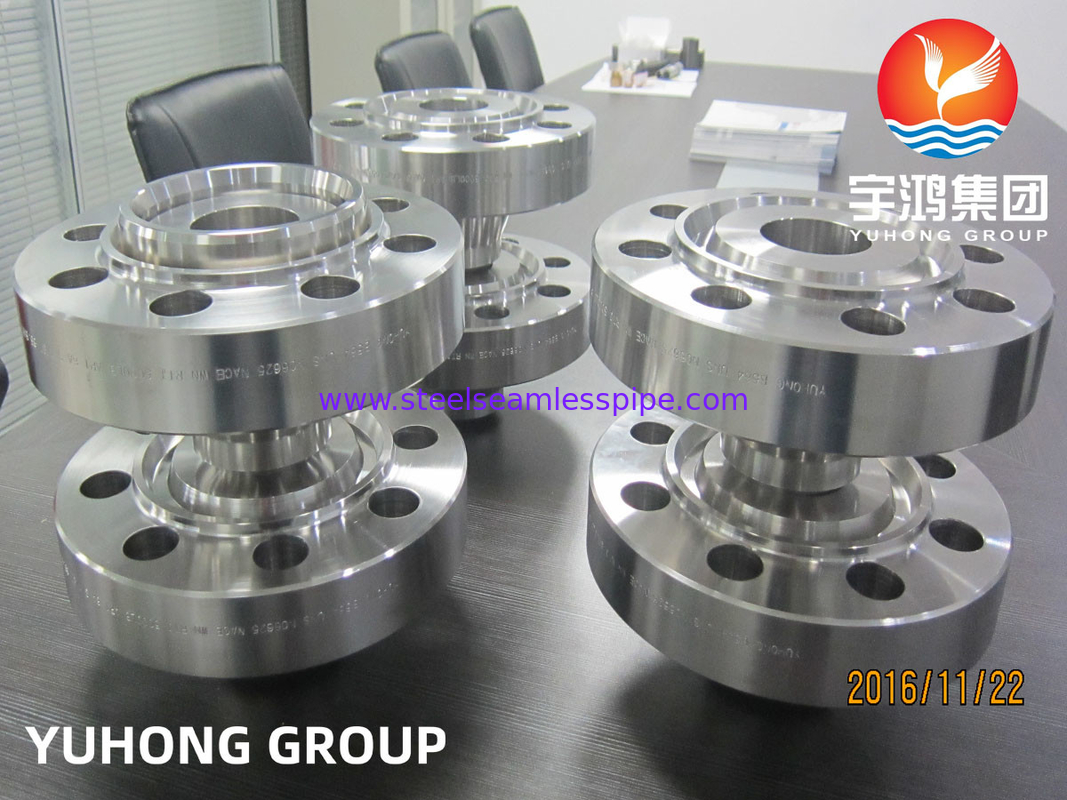

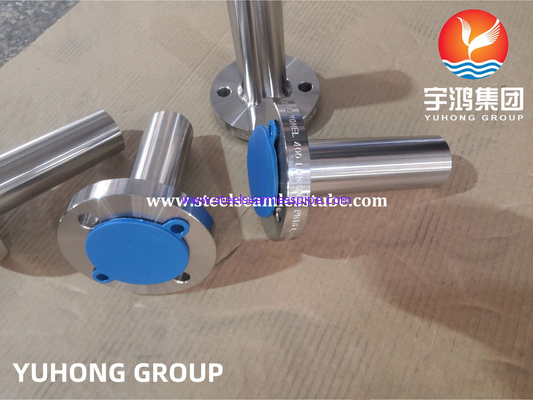

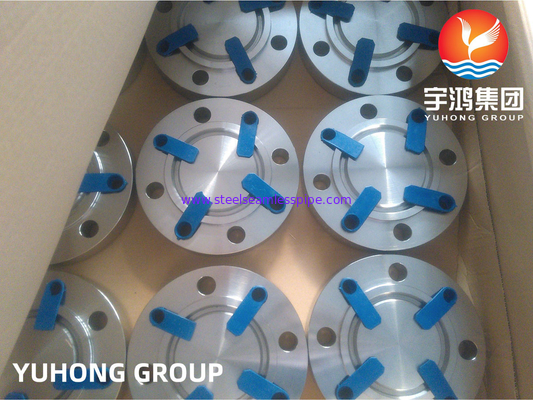

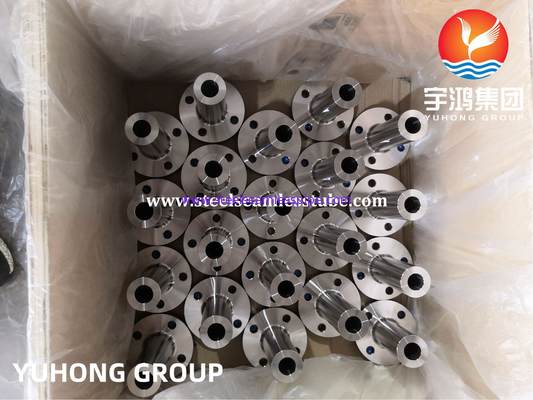

ASTM B564 Monel400 UNS N04400 Nickel Copper Alloy Flange Various Type Available
We are YUHONG GROUP . We supply stainless steel /alloy steel /duplex steel tube/pipe/fitting/falnge.We company established 33 years and we export more than 60 countries now .
Description
Monel 400 alloy (UNS N04400 or MCu-28-1.5-1.8 or Ni68Cu28Fe) is a nickel-based alloy material with good corrosion resistance in seawater, chemical solvents, ammonia sulfur chloride, hydrogen chloride, various acidic media such as sulfuric acid, hydrofluoric acid, hydrochloric acid, phosphoric acid, organic acid, alkaline media, salt and molten salt.
Monel 400 alloy also has good mechanical properties, from low temperature to high temperature wide range of use temperature, with good welding performance and medium and high strength.
ASTM B564 Monel 400 Flange Chemical Composition
|
element
|
content %
|
|
Ni
|
63.0min
|
|
Cu
|
28min~34max
|
|
Fe
|
2.5max
|
|
Mn
|
2.0max
|
|
C
|
0.3max
|
|
Si
|
0.5max
|
|
S
|
0.024max
|
Equivalent material grade of Monel Flanges
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Monel 400 | 2.4360 | N04400 | NW 4400 | NA 13 | МНЖМц 28-2,5-1,5 | NU-30M | NiCu30Fe |
Monel Alloy Flanges Mechanical Characteristics
| Tensile strength, Yield | 240 Mpa |
| Tensile strength, Ultimate | 550 Mpa |
| Elongation at Break | 48% |
All Types of Monel 400 Flanges We Supply:
Application
The Monel 400 is mainly used in chemical and petrochemical industries and Marine development. It can be used to manufacture all kinds of heat exchange equipment, boiler feed water heaters, petroleum and chemical pipelines, containers, towers, tanks, valves, pumps, reactors, shafts, etc.
