| Place of Origin: | CHINA |
| Brand Name: | YUHONG GROUP |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | 253MA |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Bundle /Ply-wooden Case |
| Delivery Time: | Depends on quantity |
| Payment Terms: | T/T, L/C at sight |
| Supply Ability: | 10000 Ton/month |
| Material Grade: | 253MA | Standard: | ASTM A312 |
|---|---|---|---|
| Size: | 1/2" NB TO 18" NB | W.T.: | Sch 10s-sch Xxs |
| Length: | Single Random, Double Random & Cut Length | NDT: | ET HT UT PT |
| Packing: | Ply-wooden Case /Iron Case/ Bundle | Appllication: | EDC/ Fracking / Air Preheater /Oil |

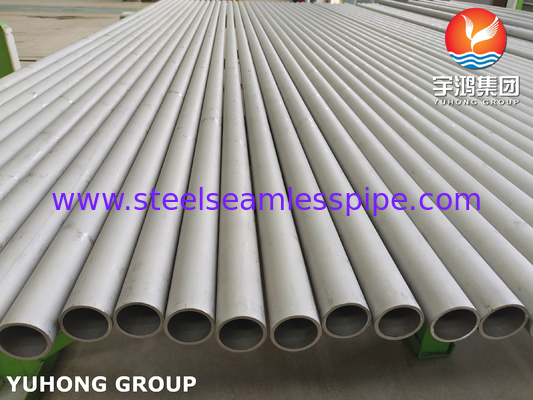

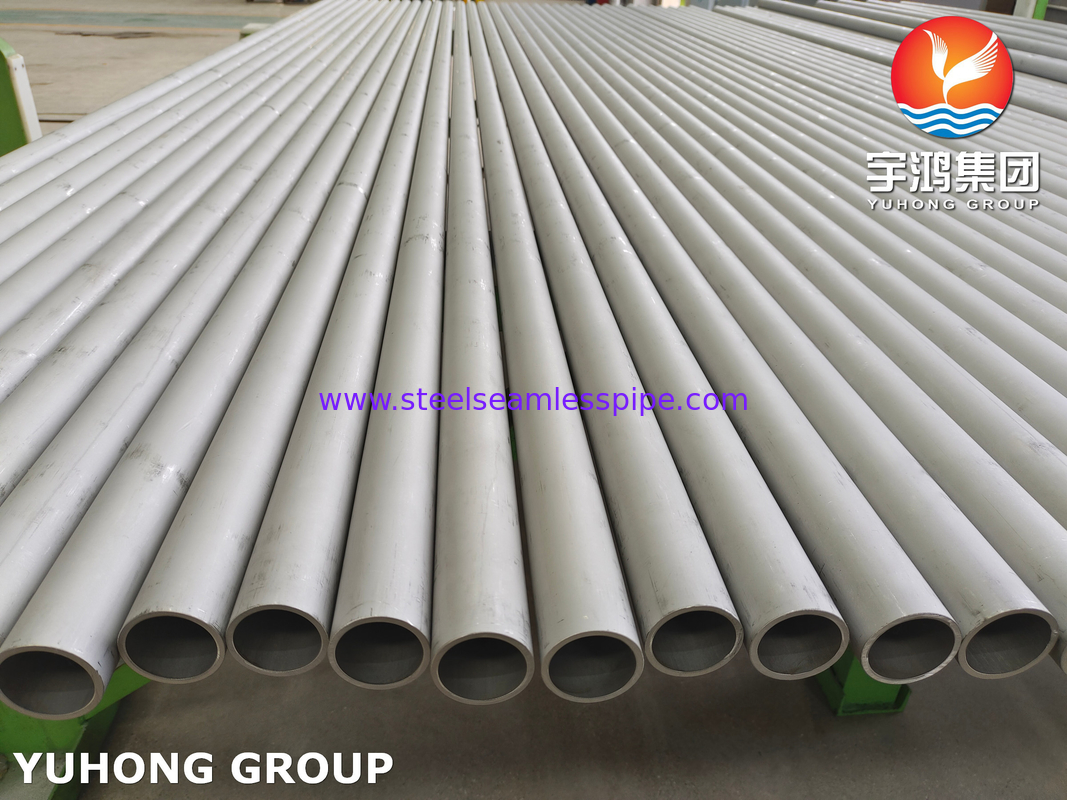

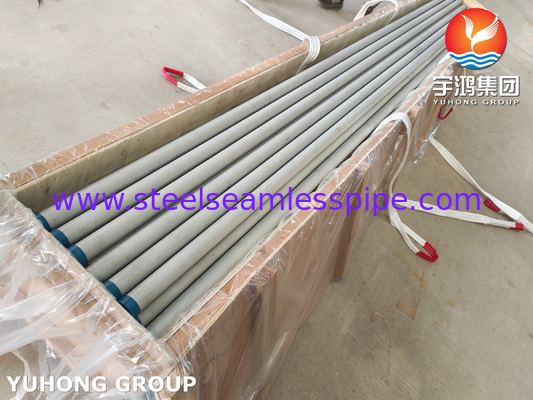

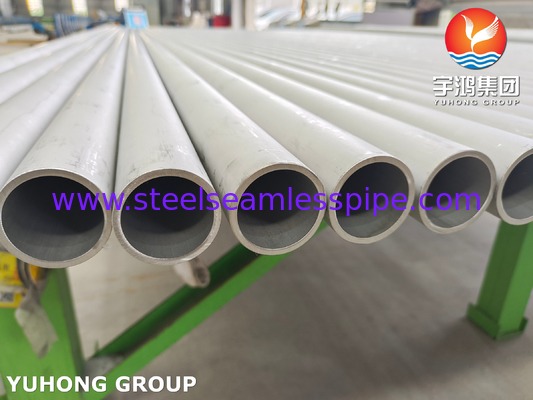

ASTM A312 253MA Stainless Steel Seamless Pipe EDC Fracking Air preheater Oil
Overciew
Alloy 253MA has excellent resistance to oxidation, corrosion and heat. It is able to withstand temperatures up to 1150°C while maintaining high strength and toughness at elevated temperatures. In addition, it has good weldability, machinability and manufacturability. As a result, it is widely used in the manufacture of nickel alloys and stainless steels in high temperature, corrosive and stressful environments.
253MA Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Ni | N | Ce | |
| 253MA | min. max. | 0.05 0.10 | - 0.80 | 1.10 2.00 | - 0.040 | - 0.030 | 20.0 22.0 | 10.0 12.0 | 0.14 0.20 | 0.03 0.08 |
253 MA Mechanical Property
| Grade | TensileStrength(MPa) min | YieldStrength 0.2% Proof (MPa) min |
Elongation (% in 50mm) min | Hardness | |
| RockwellB (HR B) max |
Brinell (HB) max | ||||
| 253MA | 600 | 310 | 40 | 95 | 217 |
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (mm/m/°C) | Thermal Conductivity (W/m.K) | Specific Heat 0-100°C (J/kg.K) |
Electrical Resistivity (nW.m) | |||
| 0-100°C | 0-600°C | 0-1000°C | at 20°C | at 1000°C | |||||
| 253MA | 7800 | 200 | 17.0 | 18.5 | 19.5 | 15.0 | 29.0 | 500 | 850 |
ASTM A312 GRADE 253MA Stainless Steel Tube Application
EDC Fracking
Air preheater
Oil
Heat Exchanger
