Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, CCS, ISO 9001-2008 |
| Model Number: | ASTM A403 WP317L-S |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | PLYWOOD CASE,PALLET |
| Delivery Time: | Depends on quantity |
| Payment Terms: | L/C at sight, T/T |
| Supply Ability: | 1000 pcs per month |
| NAME: | CONCENTRIC REDUCER | STANDARD: | ASTM A403/ASME SA403 |
|---|---|---|---|
| MATERIAL: | WP317L | TYPE: | SEAMLESS/WELDED |
| SIZE: | 1/2" TO 48" | WT: | Sch10s To XXS |
| High Light: | ASTM A403 Steel Pipe Reducer,WP317L-S Concentric Reducer,Buttweld Concentric Reducer |
||

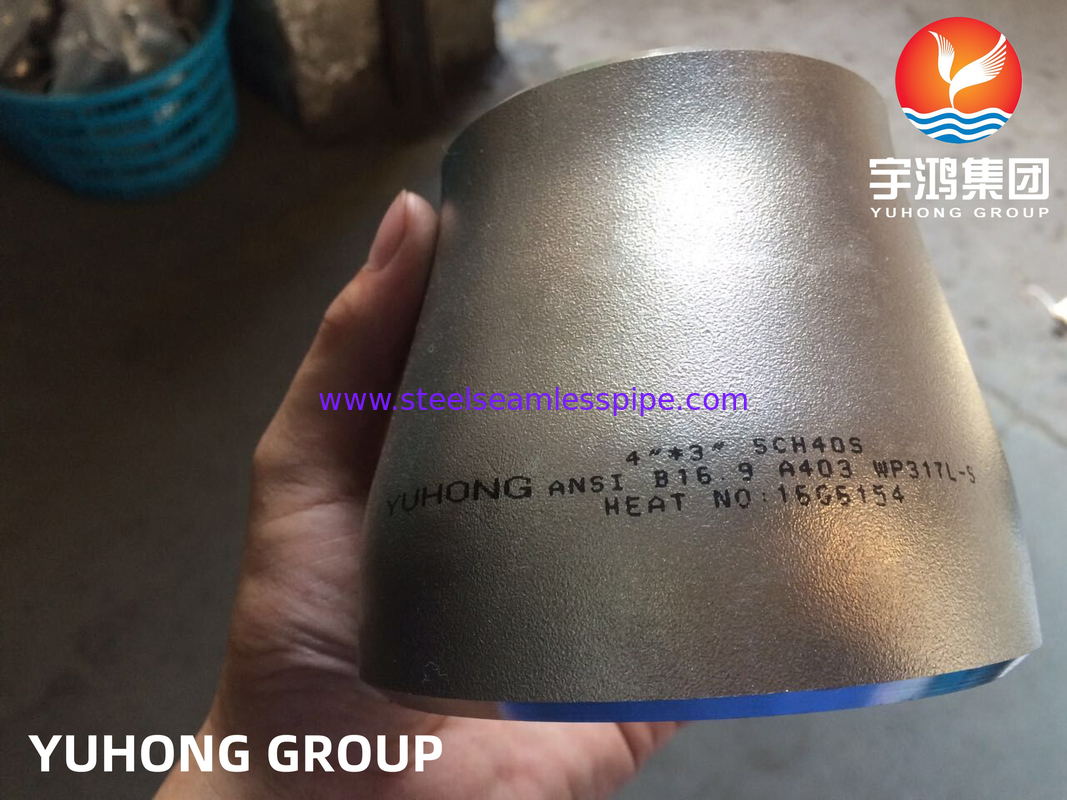

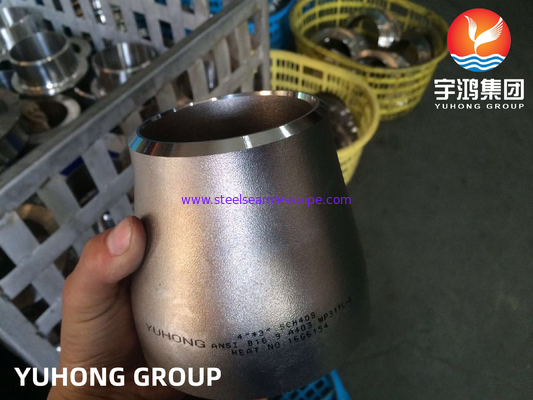

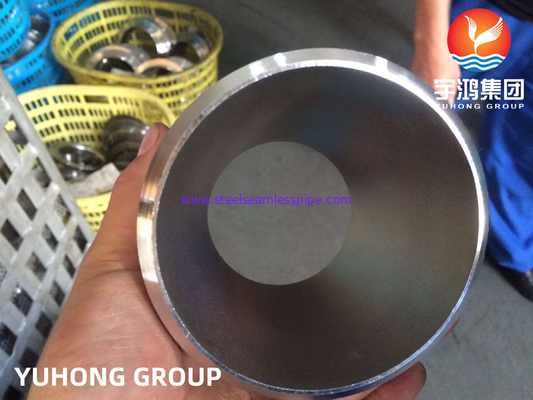

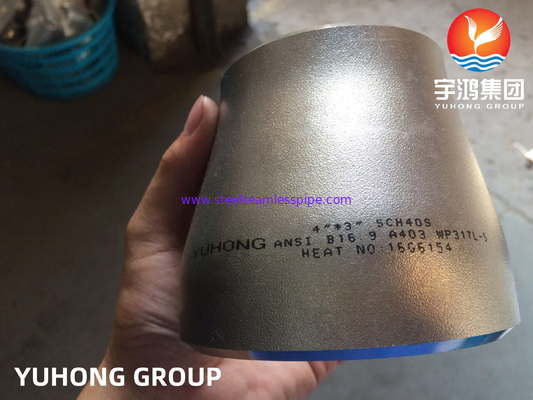

ASTM A403 WP317L-S Concentric Reducer Buttweld Fitting ANSI B16.9
Overview
Stainless Steel 317L Fittings is a low carbon austenitic steel material made piping class. The fittings range from simple couplings to long radius elbows. The 317L Fittings material is made up of chromium, nickel, molybdenum and other elements in trace amounts. The addition of these elements makes the material very much corrosion resistant. They are also resistive to acidic environments. This is also a non-magnetic grade that is produced in an annealed condition. The 317L Pipe Fittings show better corrosion resistance under stressful conditions. They are anticorrosive under high chloride ion rich media such as the sea water and can be used in those media. Sea water applications like the salt water desalinization projects use this material to employ the high corrosion resistance property.
A403 317L Stainless Steel covers the standard for forged austenitic stainless steel fittings for pressure piping applications. The accessory material shall be composed of stainless steel forgings, stainless steel bars, stainless steel plates or seamless or welded stainless steel pipe products. Stainless steel forging or forming operations should be carried out by hammering, pressing, punching, extrusion, upsetting, rolling, bending, welding, machining, or a combination of two or more of these operations.
All ASTM A403 WP 317L stainless steel pipe fittings shall be heat treated. Chemical and product analyses should be performed and should conform to the chemical composition required for carbon, manganese, phosphorus, sulfur, silicon, chromium, molybdenum and titanium.
Chemical Composition
|
Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
Fe |
|
SS 317 |
0.08 max |
2.0 max |
1.0 max |
0.045 max |
0.030 max |
18.00 - 20.00 |
3.00 - 4.00 |
11.00 - 15.00 |
57.845 min |
|
SS 317L |
0.035 max |
2.0 max |
1.0 max |
0.045 max |
0.030 max |
18.00 - 20.00 |
3.00 - 4.00 |
11.00 - 15.00 |
57.89 min |
Mechanical Properities
|
Density |
Melting Point |
Tensile Strength |
Yield Strength (0.2%Offset) |
Elongation |
|
7.9 g/cm3 |
1400 °C (2550 °F) |
Psi – 75000 , MPa – 515 |
Psi – 30000 , MPa – 205 |
35 % |
Equivalent Grades for 317L Stainless Steel Fittings
|
STANDARD |
WERKSTOFF NR. |
UNS |
JIS |
EN |
|
ASTM A403 Gr WP317 |
1.4449 |
S31700 |
SUS 317 |
- |
|
ASTM A403 Grade WP317L |
1.4438 |
S31703 |
SUS 317L |
X2CrNiMo18-15-4 |
Application
Textile machinery
Oil and gas industry
Pulp and paper industry
Power plants
Energy industries
Furniture
Pharmaceutical processing industry
Modern architecture
Home appliances
Water waste projects
Synthetic fiber
Heat exchanger
Fluid piping
Dairy and food processing
