Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | TP316H, UNS S31609 |
| Minimum Order Quantity: | 100 KGS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-Wooden Case /Iron Case/ Bundle With Plastic Cap |
| Delivery Time: | 5 - 90 Work Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | According To Customers' Request |
| Standard: | ASTM A312, ASME SA312 | Material Grade: | TP316H, UNS S31609 |
|---|---|---|---|
| Type: | Seamless,Welded | Outer Diameter: | 6mm-630mm Or Customized |
| Thickness: | 1mm-60mm | Length: | 6 Meters Or Customized |
| Ends: | Bevled End, Plain End, Thread End | Application: | Decoration,Construction,boiler,oil And Gas,electric |
| High Light: | TP316H Stainless Seamless Pipe,UNS S31609 Stainless Steel Seamless Pipe,Stainless Steel Seamless Heat Exchanger Pipe |
||

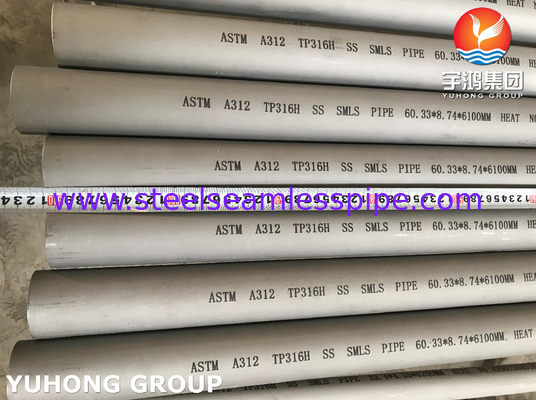

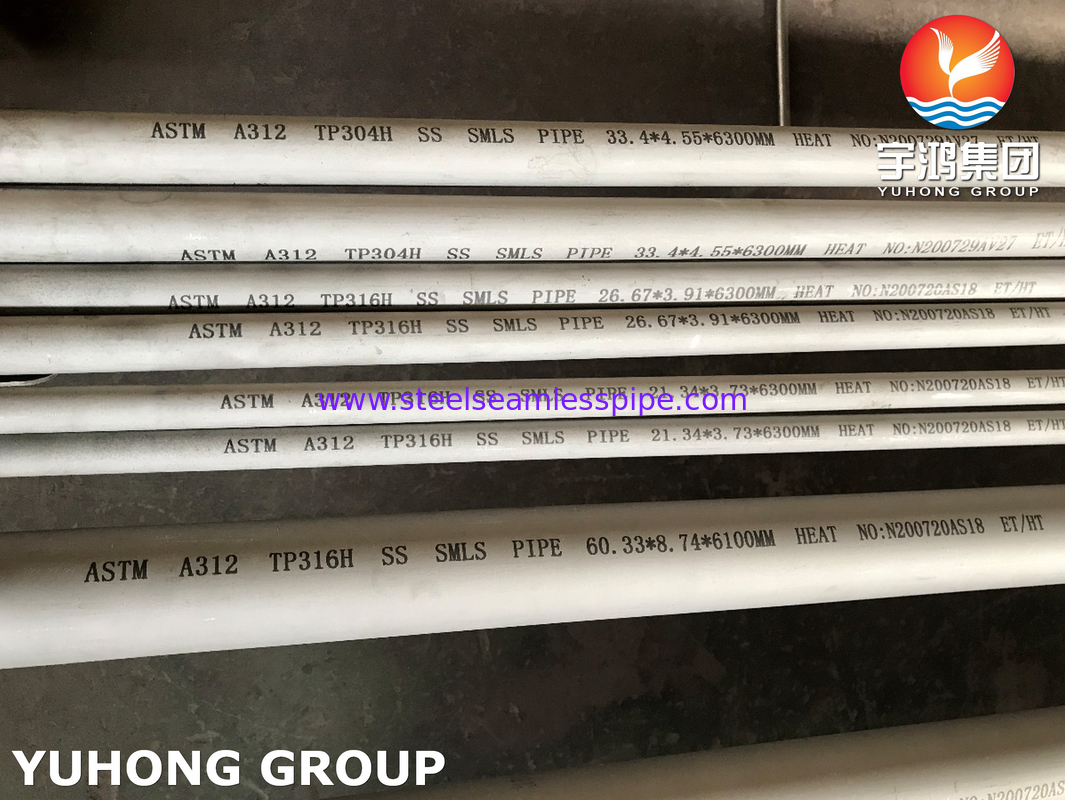

ASTM A312 TP316H (UNS S31609) Stainless Steel Seamless Pipe For Oil And Gas Plant
The ASTM A312 TP316H Stainless Steel Seamless pipe contains a very high carbon and it's used in applications with high temperatures. The Stainless Steel 316H Welded pipe is also used for the same applications but it's different in its finish. The Stainless Steel 316H pipe is made of high-quality material to exhibit corrosion resistance. It is used in the chemical industry for boilers.
| Specifications | ASTM A312, ASME SA312 |
| Sizes | 1/2″ – 48″ |
| Schedule | SCH10 - SCHXXS |
| Type | ERW / Seamless / Fabricated / Welded / LSAW Pipes |
| Specialized in | Large Diameter Size |
| Length | 6M Or As Custom, Double, Single Random & Cut Length. |
| Forms | Round, Square, Rectangular, Hydraulic, Etc. |
| Ends | Plain, Beveled, Treaded End |
Equivalent Grades:
| STANDARD | WERKSTOFF NR. | UNS No |
| SS 316H | 1.4919 | S31609 |
Chemical Composition:
| Grades | Mn | C | Si | S | P | Cr | Ni | Mo | |
| SS 316H | Min | 0.04 | 0.04 | – | – | – | 16 | 10 | 2 |
| Max | 2 | 0.1 | 0.75 | 0.03 | 0.045 | 18 | 14 | 3 |
Mechanical Properties:
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8 g/cm3 | 1400 °C (2550 °F) | 75000Psi - 515Mpa | 30000Psi - 205Mpa | 35 % |
Applications:
Heat Exchangers
Food processing equipment
Kitchen Equipments
Construction
Threaded Fasteners
Chemical Industris
Architectural applications
