SS ASME SA269 / ASTM A269 TP316L Seamless Tube Bright Annealing

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number:	ASTM A269 TP316L

Payment & Shipping Terms:

Minimum Order Quantity:	100KGS
Price:	NEGOTIABLE
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time:	25 days
Payment Terms:	L/C, T/T,
Supply Ability:	500 TONS PER MONTH

Contact Now

All Products

Stainless Steel Seamless Pipe (308)

Stainless Steel Seamless Tube (297)

Duplex Stainless Steel Pipe (132)

Duplex Stainless Steel Tube (33)

Needle Tube (134)

Fin Tube (672)

Heat Exchanger (20)

Heat Exchanger Tube (443)

Heat Exchanger Tube Bundle (40)

Heat Exchanger Tubesheet (117)

Heat Exchanger Baffle (37)

Air Cooler (9)

Pressure Vessel (4)

Stainless Steel Welded Pipe (58)

Stainless Steel Welded Tube (120)

Nickel Alloy Pipe (266)

Nickel Alloy Tube (92)

Copper Alloy Tube (240)

Alloy Steel Tube (204)

Titanium Tube (15)

Bright Annealed Tube (155)

Boiler Tube (151)

Steel Fitting (826)

Steel Flange (615)

Others (401)

Cladding Parts (7)

Detailed Product Description

Grade:	TP304,TP304L,TP304H, TP304N, TP310S,TP316,TP316L,TP316Ti,TP316H, TP317,TP317L, TP321, TP321H,TP347, TP347H,904L…	Standard:	ASTM A269 (SMLS)
NDT:	Ultransonic Test, Eddy Current Test, Hydrostatic Test	Length:	Customer Request
Third Party Inspection:	BV,SGS,ASP	Surface:	Pickled
Highlight:	SS Bright Annealing Tube , ASTM A269 SS Seamless Tube , Bright Annealing Seamless Tube

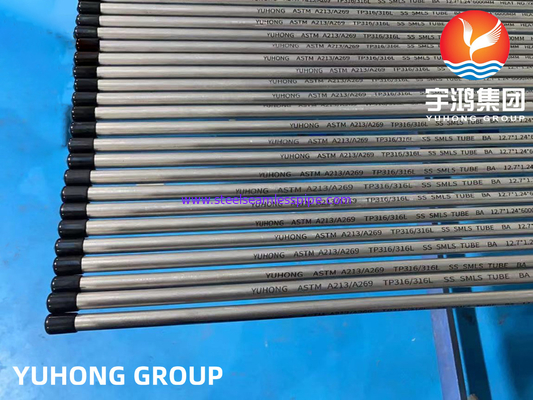

SS ASME SA269 / ASTM A269 TP316L Seamless Tube Bright Annealing

What is A269 TP316L ?

ASTM A269 Tp316L is a grade of seamless and welded austenitic steel with nominal wall thickness that is designed with 316 austenitic stainless steel. The ASTM A269 TP316L Tube is composed of an outstanding content of chromium, nickel, and molybdenum.

Characteristics

ASTM A269 tubing, made of grades TP304 and TP316 as well as their low carbon version TP304L and TP316L, exhibits good corrosion resistance in atmospheric industrial and marine environments as well as some oxidizing chemical environments. Especially, TP316 & TP316L offer enhanced resistance to pitting corrosion in chloride solution. The low carbon version TP304L or TP316L reduces sensitization significantly and provides much better welding performance. The tubing has outstanding impact toughness at low or cryogenic temperatures. It maintains long life span at elevated temperatures and under other severe conditions.

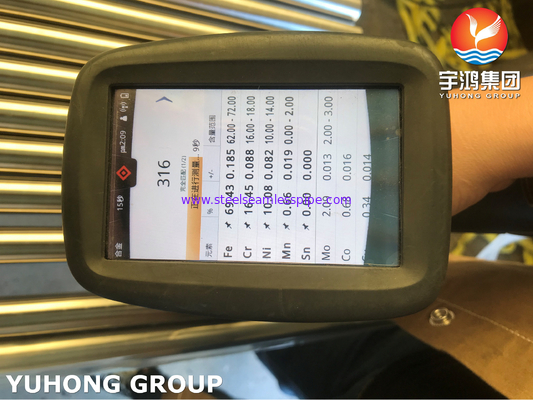

Chemical Composition

Grade		C	Mn	Si	P	S	Cr	Mo	Ni	N
316L	min.	–	–	–	–	–	16.0	2.0-3.0	10.0	–
316L	max.	0.035	2.0	0.75	0.045	0.030	18.0	2.0-3.0	14.0	–

Mechanical Properties

Grade	Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Hardness
				Rockwell B (HR B) max	Brinell (HB) max
316L	485	170	40	95	217

Physical Properties

Grade	Density (kg/m3)	Elastic Modulus (GPa)	Mean Co-eff of Thermal Expansion (m/m/0C)			Thermal Conductivity (W/m.K)		Specific Heat 0-1000C (J/kg.K)	Elec Resistivity (nΩ.m)
			0-1000C	0-3150C	0-5380C	At 1000C	At 5000C
316/L/H	8000	193	15.9	16.2	17.5	16.3	21.5	500	740

Grade Specification Comparison

Grade	UNS No	Old British		Euronorm		Swedish SS	Japanese JIS
Grade	UNS No	BS	En	No	Name	Swedish SS	Japanese JIS
316	S31600	316S31	58H, 58J	1.4401	X5CrNiMo17-12-2	2347	SUS 316
316L	S31603	316S11	-	1.4404	X2CrNiMo17-12-2	2348	SUS 316L
316H	S31609	316S51	-	-	-	-	-

Applications

The ASTM A269 tubing are widely used in instrumentation piping to connect various piping, valves, instruments and apparatuses, or to measuring equipment. They may be used for high purity gas piping, fine chemical engineering, sampling & analysis system, hydraulic line, chemical and petrochemical process control, coal processing, as well as automotive engineering. Especially, grades TP304, TP304L, TP316 and TP316L of ASTM A269 are listed and endorsed by ASME B31.3 – process piping.
