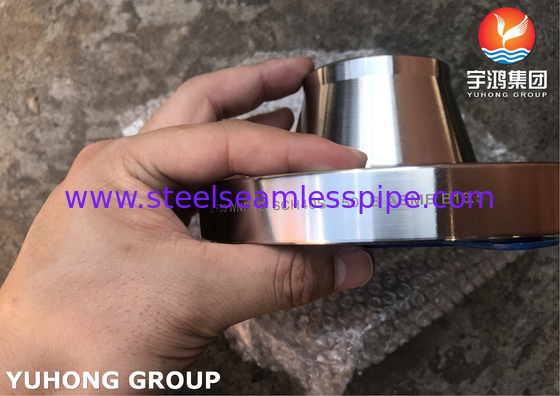

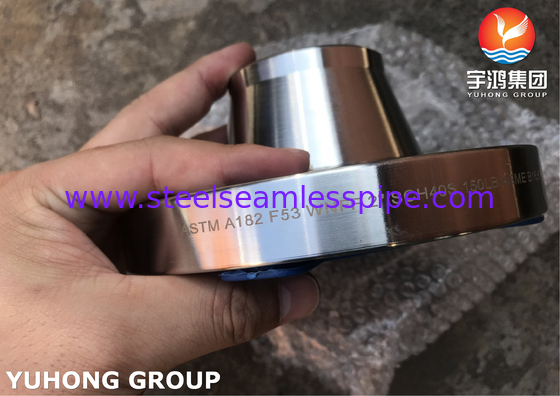

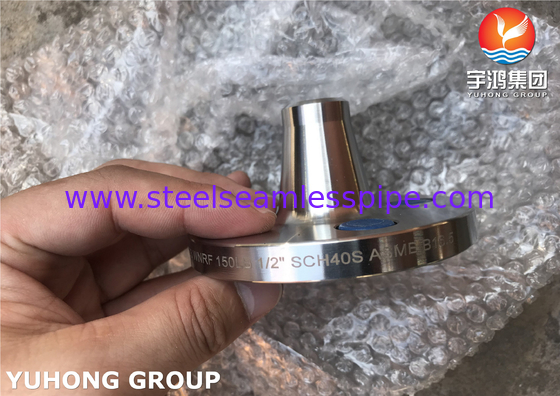

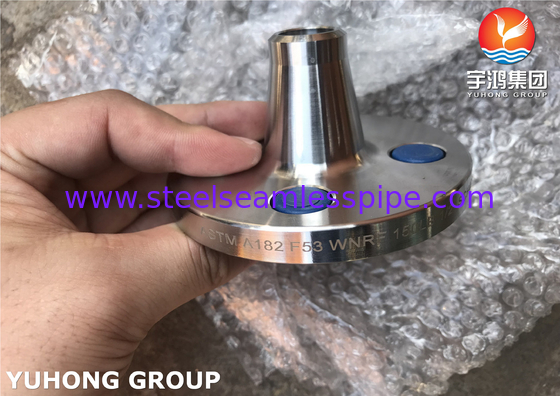

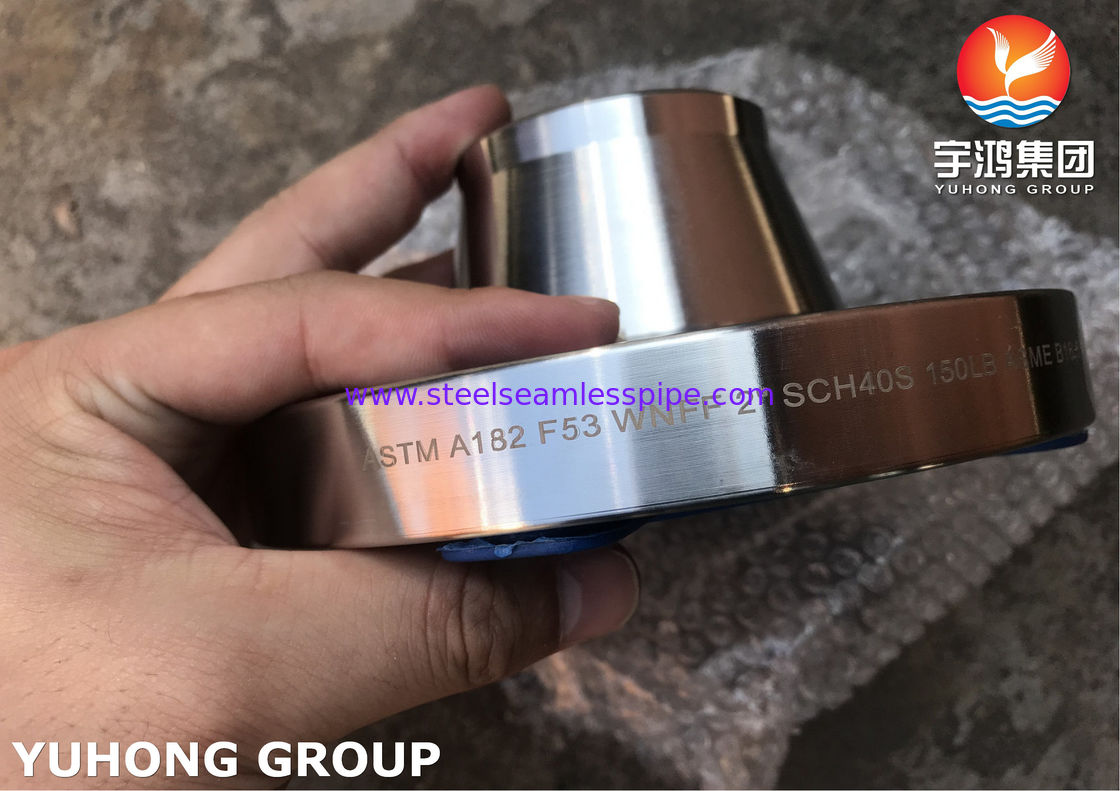

Super Duplex Steel Flanges ASTM A182 F53, UNS S32750 Weld Neck Flange, RF, FF, B16.5

Super Duplex Steel Flanges ASTM A182 F53, UNS S32750 Weld Neck Flange, RF, FF, B16.5

  • Super Duplex Steel Flanges ASTM A182 F53, UNS S32750 Weld Neck Flange, RF, FF, B16.5
  • Super Duplex Steel Flanges ASTM A182 F53, UNS S32750 Weld Neck Flange, RF, FF, B16.5
  • Super Duplex Steel Flanges ASTM A182 F53, UNS S32750 Weld Neck Flange, RF, FF, B16.5
  • Super Duplex Steel Flanges ASTM A182 F53, UNS S32750 Weld Neck Flange, RF, FF, B16.5
Super Duplex Steel Flanges ASTM A182 F53, UNS S32750 Weld Neck Flange, RF, FF, B16.5
Product Details:
Place of Origin: China
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Model Number: F53, UNS S32750
Payment & Shipping Terms:
Minimum Order Quantity: 3 Pieces
Price: Negotiable
Packaging Details: Ply-wooden Case / Pallet
Delivery Time: 5 - 60 Work Days
Payment Terms: T/T, L/C
Supply Ability: According To Customers' Request
Contact Now
All Products
Stainless Steel Seamless Pipe (277)
Stainless Steel Seamless Tube (269)
Duplex Stainless Steel Pipe (128)
Duplex Stainless Steel Tube (27)
Needle Tube (86)
Fin Tube (596)
Heat Exchanger (10)
Heat Exchanger Tube (419)
Heat Exchanger Tube Bundle (37)
Heat Exchanger Tubesheet (117)
Heat Exchanger Baffle (35)
Air Cooler (7)
Pressure Vessel (2)
Stainless Steel Welded Pipe (57)
Stainless Steel Welded Tube (113)
Nickel Alloy Pipe (258)
Nickel Alloy Tube (75)
Copper Alloy Tube (210)
Alloy Steel Tube (173)
Titanium Tube (9)
Bright Annealed Tube (153)
Boiler Tube (138)
Steel Fitting (784)
Steel Flange (574)
Others (384)
Detailed Product Description
Standard: ASTM A182, ASME SA182 Material Grade: UNS S32750, F53
Size: 1/2"-48" Pressure: Class150/300/600/9001500/2500
Type: Threaded Flange,Slip On Flange,socket Weld Flange,weld Neck Flange,LAP Joint Flange Technics: Froged,Advanced
Surface Treatment: Heat Treatment,Galvanized,customize,pickeling Application: Water Treatment, Desalination,Petroleum,chemical,fittings And Connection,beer
Highlight:

Forged Super Duplex Steel Flanges

,

Super Duplex Steel FF Flange

,

Weld Neck RF Flange B16.5

Super Duplex Steel Flanges ASTM A182 F53, UNS S32750 Weld Neck Flange, RF, FF, B16.5



ASTM A182 F53(UNS S32750) Super Duplex Steel Flanges are made from a super duplex stainless steel which has 24% chromium, 3% molybdenum, 6% nickel and carbon and so on. ASTM A182 F53 Super Duplex Stainless Steel Weld Neck Flange is widely used for high temperature and high pressure applications. F53 has excellent resistance to pitting and crevice corrosion resistance. Thus ASTM A182 F53 super dplex stainless steel is used primarily in highly corrosive conditions.


Specifications:

Specifications ASTM A182, ASME SA182
Grades F53 / UNS S32750
Standards BS, ANSI/ ASME B16.5, B16.47 Series A & B, B16.48, BS4504, EN-1092, BS10, ANSI, ASME, DIN, EN, GOST
Class Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS
Size Range 1/2" To 48"
Production Technique Forged, Heat treated and machined
Connect Type/ Flange Face Type Small Tongue, Raised Face (RF), Ring Type Joint (RTJ), Large Male-Female (LMF), Small Male-Female (SMF), Lap-Joint Face (LJF), Flat Face (FF), Large Tongue & Groove


Super Duplex Steel Flanges ASTM A182 F53, UNS S32750 Weld Neck Flange, RF, FF, B16.5 0


Chemical Compostion:

C Mn Si P S Cr Mo Ni N Fe
0.03 max 1.2 max 0.8 max 0.035 max 0.02 max 24 – 26 3 – 5 6 – 8 0.24 – 0.32 Bal.



Mechanical Properties:

Tensile Strength, Min Yield Strength 0.2%, Min Elongation, Min. Hardness
116 Ksi 80 Ksi 15% 310



Applications:

Water Treatment

Seawater Desalination

Heat Exchanger & Boiler

Oil & Gas Pipeline

Petrochemical Industry

Pharmaceutical Industry

Food Processing Industry

Water Treatment System

Onshore & Offshore Platform

Ship building Equipment

Paper And Pulp Plant

Super Duplex Steel Flanges ASTM A182 F53, UNS S32750 Weld Neck Flange, RF, FF, B16.5 1

Tag:

forged steel flanges,

carbon steel flanges,

stainless steel flanges
