Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM B151 C70600 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 7DAYS |
| Supply Ability: | 1000Tons/Month |
| Payment Terms: | T/T, L/C | Standard: | ASTM B151 |
|---|---|---|---|
| Grade: | C70600 | Technics: | Forged |
| Size: | Customized | Type: | Elbow,Nipple,Pipe Threaded,Reducer,tee |
| High Light: | Forged Threaded Steel Pipe Fittings,Copper Nickel Threaded Pipe Fitting,Copper Nickel Pipe Fitting ASTM B151 |
||

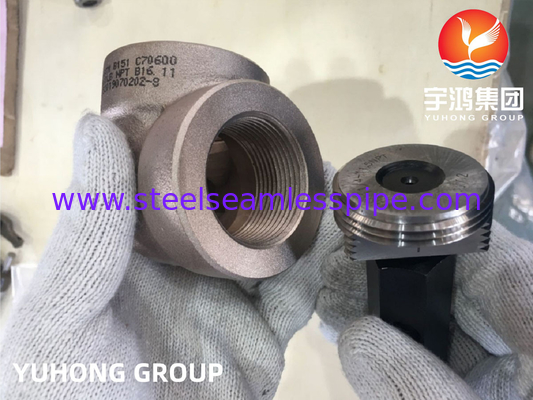

ASTM B151 C70600 Copper Nickel Forged Threaded Pipe Fitting B16.11
C70600 is a common copper alloy composed of copper and nickel. This alloy has excellent corrosion resistance and high-temperature strength, making it widely used in fields such as shipbuilding, marine engineering, chemical equipment, petroleum and natural gas industries.
C70600 has excellent corrosion resistance and can resist the erosion of many corrosive media, such as seawater, hydrogen sulfide, chlorides, and various organic acids. In addition, the alloy also has good heat resistance and wear resistance, and can operate stably for a long time under high temperature and high pressure. It also has good weldability and machinability, and can carry out various processing processes, such as casting, forging and cold and Hot working.
C70600 is commonly used in the manufacturing of marine engineering equipment, such as seawater coolers, boiler tubes, steam generators, and subsea pipelines. Due to its excellent corrosion resistance and high-temperature strength, this alloy can adapt to the harsh conditions of marine environments. In addition, C70600 is widely used in the petroleum and natural gas industries, such as oil well casings, plugs, valves, and pipelines.
It should be noted that C70600 is prone to corrosion in some strong acid and alkali media, so it is necessary to strictly control the chemical composition of the medium during use. In addition, due to the high nickel content of the alloy, the cost is relatively high. Fine material control and production processes are required during the manufacturing process to ensure the quality and performance of the alloy.
Overall, C70600 is a copper alloy widely used in marine engineering and the oil and gas industry, with excellent corrosion resistance and high-temperature strength. As long as attention is paid to some details during use, it can bring long-term stable contributions to these industries.
Chemical Composition Of C70600
| Element | Content (%) |
|---|---|
| Cu | 88.7 |
| Fe | 1.3 |
| Ni | 10.0 |
ASTM B151 C70600 COPPER NICKEL PIPE FITTING SPECIFICATION
| Standard Specification | ASTM B151 C70600 COPPER NICKEL PIPE FITTING |
| Thickness |
View Our Thickness: Schedule 5S, SCH10, SCH20, SCH10, SCH20, SCH30, SCHTD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160. |
| Application |
Water Pipeline Industry Nuclear Power Plant Natural Gas Industry Fabrication Industry Chemical Industry Oil And Gas Industry |
| Coating Fitting Faces |
Cold and Hot Dip Galvanized, Zinc Plated, Yellow Transparent, Oil Black Paint, Anti-rust Paint |
| Standard | JIS B2312 Fittings, MSS-SP-43 Type b Fittings , JIS B2313 Fittings , ANSI B16.9 Fittings, MSS-SP-43 Type A Fittings, MSS-SP-43 Type B Fittings , ANSI B16.28 Fittings |
| Dimensions Class | 2000#, 3000#, 6000#, 9000# |
| Fitting Machining Equipment | Pushing Machine, Bending machine, Press machine, electric bevelling machine, Sand-blasting machine etc |
| Rating Pressure | Pressure Rating Of: 300 LBS Fittings, 600 LBS Fittings, 900 LBS Fittings |
| Check Sizes | (SMLS UPTO 24”) 1/2” TO 36” (Buttweld 8” TO 36” ) |
Applications:
1.Chemicals & Fertilizers Indutries
2.Sugar Mils
3.Cement Industries
4.Ship Building
5.Paper Industries
6.Oil & Gas
7.Petrochemicals, etc.
