Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, BV, LR, DNV-GL, KR, CCS , TS, GOST, CCS, TUV, PED |
| Model Number: | ASTM A403 |
| Minimum Order Quantity: | 5 PC |
|---|---|
| Price: | 1-100000 USD |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 5-50 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 tons/month |
| Product: | Pipe Fittings- Elbows | Material: | Stainless Steel |
|---|---|---|---|
| Standard: | ASTM A403 | Grade: | WP304-S |
| Type: | Buttweld Seamless | Packaging: | PLY-WOODEN CASE OR PALLET |
| High Light: | Codos Stainless Steel Elbows,WP304-S Buttweld Elbows,ASTM A403 Buttweld Elbows |
||

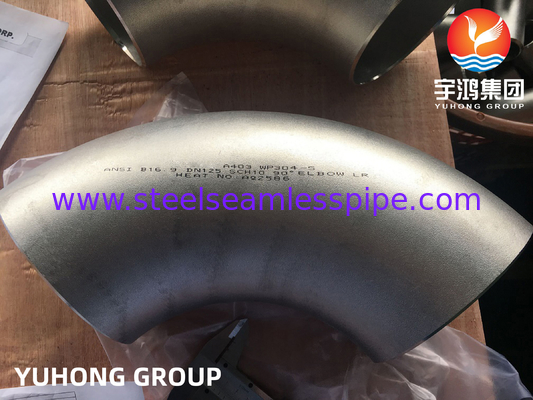

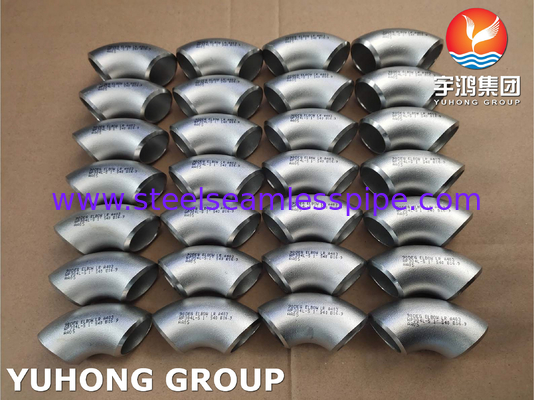

ASTM A403 WP304-S Stainless Steel Buttweld Elbows Codos
YUHONG produce and supplies ASTM 403 WP304 Seamless Stainless Steel Buttweld Elbows with high quality and we sell these pipe fittings in more than 70 countries.
ASTM A403 This specification covers wrought stainless steel fittings for pressure piping applications.
The advantages of WP304-S Stainless Steel make it a preferred choice for many industrial and commercial applications, where corrosion resistance, high temperature resistance, durability, hygiene, aesthetics, and versatility are essential requirements.
1.WP304-S Stainless Steel has excellent resistance to corrosion, making it suitable for use in various environments.
2.WP304-S Stainless Steel can withstand high temperatures without losing its strength and integrity. It is suitable for use in applications that involve elevated temperatures, such as in the manufacturing of heat exchangers and boilers.
3.WP304-S Stainless Steel is known for its durability and long-term performance.
4.WP304-S Stainless Steel is easy to clean and maintain, making it a popular choice for applications in the food and pharmaceutical industries.
5.Stainless Steel is a versatile material that can be fabricated into various shapes and forms.
Specification Of ASTM A403 Stainless steel Elbow
| Standard | ASTM A403 |
| Grades we can offer | WP304/304L/304H,WP316/316L/316H,WP317/317L,WP321/321H |
| Pipe Fittings Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10,etc |

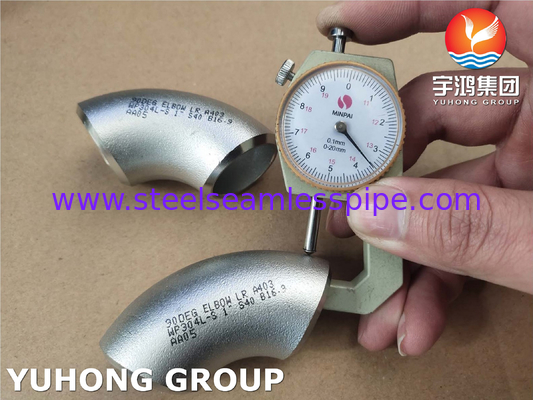

| Fittings Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| fittings Types |
|
| Fitting Classes for WP Grades |
|
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or as required |
| Size Range | 1/2" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) |
| Elbows | Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D . |
| Fittings Manufacturing process | Push, Press, Forge, Cast, etc. |
| Buttweld Pipe Fittings Test Certificates | EN 10204/3.1B,Raw Materials Certificate,100% Radiography Test Report Third Party Inspection Report, etc |

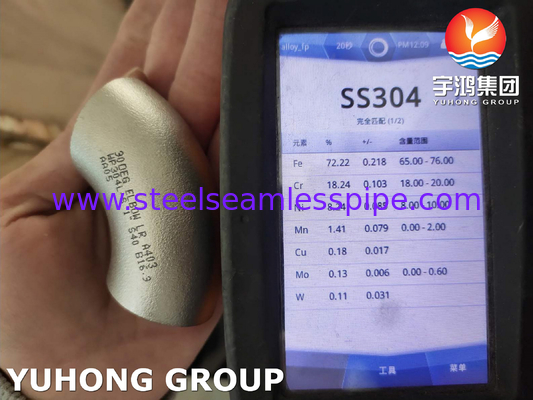

Chemical Composition % (Maximum, unless otherwise indicated)
| Grade | C | Mn | P | S | Si | Ni | Cr |
| WP304 | 0.08 | 2 | 0.045 | 0.03 | 1 | 8-11 | 18-20 |
Tensile Requirements
| Grade | Yield Strength min kis(MPa) | Tensile Strength min kis(MPa) | Elongation Requirements |
| WP304 | 30(205) | 75(515) | Longitudinal-28,Transverse-20 |
Application
1.Oil and gas industry
2.Pulp and paper industry
3.Petroleum and Chemical
4.Power plants
5.Energy industries
6.Water waste projects
7.Fluid piping,etc.
