Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ISO9001-2008, API 5L, API 5CT |
| Model Number: | ASTM A312/ASME SA312 |
| Minimum Order Quantity: | 20PC |
|---|---|
| Price: | 1-150000 USD |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle With Plastic Cap |
| Delivery Time: | 5-65 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1500tons/month |
| Materialrd: | Austenitic Stainless Steel | Product: | Seamless Pipes |
|---|---|---|---|
| Standard: | ASTM A312/ASME SA312 | Grade: | TP310H / TP310S |
| Application: | Heat Exchanger / Boiler /Superheater Pipe,etc | Length: | Or As Required |
| Certificate: | ISO9001-2008, API 5L, API 5CT | Packing Details: | Ply-wooden Case /Iron Case/ Bundle With Plastic Cap |
| High Light: | TP310S Austenitic Stainless Steel Pipes,SMLS Austenitic Stainless Steel Pipes,Austenitic Stainless Steel Seamless Tubing |
||

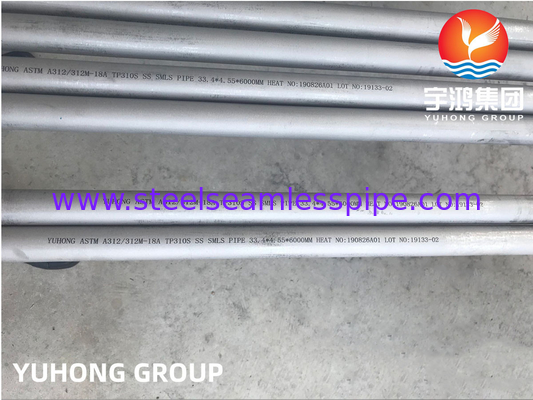

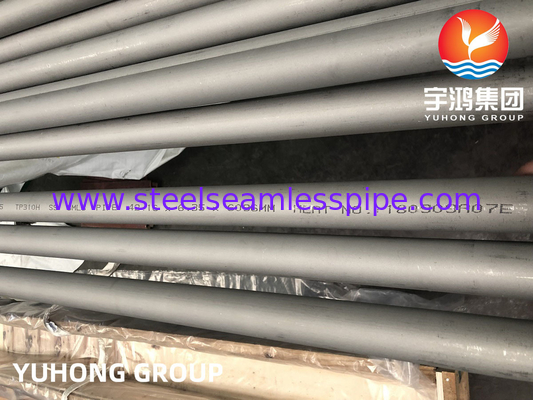

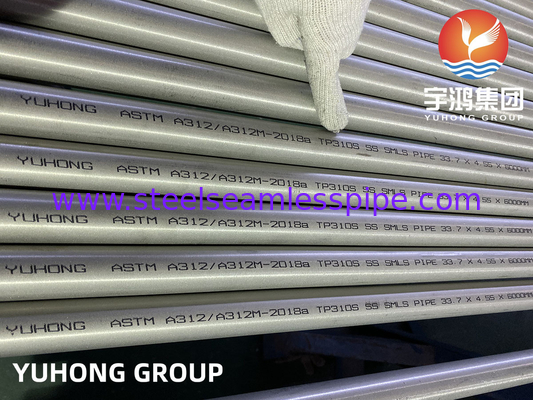

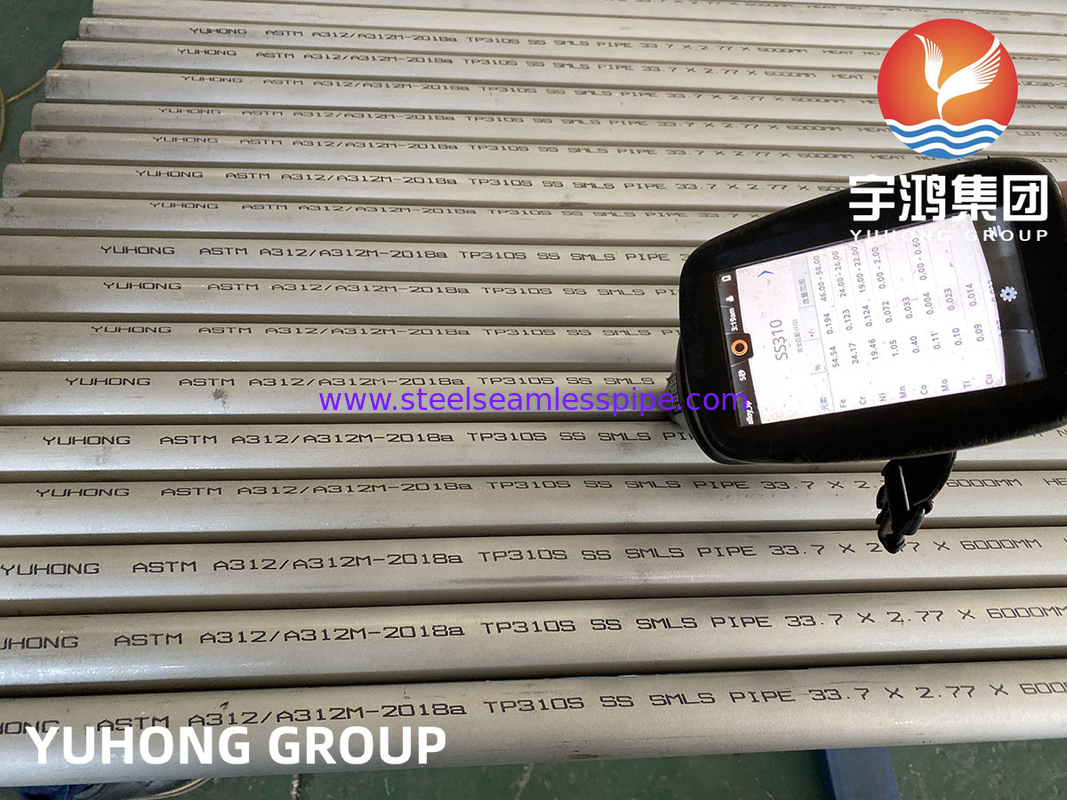

ASTM A312 TP310H ,TP310S Seamless Austenitic Stainless Steel Pipes
YUHONG Group offers ASTM A312/ASME SA312 TP310H / TP310S SMLS austenitic stainless steel pipes with high quality which generally are used in heat exchangers, boilers, and other high-temperature application.
ASTM A312/ASME SA312 This specification covers seamless, straight-seam welded, and heavily cold worked welded austenitic stainless steel pipe intended for high-temperature and general corrosive service.
Advantages
1. Both TP310H and TP310S have excellent high-temperature strength, making them suitable for applications that require resistance to extreme heat such as in furnaces, radiant tubes, and heat exchangers.
2.These grades of stainless steel pipes offer good resistance to oxidation and corrosion in mildly corrosive environments. They are also resistant to sulfidation, which is important in applications involving sulfur-bearing gases.
3.TP310H and TP310S stainless steel pipes have high tensile strength, good yield strength, and excellent toughness, providing structural integrity and durability.
4. These grades of stainless steel have good weldability, allowing for easy fabrication and installation of pipes.
5.Due to their excellent resistance to high temperatures, corrosion, and oxidation, TP310H and TP310S stainless steel pipes have a long service life, reducing the need for frequent replacements or repairs.
Specifications
| Standard | ASTM A312/ASME SA312 |
| Name of Material | SMLS Pipes, Austenitic Stainless Steel |
| Keywordas | Heat exchanger/Boiler pipes/tubes; Seamless / Welded austenitic steel pipes,etc |
| Size | OD 1/8"-48" or required by clientes |
| Length | length ≤12mts in container or required by clients |
| Quantity | Feet,metres,or number of lengths |
Grade of ASTM A312/ ASME SA312 We Can Offer:
TP304,TP304L,TP304H,TP310S,TP310H,TP316L,TP316H,TP310S,TP310H,TP317,TP317L,TP321,TP321H,TP347,TP347H,TP904L,etc
Test Required
Transverse Tension Tests / Flattening Test / Flaring Test / Etching Tests / Hardness Test
Chemical Composition max%
| Grade | UNS | C | Mn | P | S | Si | Cr | Ni | Mo |
| TP310H | S31009 | 0.04-0.1 | 2 | 0.045 | 0.03 | 1 | 24.26 | 19-22 | / |
| TP310S | S31008 | 0.08 | 2 | 0.045 | 0.03 | 1 | 24-26 | 19-22 | 0.75 |
Annealing Requirements
| Grade | Heat Treating Temperature | Cooling/Testing Requirements |
| TP310H | 1900°F [1040°C] | Quenched in water or rapidly cooled by other means. |
Mechanical Property
| Grade | Yield Strength (Mpa) | Tensile Strength (Mpa) | Elongation (%) |
| TP310H / S | 205min | 515 min | 35 min |
Applications
Power Generation
Petrochemicals Industries
Gas Processing
Heavy-duty Applications
Chemical Processing
Marine Environments
Water Treartment Systems
Oil & Gas Industries
High Temperature Applications
Thermal Processing Equipment
